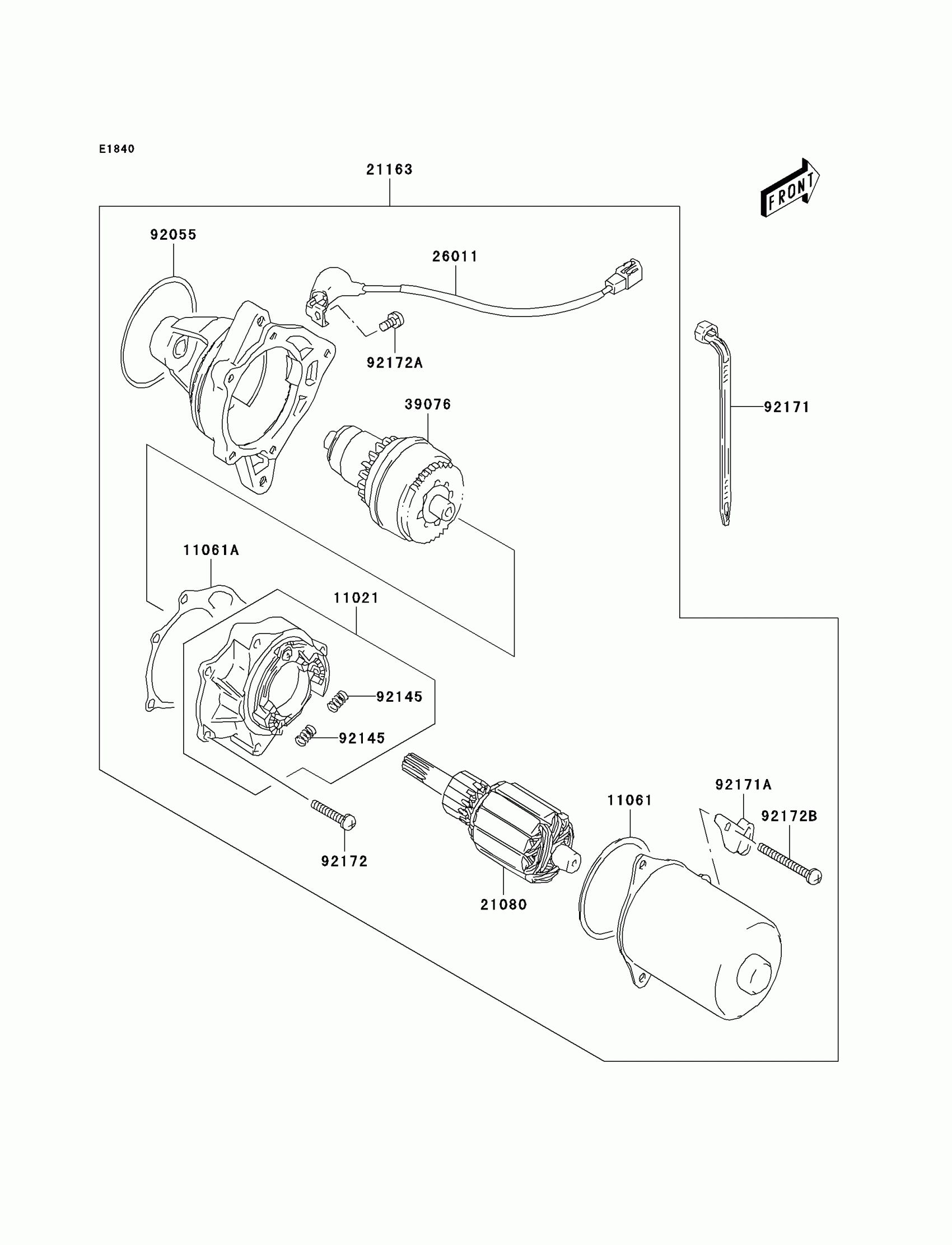

Kawasaki KFX80 Starter Motor Diagram

Description

Price

11021

CASE-ASSY

11021-S001

$77.39

11061

GASKET

11061-S063

$8.73

11061A

GASKET

11061-S068

$9.78

21080

ARMATURE

21080-S001

$138.06

21163

STARTER-ELECTRIC

21163-S003

$335.86

26011

WIRE-LEAD

26011-S009

$24.52

39076

LIMITER,PINION

39076-S003

$129.07

92055

RING-O

92055-S046

$4.37

92145

SPRING,BRUSH

92145-S077

$4.60

92171

CLAMP,L=125

92171-S014

$2.90

92171A

CLAMP,LEAD WIRE

92171-S078

$10.21

92172

SCREW

92172-S145

$1.90

92172A

SCREW

92172-S146

Unavailable

92172B

SCREW

92172-S147

$2.92
