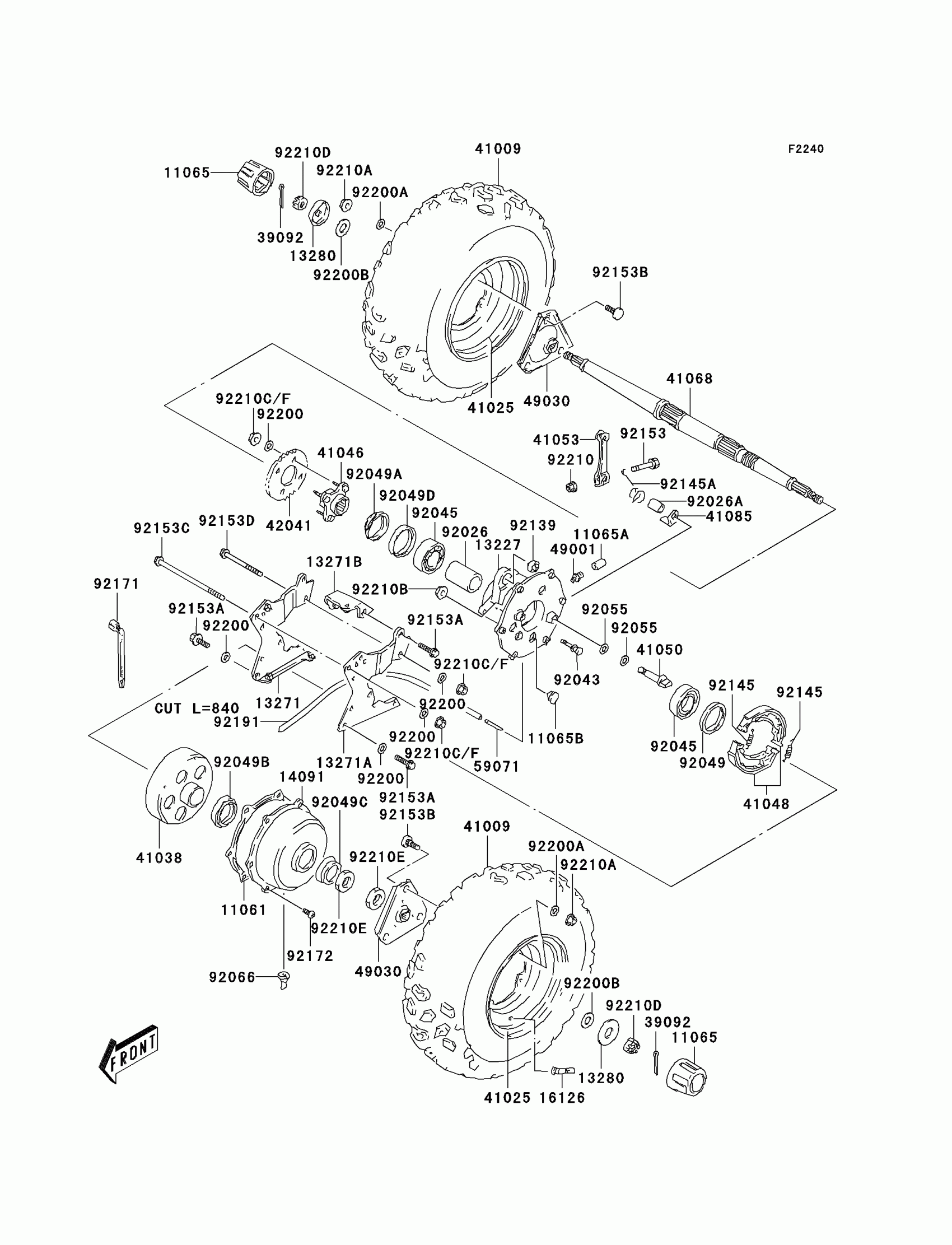

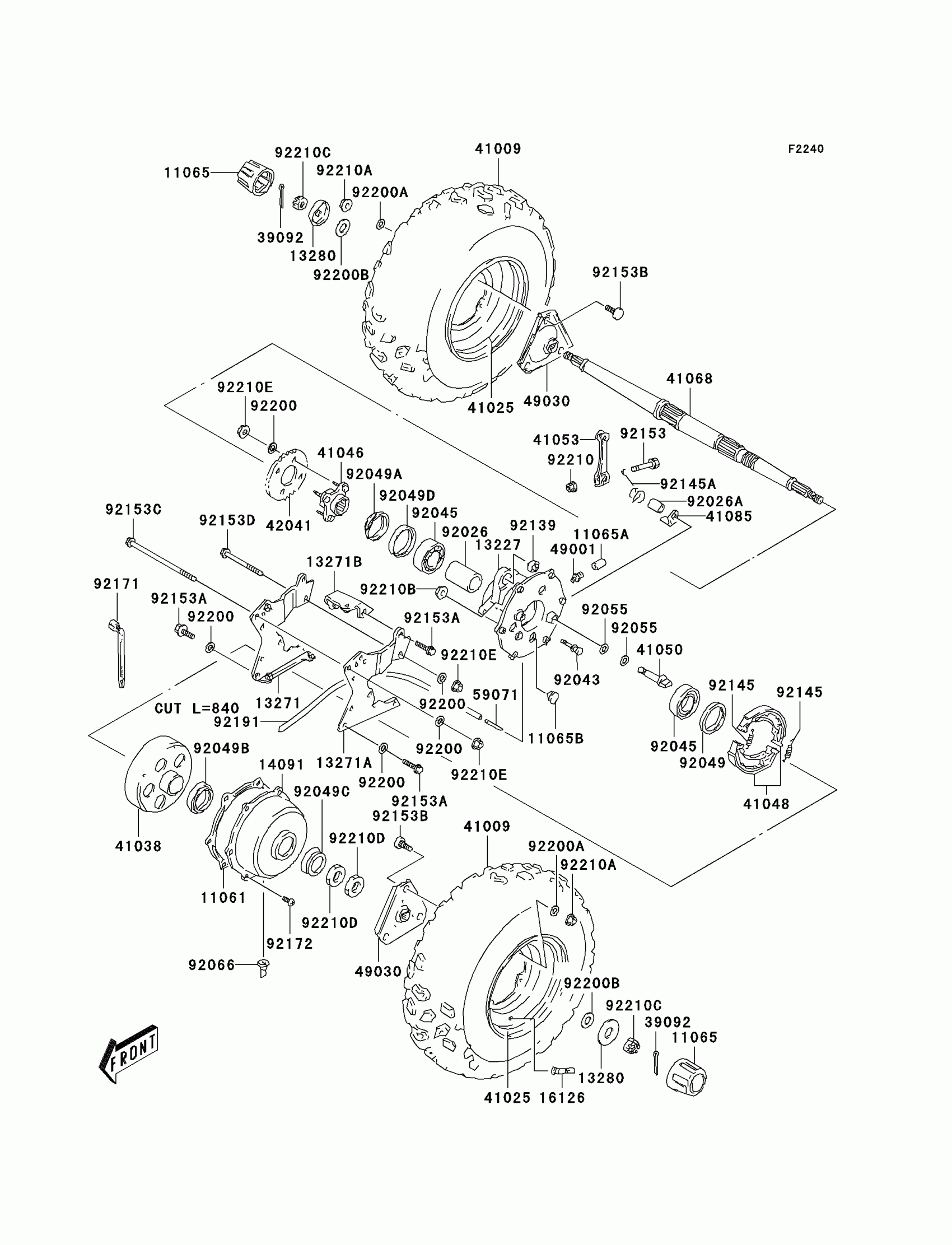

Kawasaki KFX80 Rear Hub Diagram

#

Description
Price

11061

GASKET,REAR BRAKE DRUM

11061-S067

$9.99

11065

CAP,WHEEL

11065-S022

$15.25

11065A

CAP,GREASE NIPPLE

11065-S028

$3.45

11065B

CAP,HOUSING SEAL

11065-S029

$2.51

13227

HOUSING,REAR AXLE

13227-S003

$161.86

13271

PLATE,REAR AXLE HOUSING,RH

13271-S043

$42.30

13271A

PLATE,REAR AXLE HOUSING,LH

13271-S044

$42.30

13271B

PLATE,MUFFLER

13271-S045

$21.27

13280

HOLDER,CENTER CAP

13280-S017

$3.90

14091

COVER,BRAKE DRUM

14091-S077

$61.00

16126

VALVE,WHEEL RIM

16126-S008

$9.56

39092

PIN-HAIR,REAR HUB

39092-S010

Unavailable

41009

TIRE,AT19X7-8(DUNLOP)

41009-S011

Unavailable

41025

RIM,FRONT WHEEL,B.SILVER

41025-S007-530

$222.38

41038

DRUM,REAR BRAKE

41038-S002

$129.07

41046

HOUSING-BEARING

41046-S003

$130.70

41048

SHOE-BRAKE

41048-S006

$39.53

41050

CAM-BRAKE,REAR BRAKE

41050-S006

$18.17

41053

LEVER-BRAKE CAM

41053-S007

$15.06

41068

AXLE,RR

41068-S008

$402.51

41085

INDICATOR

41085-S004

$3.64

42041

SPROCKET-HUB,22T

42041-S005

$41.61

49001

NIPPLE-GREASE

49001-S002

$4.28

49030

HUB,RR

49030-S002

$104.35

59071

JOINT,BREATHER HOSE

59071-S004

$7.16

92026

SPACER,REAR AXLE

92026-S074

$14.07

92026A

SPACER,REAR BRAKE CAM

92026-S077

$4.54

92043

PIN,REAR BRAKE

92043-S033

$8.34

92045

BEARING-BALL,REAR AXLE

92045-S044

Unavailable

92049

SEAL-OIL,REAR AXLE,LH

92049-S040

$15.09

92049A

SEAL-OIL,REAR AXLE,RH

92049-S042

$11.98

92049B

SEAL-OIL,REAR BRAKE DRUM

92049-S043

$19.93

92049C

SEAL-OIL,REAR BRAKE DRUM

92049-S044

$9.94

92049D

SEAL-OIL,REAR AXLE,RH

92049-S046

$21.22

92055

RING-O,BRAKE CAM

92055-S047

$2.51

92066

PLUG,DRAIN

92066-S025

$2.50

92139

BUSHING,REAR SHOCK

92139-S020

$12.91

92145

SPRING,BRAKE SHOE

92145-S084

$5.45

92145A

SPRING,BRAKE CAM LEVER RETURN

92145-S086

$4.59

92153

BOLT

92153-S068

$2.40

92153A

BOLT,BRUSH GUARD

92153-S220

$2.40

92153B

BOLT,REAR HUB

92153-S236

$4.22

92153C

BOLT,REAR AXLE HOUSING

92153-S238

$9.56

92153D

BOLT,REAR AXLE HOUSING

92153-S239

$9.23

92171

CLAMP,L=125

92171-S014

$2.90

92172

SCREW,BRAKE DRUM COVER

92172-S160

$1.92

92191

TUBE,BRAKE BREATHER

92191-S050

$21.22

92200

WASHER

92200-S028

$1.92

92200A

WASHER,MAGNETO

92200-S092

$1.92

92200B

WASHER,REAR HUB

92200-S121

$3.85

92210

NUT

92210-S004

$1.92

92210A

NUT

92210-S005

$1.92

92210B

NUT

92210-S026

$1.92

92210D

NUT,REAR HUB

92210-S089

$6.00

92210E

NUT,REAR AXLE

92210-S092

$6.47

92210F

NUT

92210-S094

$4.29
