2005 Kawasaki KFX80 OIL Pump/oil Filter Diagram

← All diagrams

Find the part on the OIL Pump/oil Filter diagram for your 2005 Kawasaki KFX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

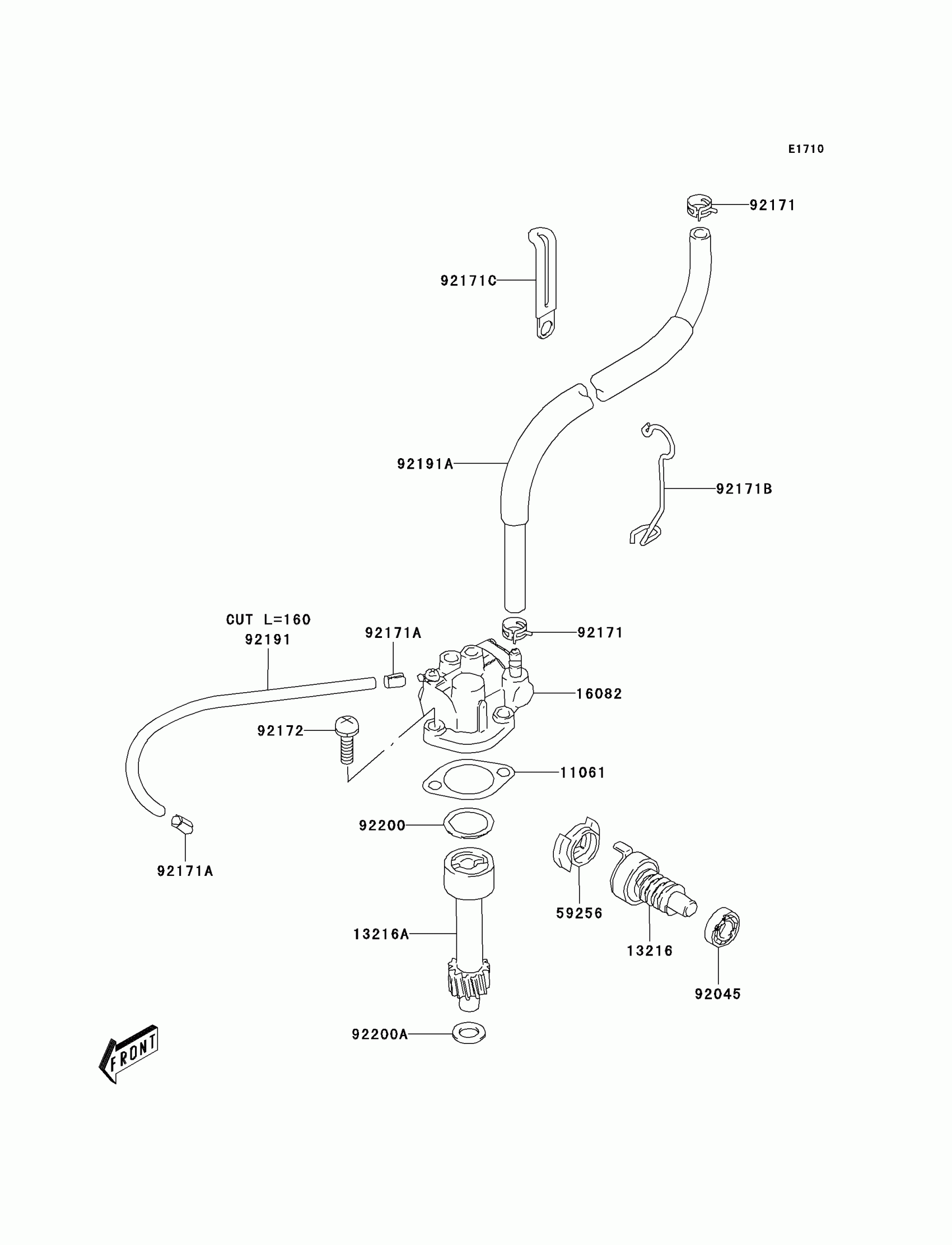

2005 Kawasaki KFX80 OIL Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,OIL PUMP

11061-S060

1
Out of stock

13216

GEAR-COMP,OIL PUMP DRIVE

13216-S005

1
Out of stock

13216A

GEAR-COMP,OIL PUMP DRIVEN

13216-S006

1
Out of stock

16082

PUMP-ASSY-OIL

16082-S003

1
Out of stock

59256

IMPELLER

59256-S002

1
Out of stock

92045

BEARING-BALL,OIL PUMP

92045-S040

1
Out of stock

92171

CLAMP

92171-S002

1
Out of stock

92171B

CLAMP,OIL HOSE

92171-S072

1
Out of stock

92171C

CLAMP,OIL HOSE

92171-S073

1
Out of stock

92171D

CLAMP,L=45

92171-S132

1
Out of stock

92172

SCREW,OIL PUMP

92172-S140

1
Out of stock

92191

TUBE,BREATHER

92191-S039

1
Out of stock

92191A

TUBE,OIL

92191-S048

1
Out of stock

92200

WASHER

92200-S062

1
Out of stock

92200A

WASHER,OIL PUMP DRIVEN

92200-S111

1
Out of stock
