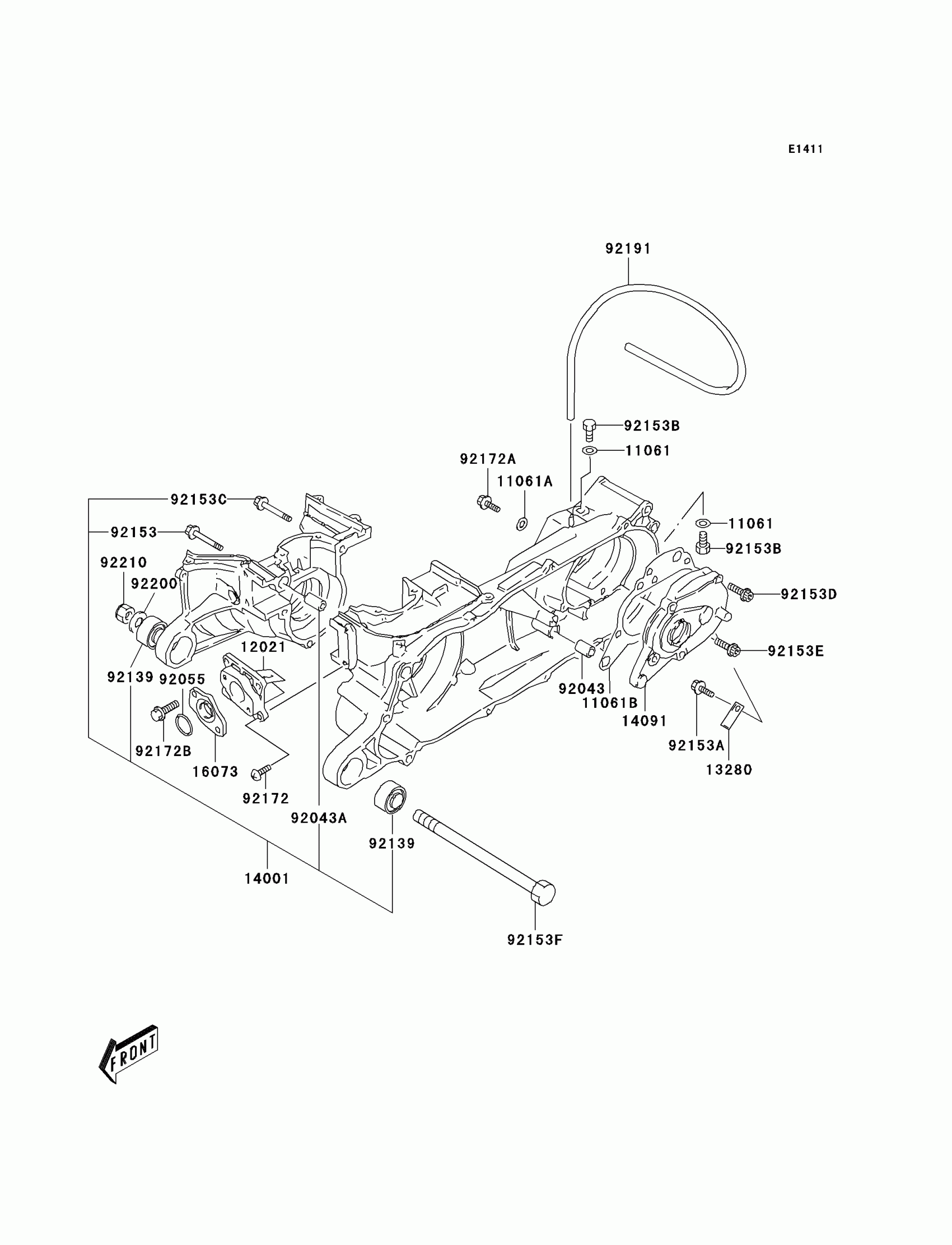

Kawasaki KFX80 Crankcase Diagram

#

Description
Price

11061

GASKET,8.2X14X1

11061-S004

Unavailable

11061A

GASKET

11061-S045

$1.28

11061B

GASKET,GEAR BOX COVER

11061-S054

$11.58

12021

VALVE-ASSY-REED

12021-S001

$73.16

13280

HOLDER,GEAR BOX

13280-S007

$15.69

14001

SET-CRANKCASE

14001-S003

Unavailable

14091

COVER,GEAR BOX

14091-S073

Unavailable

16073

INSULATOR,CARBURETOR

16073-S001

$7.10

92043

PIN

92043-S002

$1.81

92043A

PIN

92043-S003

$1.87

92055

RING-O,CARBURETOR INSULATOR

92055-S042

$2.07

92139

BUSHING,ENGINE MTG

92139-S016

$18.47

92153

BOLT

92153-S008

Unavailable

92153A

BOLT

92153-S073

$1.64

92153B

BOLT

92153-S108

$1.98

92153C

BOLT

92153-S128

$1.98

92153D

BOLT,CLUTCH COVER

92153-S210

Unavailable

92153E

BOLT,GEAR BOX COVER

92153-S211

Unavailable

92153F

BOLT,ENGINE MTG

92153-S212

$25.20

92172

SCREW

92172-S008

$1.64

92172A

SCREW,OIL LEVEL

92172-S123

$1.46

92172B

SCREW,CARBURETOR

92172-S136

$2.58

92191

TUBE,FUEL TANK BREATHER

92191-S028

$7.30

92200

WASHER,ENGTNE MTG

92200-S104

$2.27

92210

NUT,ENGINE MTG

92210-S078

$4.03
