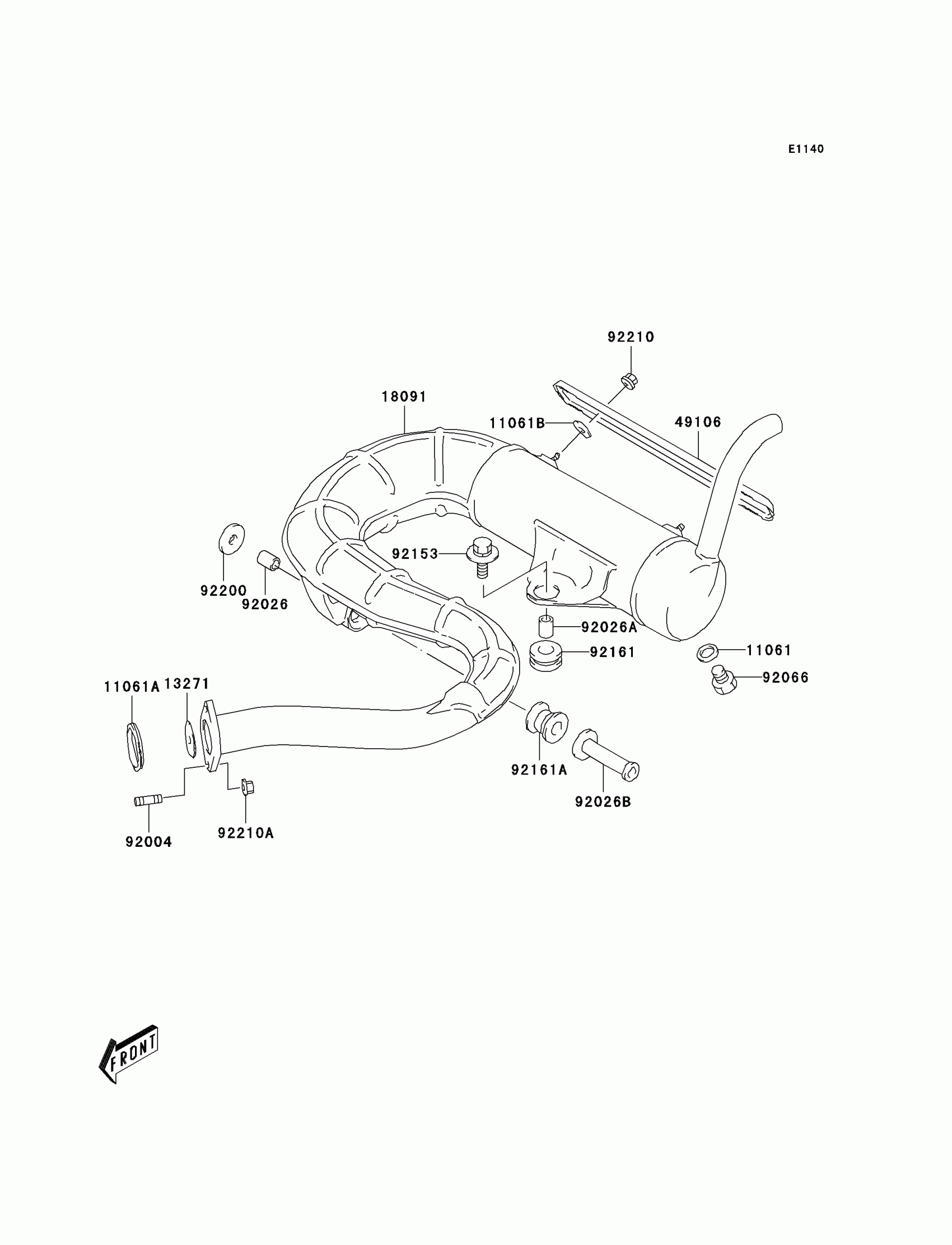

Kawasaki KFX80 Muffler(s) Diagram

Description

Price

11061

GASKET,12X16X2

11061-S005

$2.09

11061A

GASKET,EXHAUST PIPE

11061-S058

$10.81

11061B

GASKET,MUFFER COVER

11061-S059

$3.64

13271

PLATE,EXHAUST PIPE

13271-S039

$4.39

18091

BODY-COMP-MUFFLER

18091-S002

$330.48

49106

COVER-MUFFLER

49106-S004

$35.69

92004

STUD

92004-S002

$2.70

92026

SPACER,MUFFLER

92026-S067

$3.64

92026A

SPACER,MUFFLER

92026-S068

$4.60

92026B

SPACER,MUFFLER

92026-S069

$15.97

92066

PLUG,MUFFLER DRAIN

92066-S022

$3.34

92153

BOLT,MUFFLER SUPPORT

92153-S217

$3.14

92161

DAMPER

92161-S072

$4.16

92161A

DAMPER

92161-S125

$8.27

92200

WASHER,MUFFLER

92200-S110

$3.45

92210

NUT

92210-S054

$3.48

92210A

NUT,EXHAUST PIPE

92210-S081

$1.92
