Description

Price

11065

CAP,GREASE NIPPLE

11065-S028

$3.45

39092

PIN-HAIR,COTTER

39092-S005

$1.92

39111

ROD-TIE,STEERING

39111-S003

$19.87

39112

RODEND-TIE,RH

39112-S003

Unavailable

39112A

RODEND-TIE,LH

39112-S004

$71.91

39186

KNUCKLE,RH

39186-S003

$209.18

39186A

KNUCKLE,LH

39186-S004

$209.18

49001

NIPPLE-GREASE

49001-S002

$4.28

92026

SPACER

92026-S060

$19.22

92093

SEAL,KNUCKLE ARM DUST

92093-S017

$5.15

92139

BUSHING

92139-S013

$22.22

92153

BOLT,KNUCKLE ARM

92153-S202

$10.61

92200

WASHER,STEERING SHAFT,LWR

92200-S096

$4.10

92200A

WASHER,ROD-END

92200-S097

$2.34

92200B

WASHER,10.5X25X3.2

92200-S280

Unavailable

92210

NUT

92210-S031

$3.34

92210A

NUT,STEERING SHAFT

92210-S071

Unavailable

92210B

NUT,TIE-ROD

92210-S072

$1.68

92210C

NUT,TIE-ROD

92210-S073

Unavailable

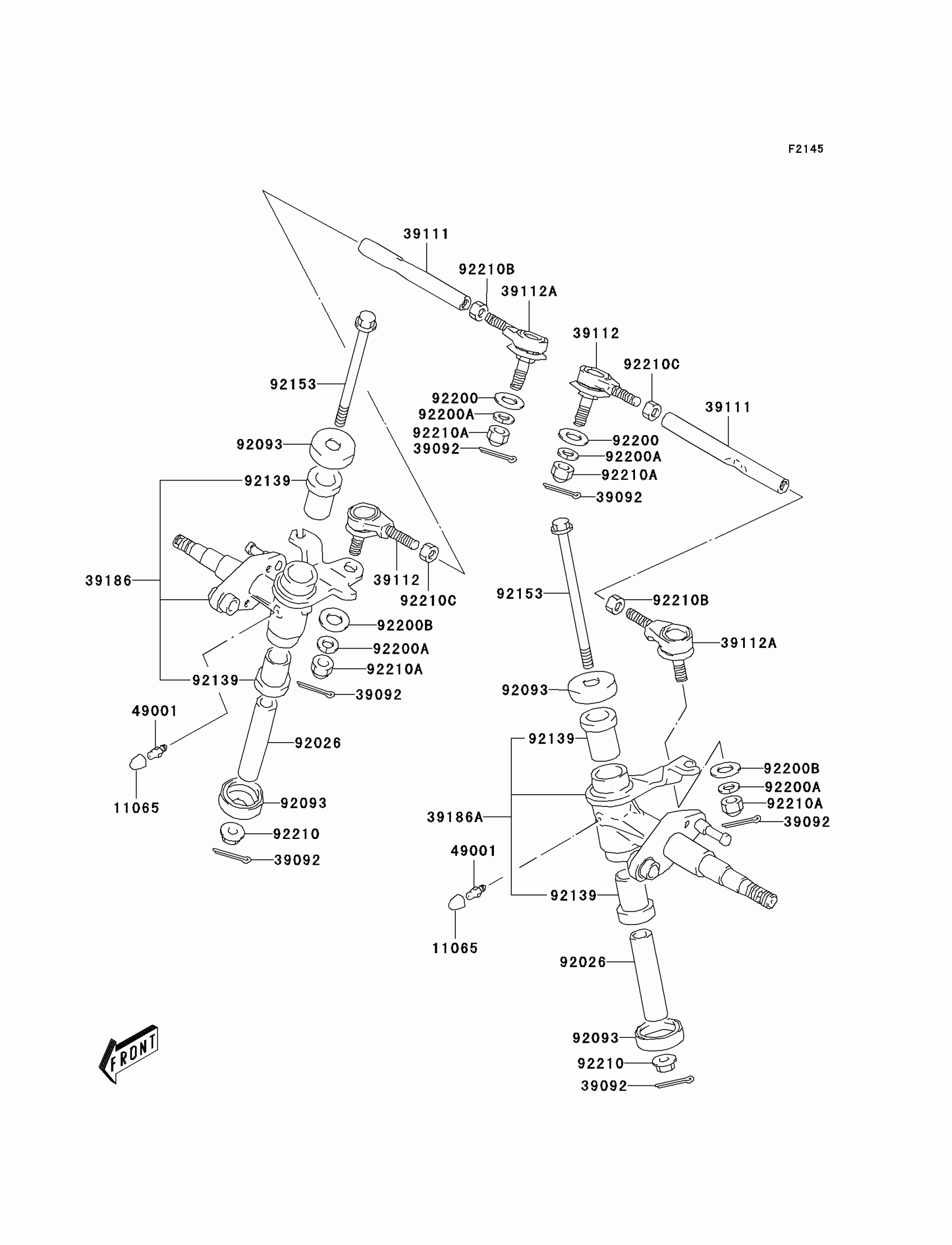

Kawasaki KFX80 Knuckle Arm Diagram

CAP,GREASE NIPPLE

PIN-HAIR,COTTER

ROD-TIE,STEERING

RODEND-TIE,RH

RODEND-TIE,LH

KNUCKLE,RH

KNUCKLE,LH

NIPPLE-GREASE

SPACER

SEAL,KNUCKLE ARM DUST

BUSHING

BOLT,KNUCKLE ARM

WASHER,STEERING SHAFT,LWR

WASHER,ROD-END

WASHER,10.5X25X3.2

NUT

NUT,STEERING SHAFT

NUT,TIE-ROD

NUT,TIE-ROD
