Description

Price

11053

BRACKET,BRAKE CABLE

11053-S004

$12.91

11061

GASKET,14X20X1.5

11061-S065

$2.53

11061A

GASKET,THROTTLE CASE

11061-S066

Unavailable

32099

CASE,THROTTLE

32099-S009

$28.70

39075

LEVER-THROTTLE

39075-S002

$15.97

46075

GRIP,HANDLE,BLACK

46075-S005-504

$17.43

46076

LEVER-ASSY-GRIP,FRONT BRAKE

46076-S011

$68.04

46091

HOUSING-ASSY-CONTROL

46091-S004

Unavailable

46092

LEVER-GRIP,FRONT BRAKE

46092-S009

$13.64

59101

REEL,THROTTLE CABLE

59101-S005

$3.90

92026

SPACER

92026-S072

$3.45

92145

SPRING,THROTTLE LEVER

92145-S081

$2.76

92153

BOLT

92153-S012

$1.92

92153A

BOLT

92153-S198

$7.18

92153B

BOLT

92153-S226

$3.28

92171

CLAMP,L=120

92171-S035

$4.10

92172

SCREW

92172-S134

$5.66

92172A

SCREW

92172-S150

$1.92

92172B

SCREW

92172-S155

$1.74

92172C

SCREW

92172-S156

$1.75

92172D

SCREW

92172-S157

$1.92

92210

NUT

92210-S024

Unavailable

92210A

NUT,CABLE ADJUSTER LOCK

92210-S070

$2.79

92210B

NUT

92210-S087

$2.64

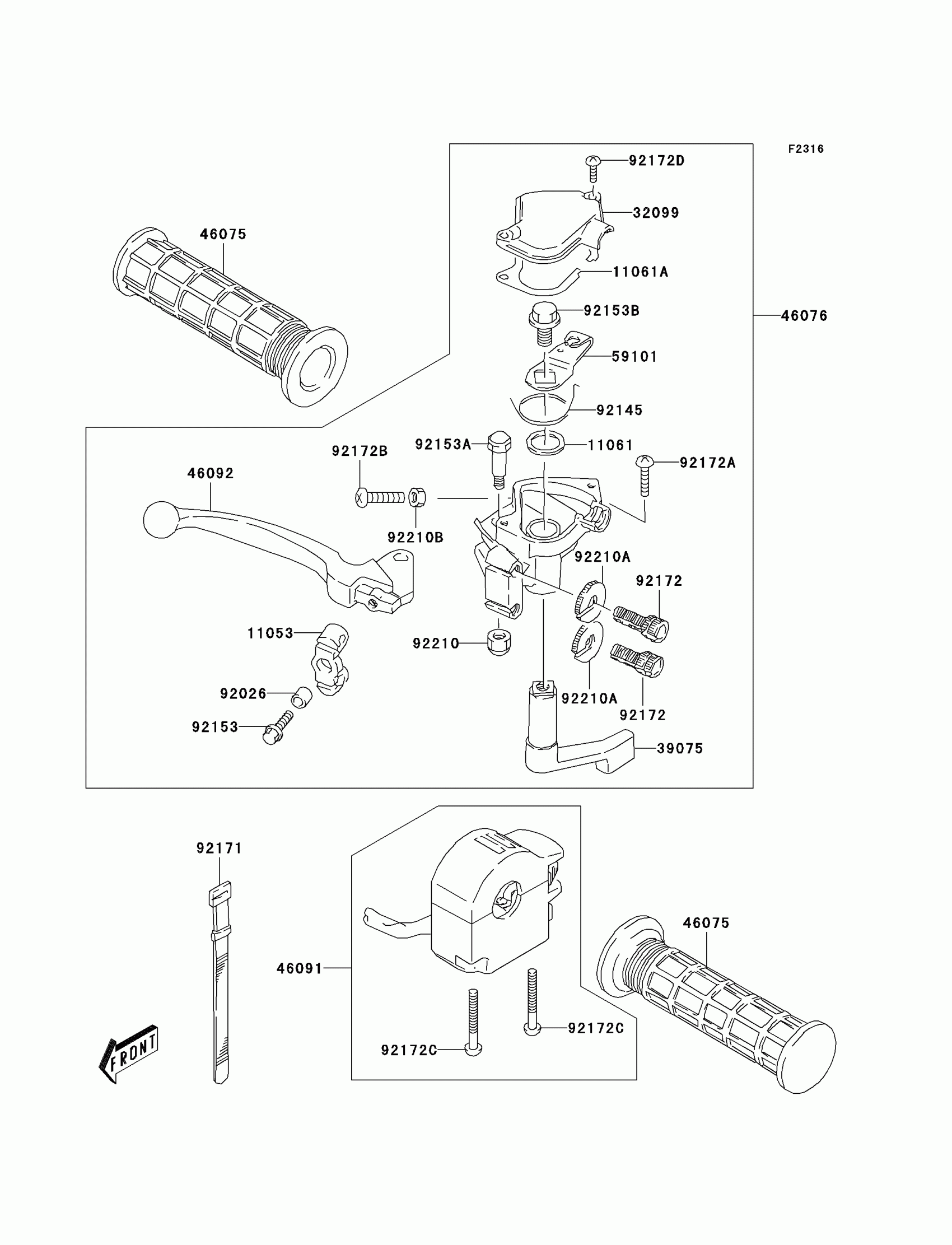

Kawasaki KFX80 Handle Lever Diagram

BRACKET,BRAKE CABLE

GASKET,14X20X1.5

GASKET,THROTTLE CASE

CASE,THROTTLE

LEVER-THROTTLE

GRIP,HANDLE,BLACK

LEVER-ASSY-GRIP,FRONT BRAKE

HOUSING-ASSY-CONTROL

LEVER-GRIP,FRONT BRAKE

REEL,THROTTLE CABLE

SPACER

SPRING,THROTTLE LEVER

BOLT

BOLT

BOLT

CLAMP,L=120

SCREW

SCREW

SCREW

SCREW

SCREW

NUT

NUT,CABLE ADJUSTER LOCK

NUT
