Description

Price

11065

CAP,WHEEL

11065-S022

$15.25

16126

VALVE,WHEEL RIM

16126-S008

$9.56

39092

PIN-HAIR

39092-S007

Unavailable

41009

TIRE,AT19X7-8(DUNLOP)

41009-S010

Unavailable

41025

RIM,FRONT WHEEL,B.SILVER

41025-S007-530

$222.38

41034

DRUM-ASSY,FR

41034-S004

$100.17

92026

SPACER,FRONT HUB BEARING

92026-S061

$4.61

92026A

SPACER,FRONT AXLE

92026-S062

$4.54

92045

BEARING-BALL,FRONT HUB

92045-S036

$28.57

92045A

BEARING-BALL,FRONT HUB

92045-S037

$32.51

92049A

SEAL-OIL,22X40X6

92049-S032

$8.84

92049B

SEAL-OIL,FRONT HUB BRG

92049-S063

$6.61

92153

BOLT,FRONT HUB

92153-S230

$3.45

92200

WASHER,MAGNETO

92200-S092

$1.92

92200A

WASHER,FRONT AXLE

92200-S099

$1.92

92210

NUT

92210-S005

$1.92

92210A

NUT,FRONT AXLE

92210-S075

$3.48

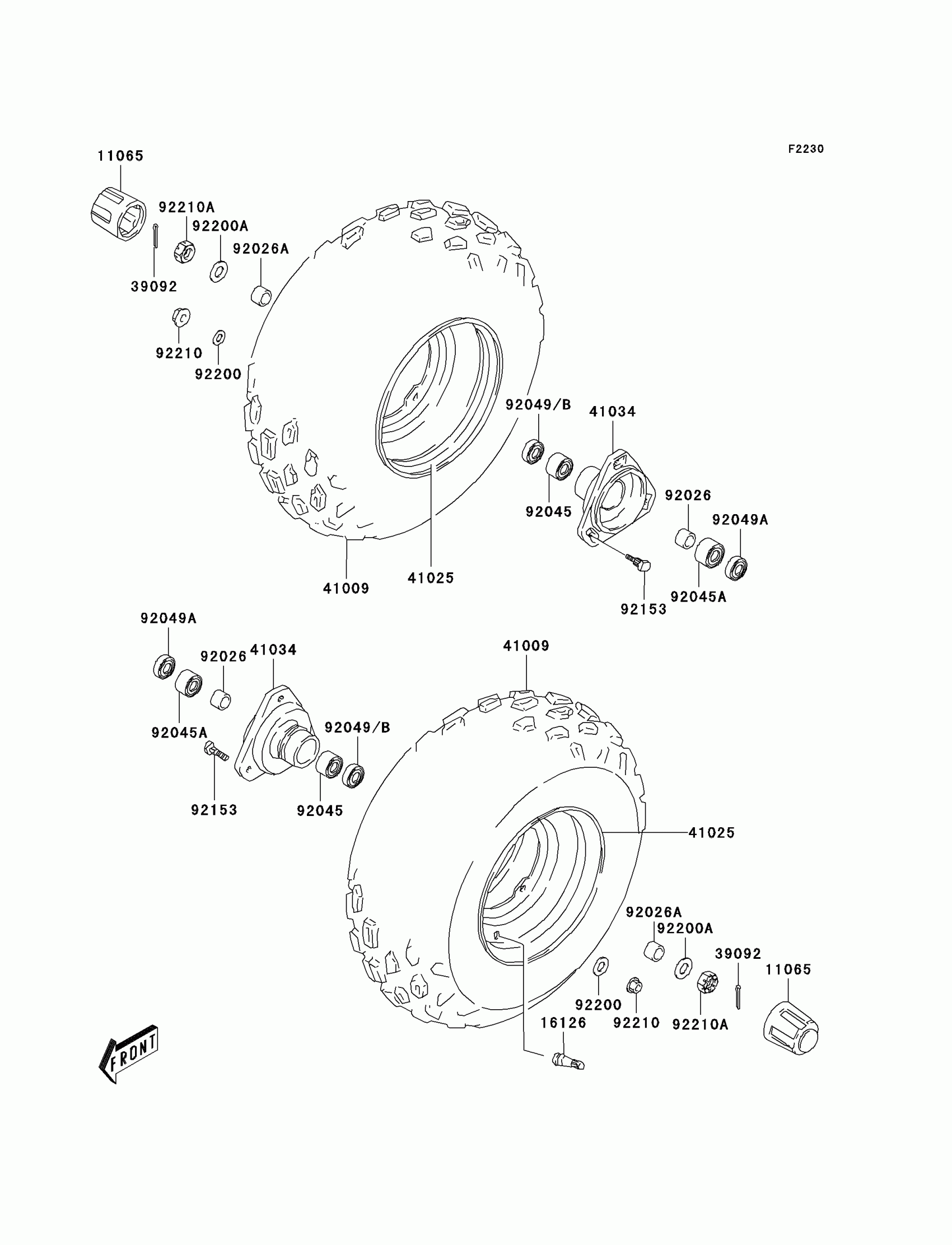

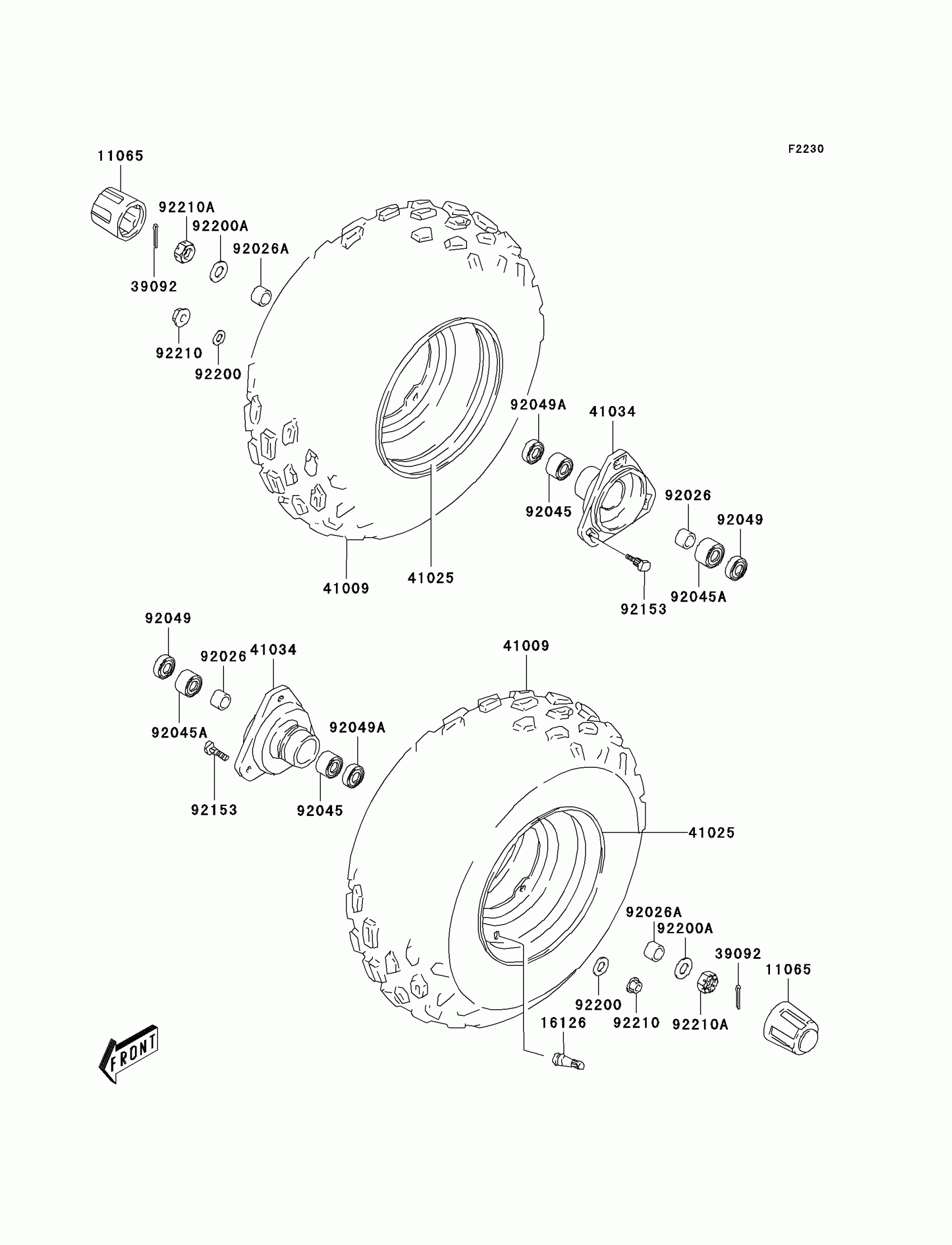

Kawasaki KFX80 Front Hub Diagram

CAP,WHEEL

VALVE,WHEEL RIM

PIN-HAIR

TIRE,AT19X7-8(DUNLOP)

RIM,FRONT WHEEL,B.SILVER

DRUM-ASSY,FR

SPACER,FRONT HUB BEARING

SPACER,FRONT AXLE

BEARING-BALL,FRONT HUB

BEARING-BALL,FRONT HUB

SEAL-OIL,22X40X6

SEAL-OIL,FRONT HUB BRG

BOLT,FRONT HUB

WASHER,MAGNETO

WASHER,FRONT AXLE

NUT

NUT,FRONT AXLE
