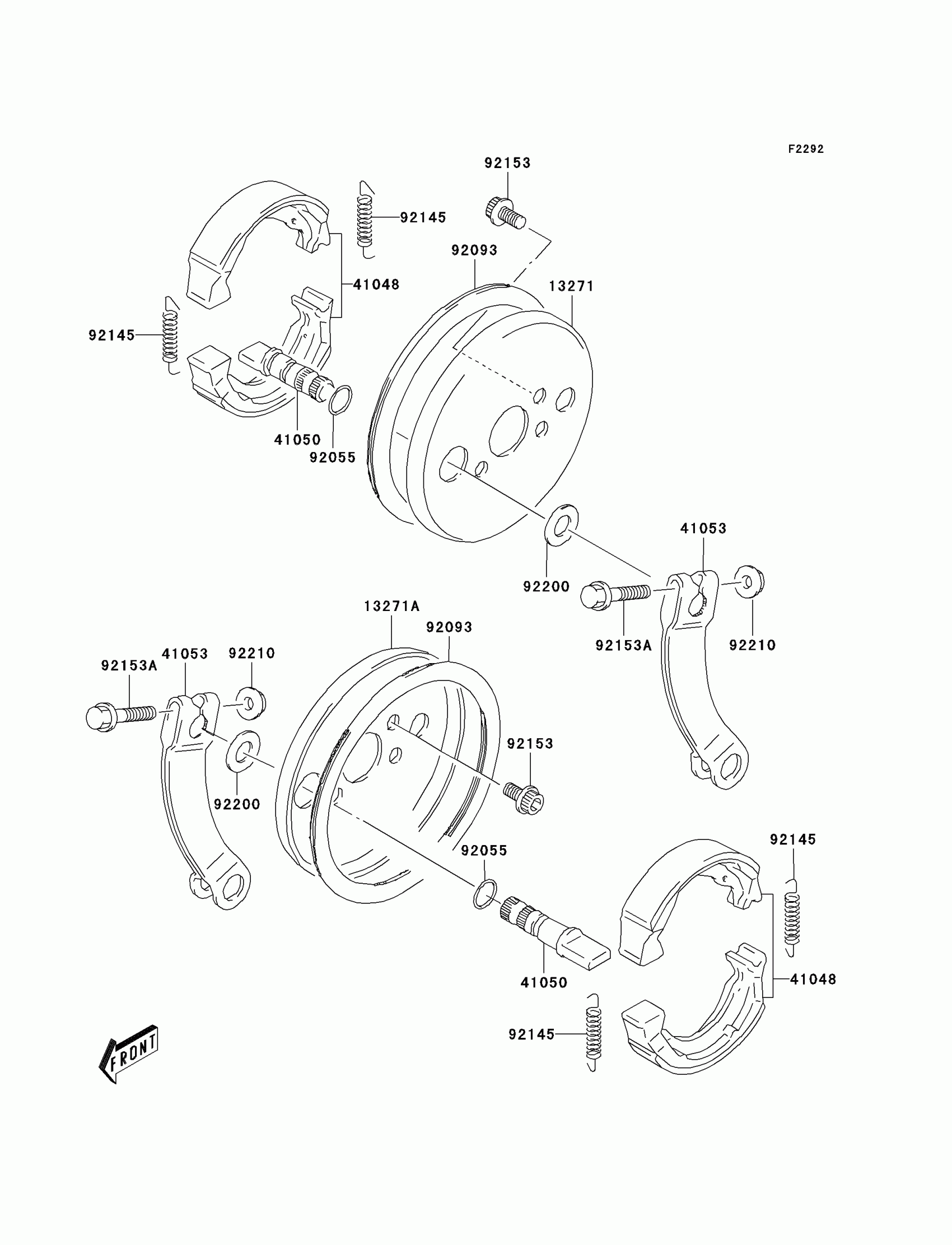

Kawasaki KFX80 Front Brake Diagram

Description

Price

13271

PLATE,FRONT BRAKE,RH

13271-S041

$19.22

13271A

PLATE,FRONT BRAKE,LH

13271-S042

$19.22

41048

SHOE-BRAKE

41048-S004

$27.64

41050

CAM-BRAKE

41050-S004

$15.41

41053

LEVER-BRAKE CAM

41053-S008

$13.31

92055

RING-O,BRAKE CAM DUST

92055-S040

$4.56

92093

SEAL,FRONT BRAKE DUST

92093-S021

$25.70

92145

SPRING,BRAKE SHOE

92145-S066

$2.53

92153

BOLT

92153-S017

Unavailable

92153A

BOLT,BRAKE CAM LEVER

92153-S203

$2.48

92200

WASHER,MAGNETO

92200-S092

$1.92

92210

NUT,BRAKE CAM LEVER

92210-S088

$1.92
