Partiron

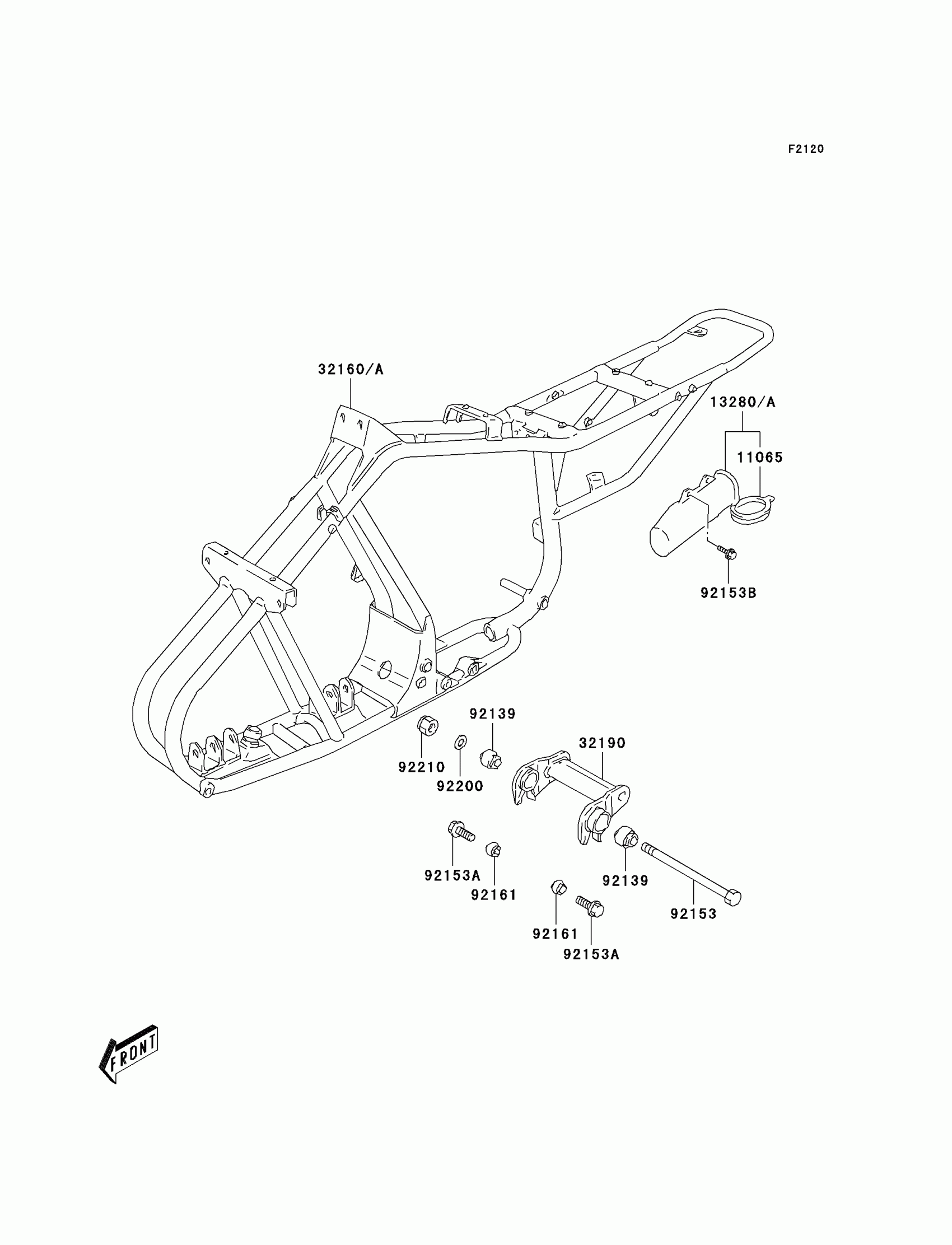

Kawasaki KFX80 Frame Diagram

#

Description
Price

11065

CAP,TOOL HOLDER

11065-S026

Unavailable

32190

BRACKET-ENGINE,CRANKCASE,BLACK

32190-S006-503

$83.93

92139

BUSHING,CRANKCASE BRACKET

92139-S018

$25.84

92153

BOLT,ENGINE MTG

92153-S212

$26.89

92153A

BOLT

92153-S218

$2.49

92153B

BOLT,TOOL HOLDER

92153-S219

$1.95

92161

DAMPER

92161-S075

$4.04

92200

WASHER,ENGTNE MTG

92200-S104

$2.79

92210

NUT,ENGINE MTG

92210-S078

$4.42

13280

HOLDER,TOOL

13280-S020

$52.61

13280A

HOLDER,TOOL

13280-S022

Unavailable

32160

FRAME-COMP,BLACK

32160-S006-503

Unavailable

32160A

FRAME-COMP,BLACK

32160-S008-503

Unavailable
