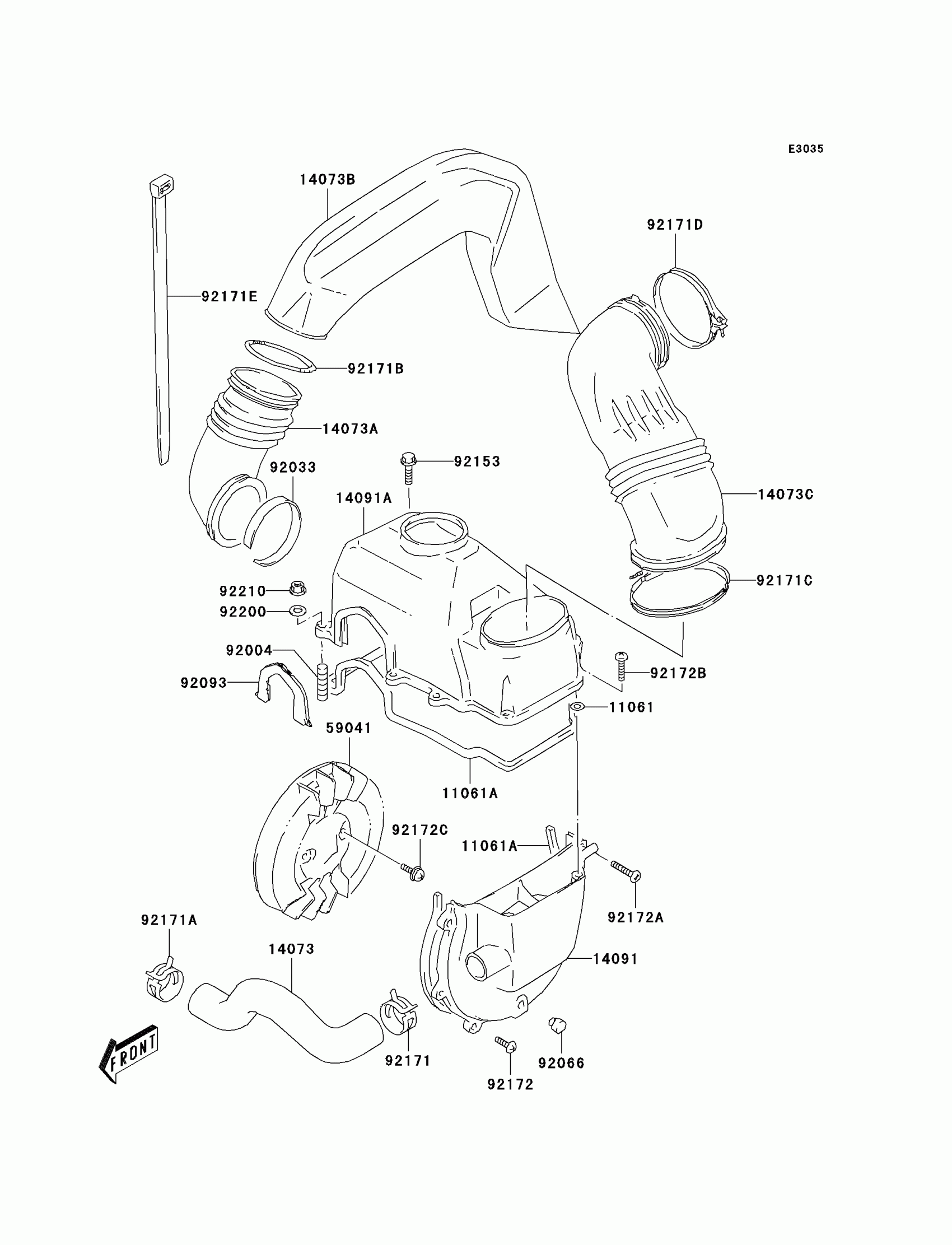

Kawasaki KFX80 Cooling Diagram
#
Description
Price
11061
GASKET,COOLING FAN COVER
11061-S061
$2.42
11061A
GASKET,COOLING FAN COVER
11061-S062
$7.18
14073
DUCT,BELT COOLING,OUT
14073-S007
$25.41
14073A
DUCT,COOLING,OUT
14073-S008
$25.41
14073B
DUCT,COOLING,OUT
14073-S009
$54.03
14073C
DUCT,COOLING,IN
14073-S010
$48.50
14091
COVER,COOLING FAN
14091-S074
$39.46
14091A
COVER,COOLING
14091-S075
$49.20
59041
FAN,COOLING
59041-S001
$21.27
92004
STUD,COOLING COWLING
92004-S009
$2.42
92033
RING-SNAP
92033-S031
$6.69
92066
PLUG,DRAIN
92066-S023
$3.14
92093
SEAL,COOLING COWLING
92093-S019
$29.57
92153
BOLT
92153-S012
$1.92
92171
CLAMP,BELT COOLING
92171-S066
$5.83
92171A
CLAMP,BELT COOLING
92171-S067
$5.87
92171B
CLAMP
92171-S074
$8.13
92171C
CLAMP
92171-S075
$4.22
92171D
CLAMP
92171-S076
$7.98
92171E
CLAMP
92171-S082
$3.45
92172
SCREW
92172-S055
$1.92
92172A
SCREW,COOLING FAN COVER
92172-S142
$1.92
92172B
SCREW,COOLING COWLING
92172-S143
$1.90
92172C
SCREW
92172-S162
$1.92
92200
WASHER
92200-S003
$1.92
92210
NUT
92210-S066
$2.79
