Description

Price

13107

SHAFT,COUNTER

13107-1436

$157.90

13107A

SHAFT,REVERSE,IDLE

13107-1437

Unavailable

13127

SHAFT-TRANSMISSION INPUT

13127-1304

Unavailable

13139

SHIFTER

13139-1096

Unavailable

13260

GEAR,INPUT REVERSE,12T

13260-1868

Unavailable

13260A

GEAR,DRIVEN REVERSE,16T

13260-1873

$115.72

13262

GEAR,INPUT HIGH,27T

13262-0002

$123.43

13262A

GEAR,DRIVEN HIGH,29T

13262-0015

$118.91

13262B

GEAR,OUTPUT DRIVE,20T

13262-1052

$123.43

13262C

GEAR,OUTPUT REVERSE,14T

13262-1053

$123.43

92026

SPACER,17.3X30X2.0

92026-1415

$8.05

92026A

SPACER,21.2X29X1.6

92026-1568

$7.98

92026B

SPACER,28X39X8

92026-1629

$16.41

92026C

SPACER,25X32X13

92026-1630

$13.79

92033

RING-SNAP,25.9X30.6X1.2

92033-1037

$4.65

92046

BEARING-NEEDLE,FWF-283317

92046-1278

$23.34

92046A

BEARING-NEEDLE,REVERSE GEAR

92046-1279

$20.02

92200

WASHER,28.5X34.0X1.5

92200-1240

$10.28

92200A

WASHER,20.3X33X2.0

92200-1351

$2.67

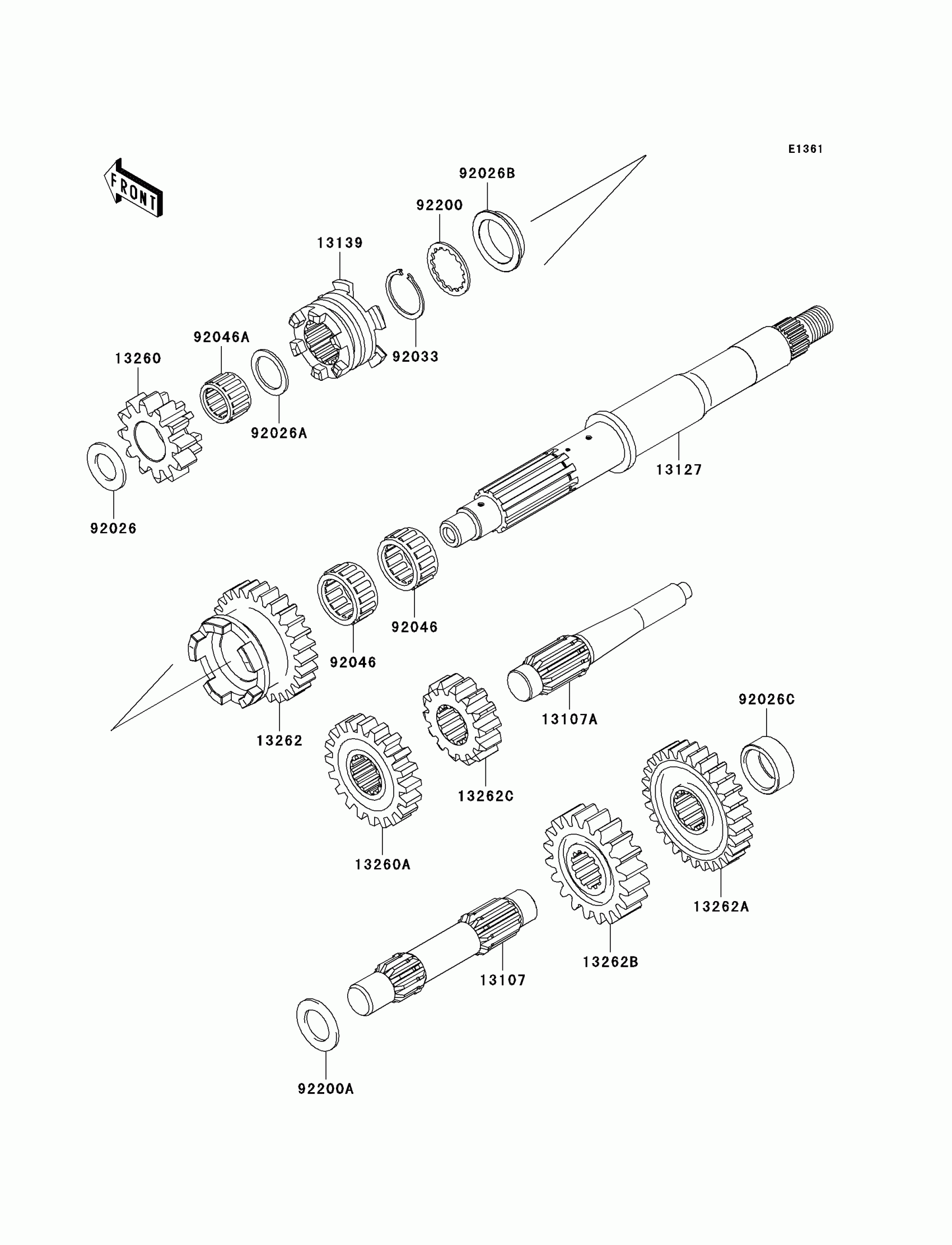

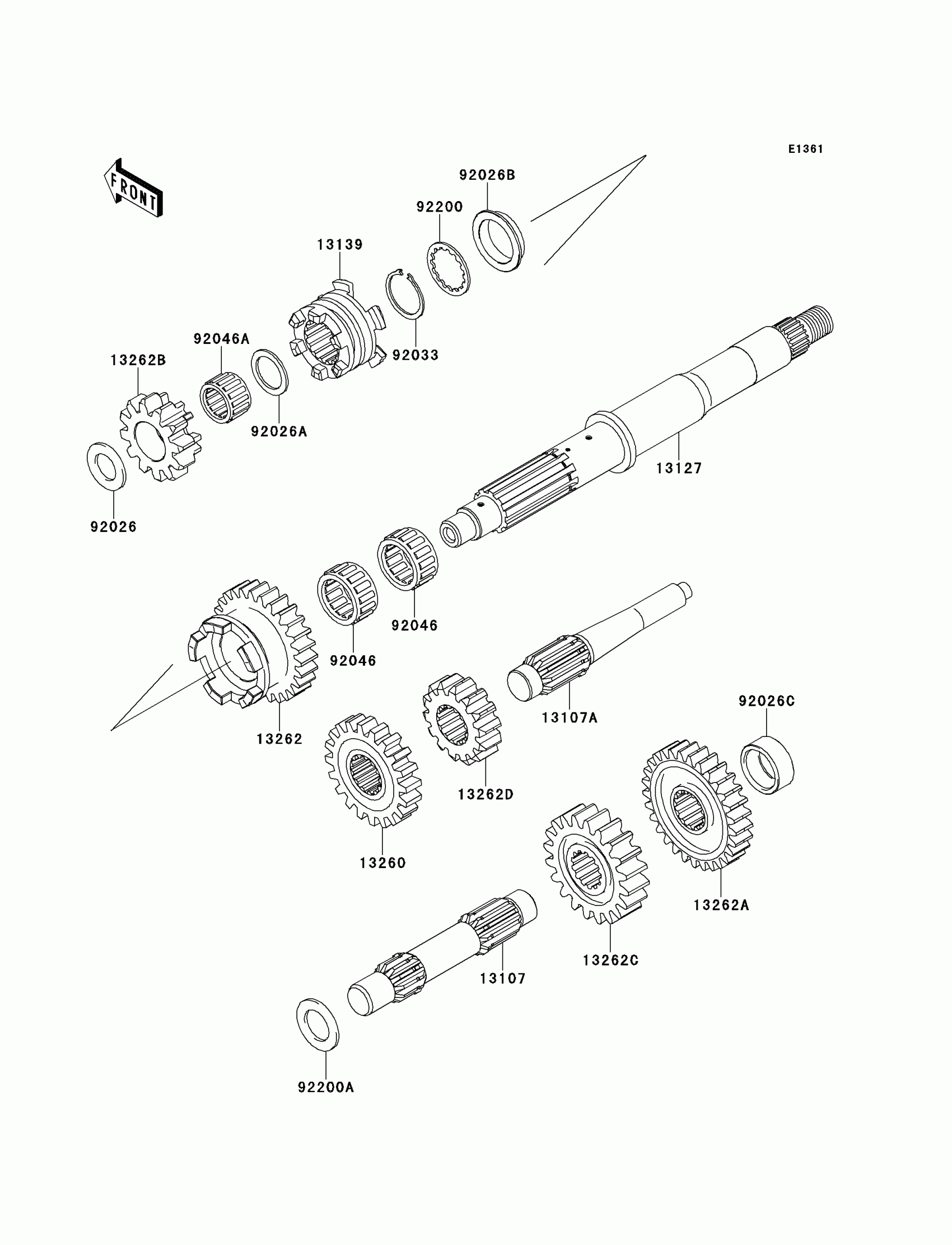

Kawasaki KFX700 Transmission Diagram

SHAFT,COUNTER

SHAFT,REVERSE,IDLE

SHAFT-TRANSMISSION INPUT

SHIFTER

GEAR,INPUT REVERSE,12T

GEAR,DRIVEN REVERSE,16T

GEAR,INPUT HIGH,27T

GEAR,DRIVEN HIGH,29T

GEAR,OUTPUT DRIVE,20T

GEAR,OUTPUT REVERSE,14T

SPACER,17.3X30X2.0

SPACER,21.2X29X1.6

SPACER,28X39X8

SPACER,25X32X13

RING-SNAP,25.9X30.6X1.2

BEARING-NEEDLE,FWF-283317

BEARING-NEEDLE,REVERSE GEAR

WASHER,28.5X34.0X1.5

WASHER,20.3X33X2.0
