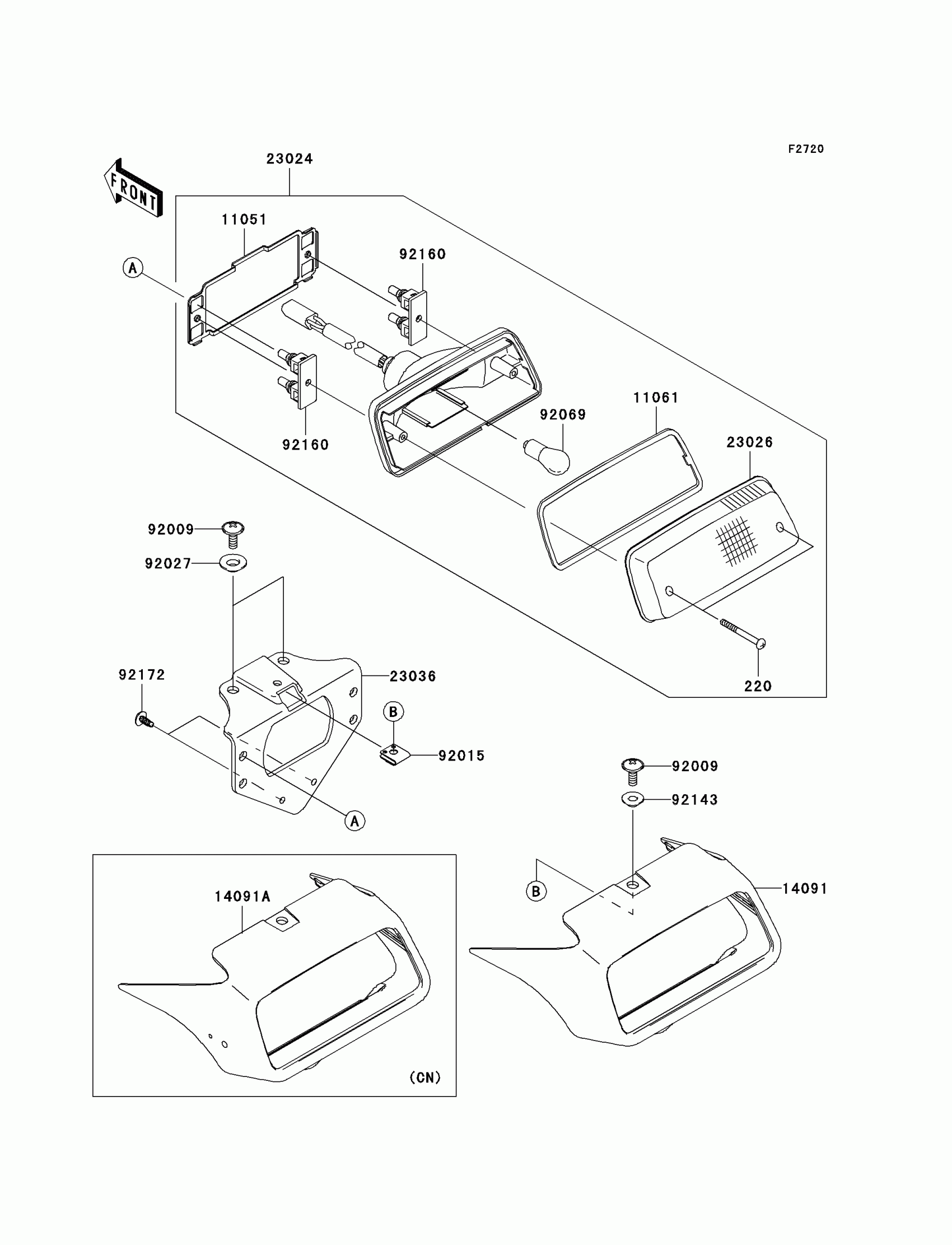

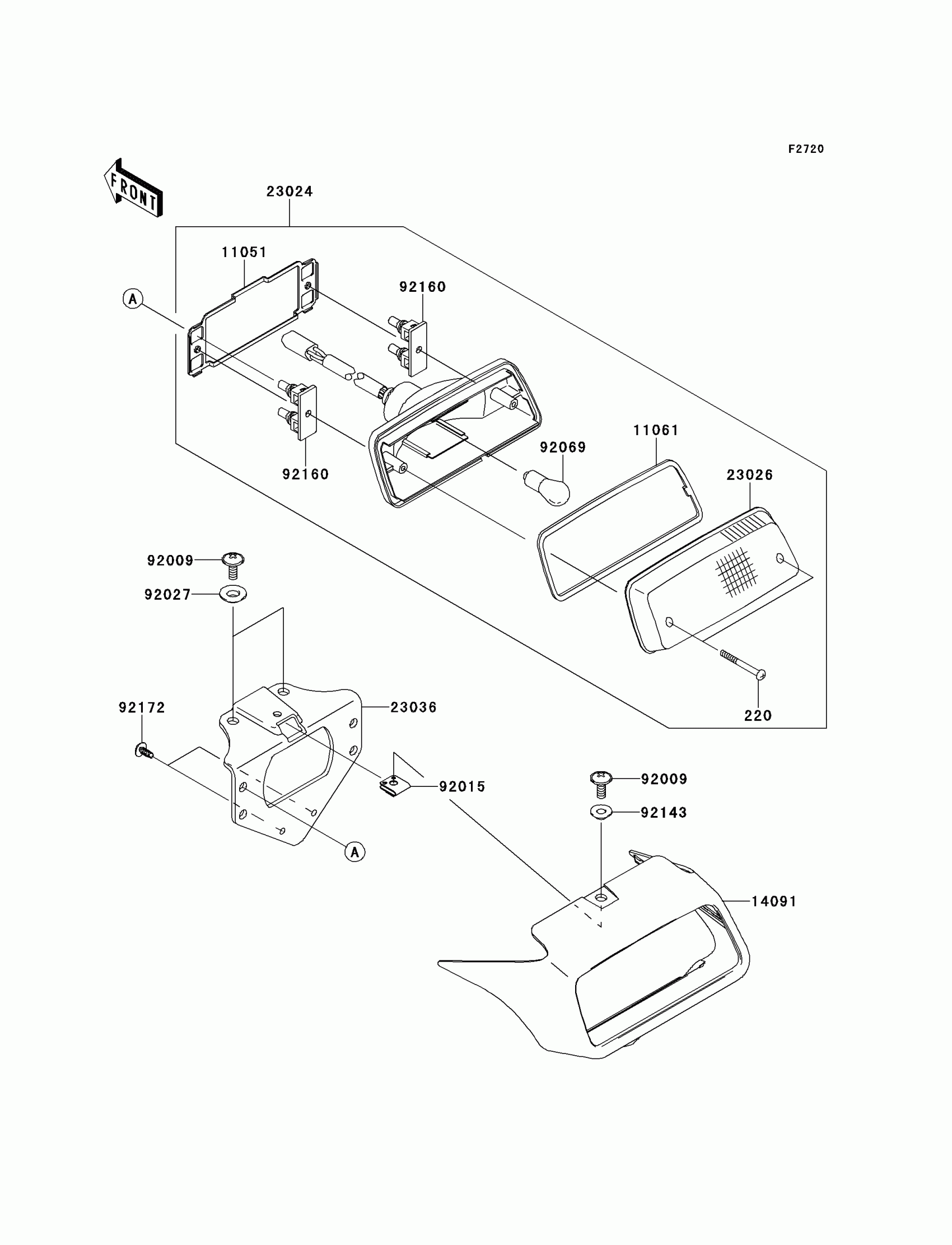

Kawasaki KFX700 Taillight(s) Diagram

Description

Price

220

SCREW-PAN-CROS,4X40

220AA0440

$3.67

11051

BRACKET,TAIL LAMP

11051-1870

$12.92

11061

GASKET,TAIL LAMP LENS

11061-0055

$4.96

14091

COVER,TAIL LAMP,F.BLACK

14091-0095-6Z

$19.37

23024

LAMP-ASSY-TAIL

23024-1130

Unavailable

23026

LENS,TAIL LAMP

23026-1230

$25.05

23036

BRACKET-TAIL LAMP

23036-0001

$12.34

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,CLAMP,6MM

92015-1678

$5.52

92027

COLLAR,L=4.7

92027-1964

$7.34

92069

BULB,12V 21/5W

92069-063

$9.31

92143

COLLAR

92143-1087

$4.31

92160

DAMPER,TAIL LAMP

92160-1053

$8.86

92172

SCREW,TAPPING,5X10

92172-1061

Unavailable
