Description

Price

14091

COVER,AIR CLEANER,L.GREEN

14091-0075-290

$33.82

14091A

COVER,SIDE,LH,F.BLACK

14091-0089-6Z

$19.37

14091B

COVER,SIDE,RH,F.BLACK

14091-0090-6Z

$19.37

49031

LATCH

49031-1060

Unavailable

53066

SEAT-ASSY,BLACK

53066-0003-MA

$411.21

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,LOCK,FLANGED,6MM

92015-1603

$4.69

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92077

KNOB

92077-1129

$4.94

92143

COLLAR

92143-1057

$5.00

92143A

COLLAR

92143-1087

$4.31

92145

SPRING,SEAT LATCH

92145-0022

$7.15

92152

COLLAR

92152-1346

$4.18

92161

DAMPER,SIDE COVER,LH

92161-0059

$10.05

92161A

DAMPER,SIDE COVER,RH

92161-0060

$10.05

92161B

DAMPER

92161-0061

$2.41

92161C

DAMPER

92161-0090

$2.55

92172

SCREW,6X19.5

92172-0062

$3.04

92200

WASHER

92200-1578

Unavailable

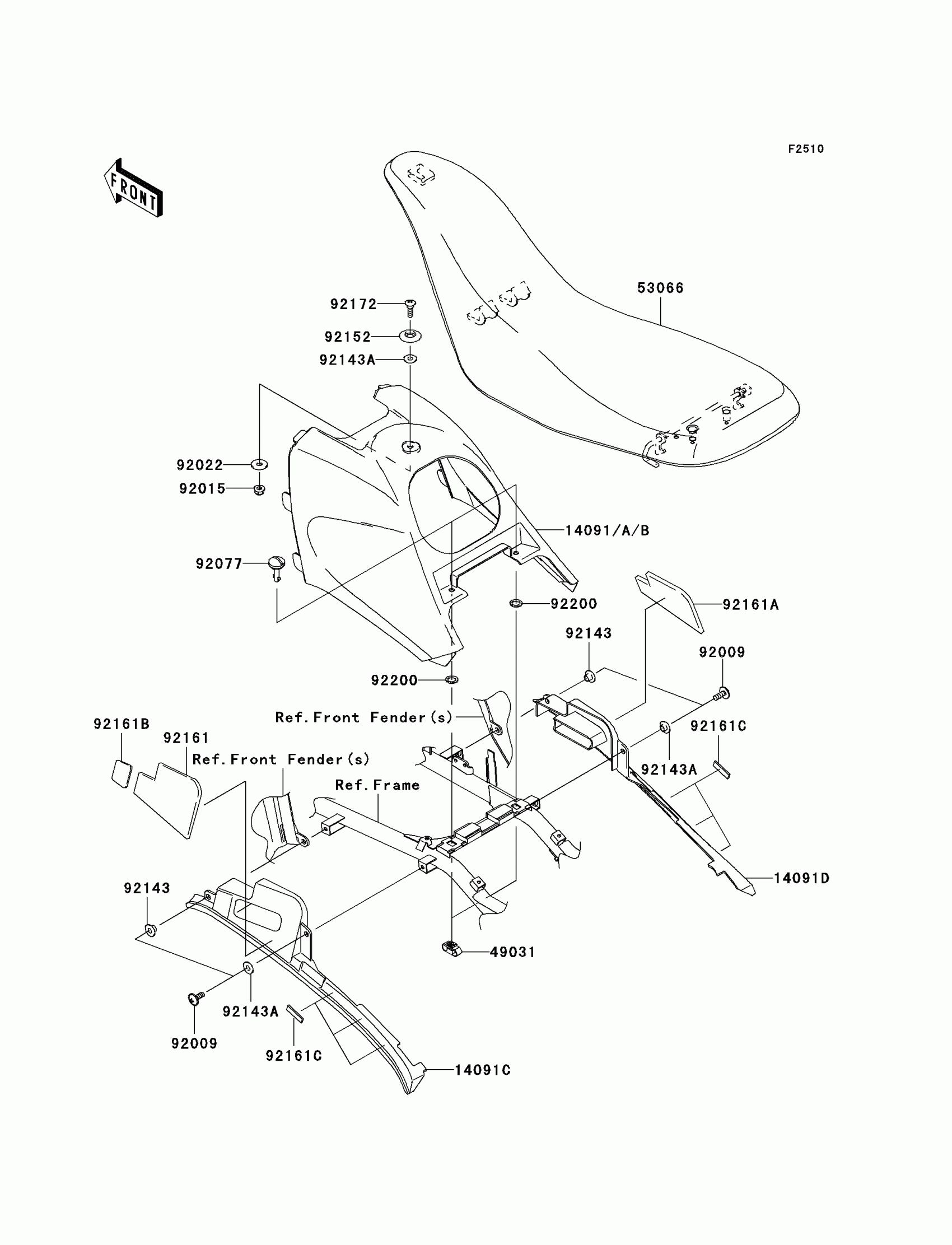

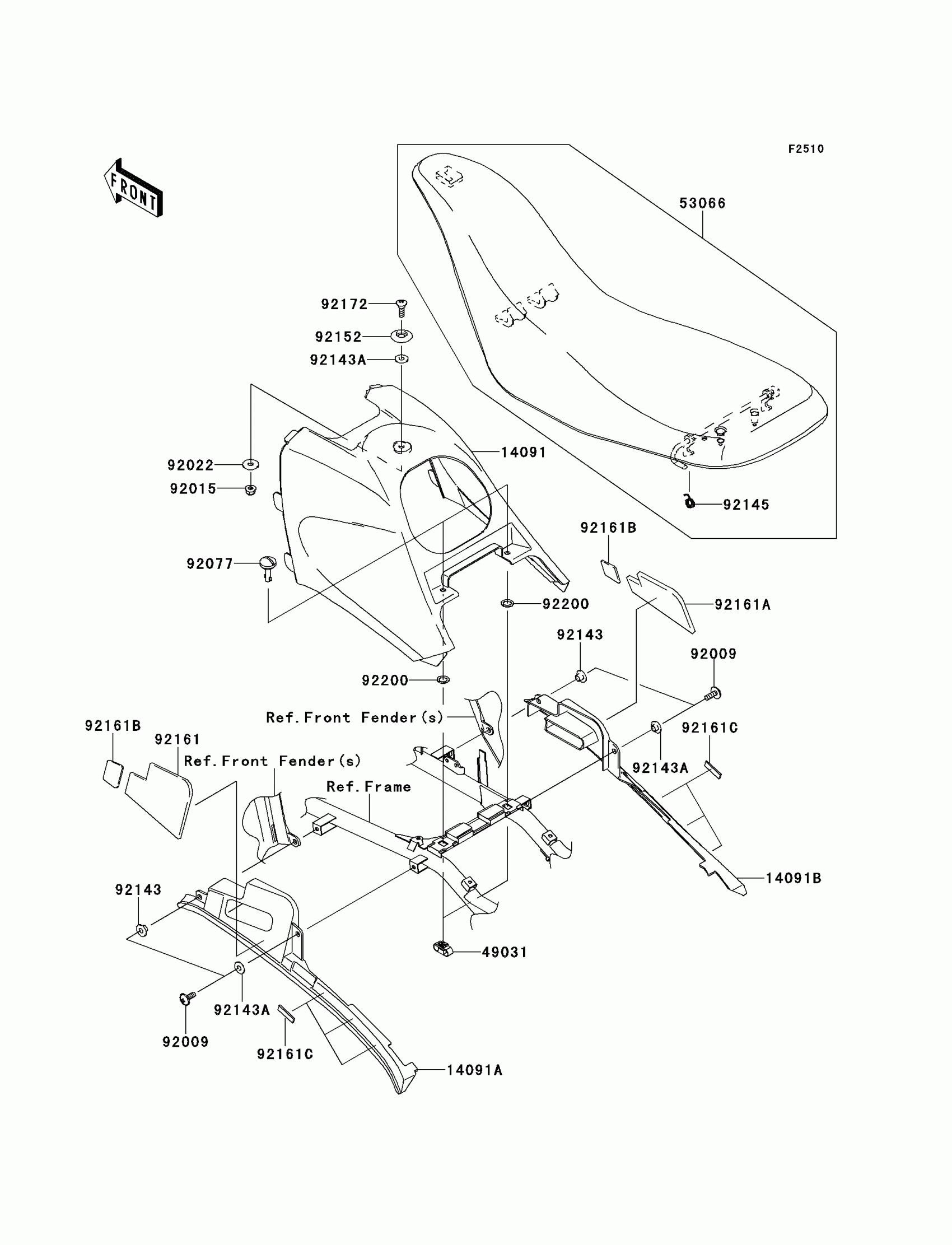

Kawasaki KFX700 Seat Diagram

COVER,AIR CLEANER,L.GREEN

COVER,SIDE,LH,F.BLACK

COVER,SIDE,RH,F.BLACK

LATCH

SEAT-ASSY,BLACK

SCREW,6X16

NUT,LOCK,FLANGED,6MM

WASHER,6.5X20X1.6

KNOB

COLLAR

COLLAR

SPRING,SEAT LATCH

COLLAR

DAMPER,SIDE COVER,LH

DAMPER,SIDE COVER,RH

DAMPER

DAMPER

SCREW,6X19.5

WASHER
