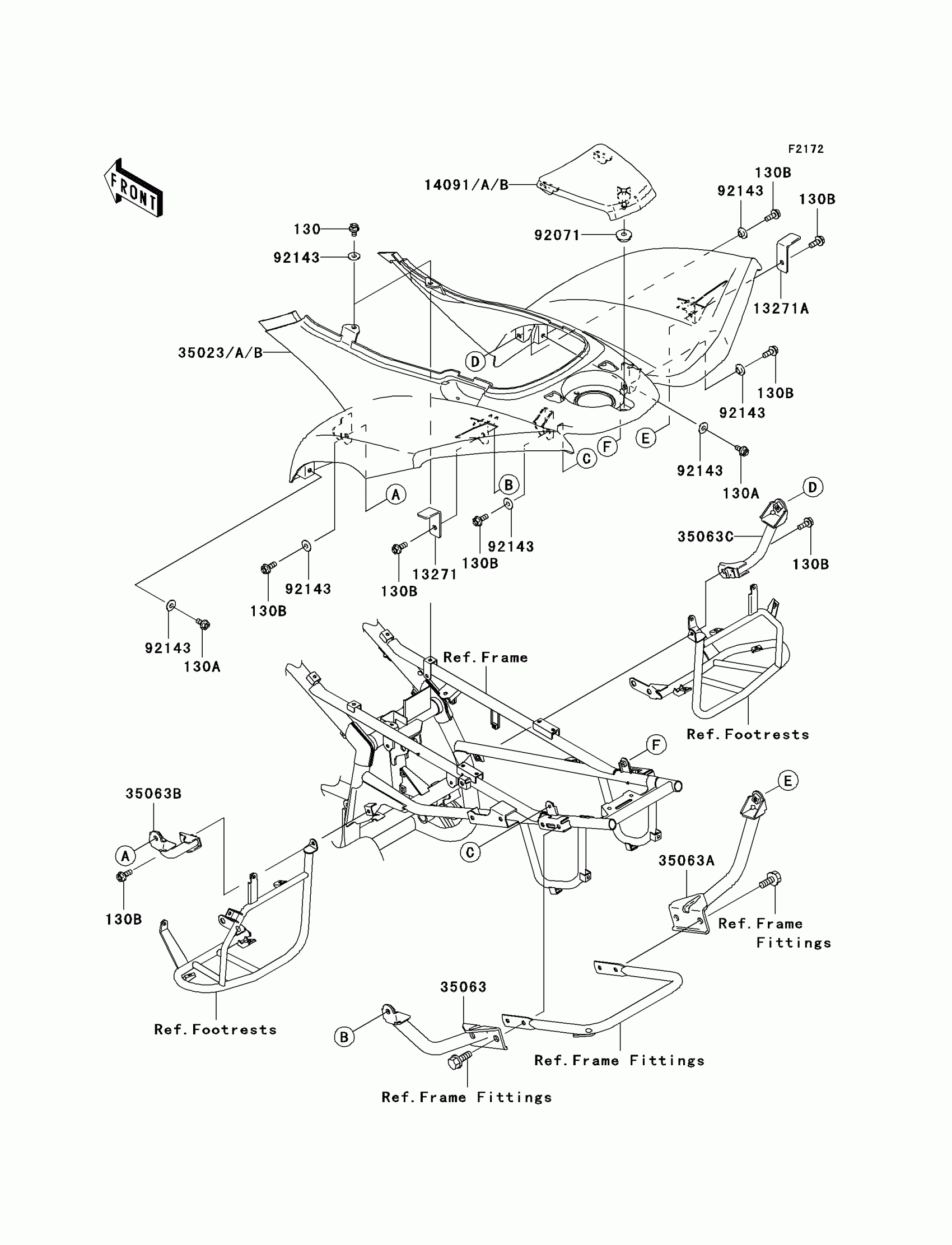

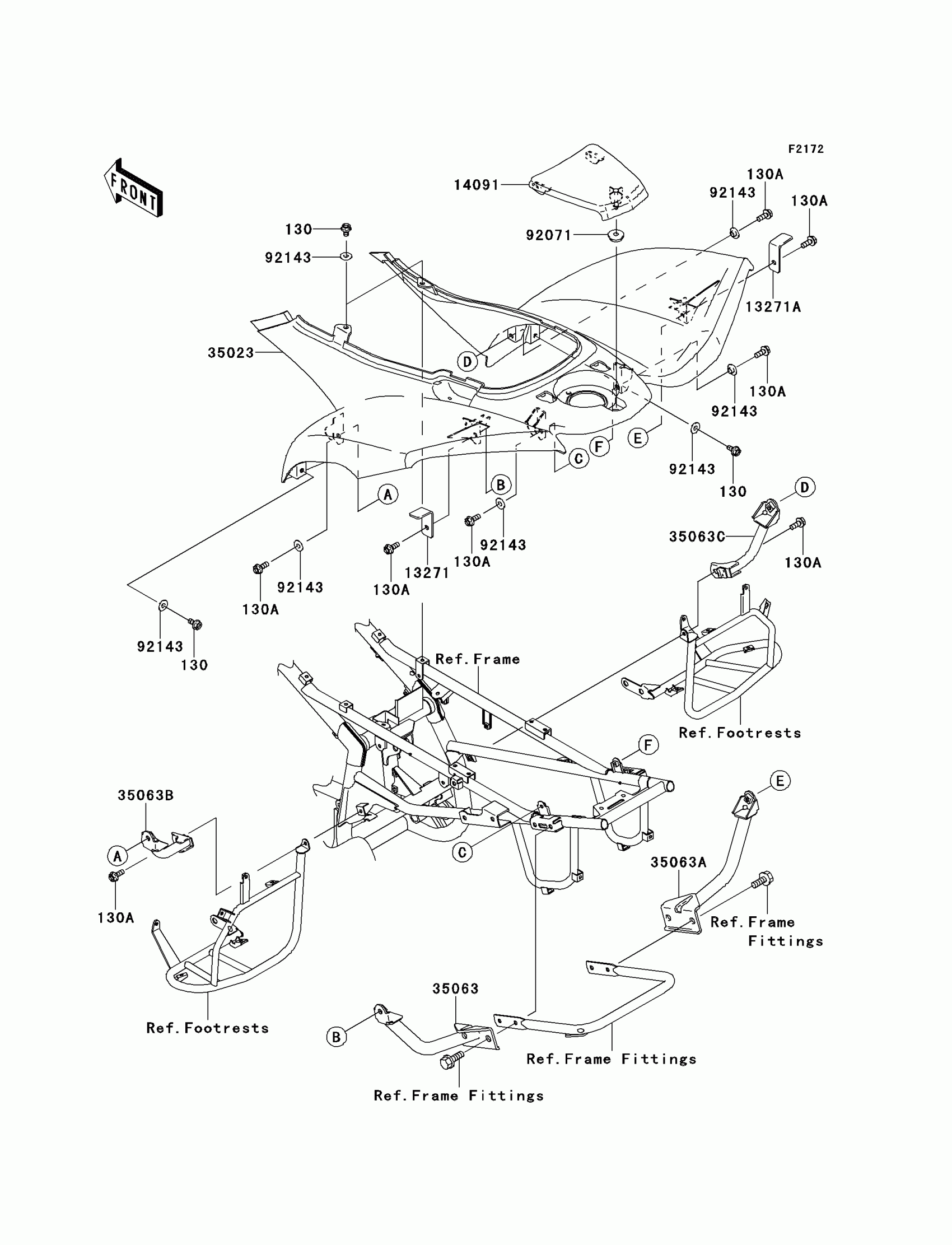

Kawasaki KFX700 Rear Fender(s) Diagram

Description

Price

130

BOLT-FLANGED

130J0610

$2.33

130A

BOLT-FLANGED,6X12

130J0612

$2.19

130B

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

13271

PLATE,RR FENDER,LH

13271-0126

$4.42

13271A

PLATE,RR FENDER,RH

13271-0127

$4.42

14091

COVER,TANK CAP,B.ORANGE

14091-0096-268

$35.64

14091A

COVER,TANK CAP,L.GREEN

14091-0096-290

$34.05

35023

FENDER-REAR,B.ORANGE

35023-0010-268

$263.97

35023A

FENDER-REAR,L.GREEN

35023-0010-290

$251.83

35063

STAY,REAR FENDER,LH

35063-0042

Unavailable

35063A

STAY,REAR FENDER,RH

35063-0043

Unavailable

35063B

STAY,REAR FENDER,LH

35063-0044

$18.99

35063C

STAY,REAR FENDER,RH

35063-0045

$18.99

92071

GROMMET

92071-0008

Unavailable

92143

COLLAR

92143-1087

$4.31
