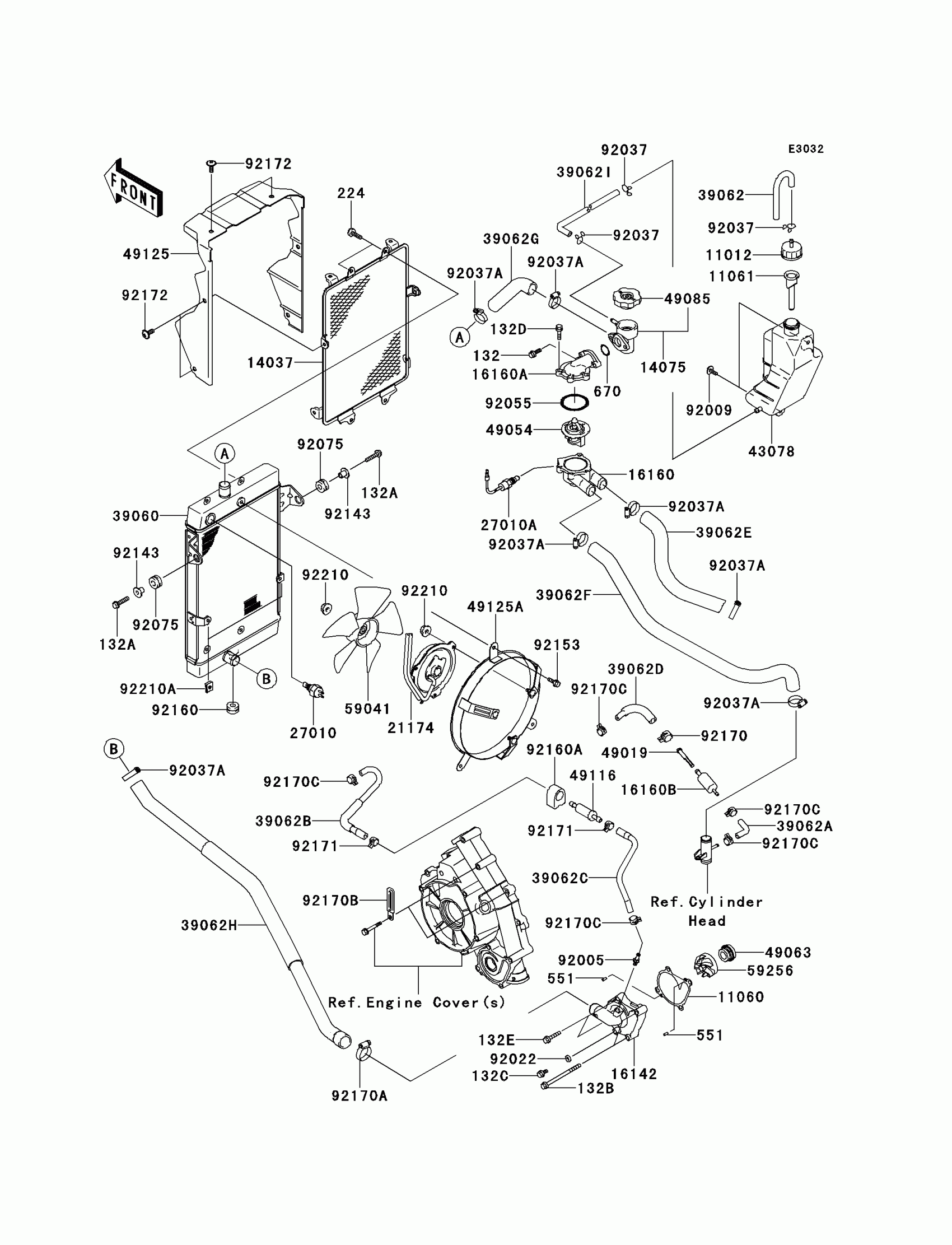

Kawasaki KFX700 Radiator Diagram
#
11012
CAP
11012-1854
$9.43
11060
GASKET,WATER PUMP
11060-1964
$7.58
11061
GASKET
11061-0043
$7.58
14037
SCREEN
14037-0017
$81.10
14075
CAP-ASSY,PRESSURE
14075-1115
$161.16
16142
COVER-PUMP,WATER
16142-0002
$83.83
16160
BODY,THERMOSTAT,LWR
16160-1112
$74.17
16160A
BODY,THERMOSTAT,UPP
16160-1113
$63.84
16160B
BODY
16160-1359
$9.43
21174
MOTOR-ELECTRIC
21174-0001
$476.27
27010
SWITCH,FAN
27010-1202
$98.81
27010A
SWITCH,SENSOR WATER
27010-1346
$120.07
39060
RADIATOR
39060-0006
$707.97
39062
HOSE-COOLING,BREATHER
39062-0002
$6.53
39062A
HOSE-COOLING,HEAD-FILTER
39062-1816
$5.47
39062B
HOSE-COOLING,CARB-VALVE
39062-1817
Unavailable
39062C
HOSE-COOLING,VALVE-WATER PUMP
39062-1818
Unavailable
39062D
HOSE-COOLING,FILTER-CARB
39062-1858
$7.91
39062E
HOSE-COOLING,FR HEAD-THERMO
39062-1920
$13.47
39062F
HOSE-COOLING,RR HEAD-THERMO
39062-1921
$28.81
39062G
HOSE-COOLING,THERMO-RADIATOR
39062-1922
$8.75
39062H
HOSE-COOLING,RAD-WATER PUMP
39062-1923
$39.35
39062I
HOSE-COOLING,RESERVOIR-THERMO
39062-1924
$5.97
43078
RESERVOIR,TANK
43078-0004
$55.38
49019
FILTER-WATER
49019-1068
$5.13
49054
THERMOSTAT
49054-1055
$54.56
49063
SEAL-MECHANICAL
49063-1055
$20.06
49085
CAP-ASSY-PRESSURE
49085-1067
$53.94
49116
VALVE-ASSY
49116-1190
$70.71
49125
SHROUD
49125-0003
$18.37
49125A
SHROUD
49125-0007
$30.25
59041
FAN
59041-0001
$30.05
59256
IMPELLER
59256-1069
$21.38
92005
FITTING,BLEED PIPE
92005-1337
$23.31
92009
SCREW,6X16
92009-1621
Unavailable
92022
WASHER,6.2X11X1
92022-304
$3.65
92037
CLAMP,TUBE
92037-147
$7.34
92037A
CLAMP,COOLING HOSE
92037-1589
$18.57
92055
RING-O,44.7X2.4
92055-1279
$7.34
92075
DAMPER RUBBER,RR FENR
92075-209
$4.69
132
BOLT-FLANGED-SMALL,6X16
132BA0616
$1.51
132A
BOLT-FLANGED-SMALL,6X25
132BA0625
$2.80
132B
BOLT-FLANGED-SMALL,6X90
132BB0690
$6.83
132C
BOLT-FLANGED-SMALL,6X12
132BD0612
$2.06
132D
BOLT-FLANGED-SMALL,6X20
132BD0620
$4.12
132E
BOLT-FLANGED-SMALL,6X30
132BD0630
$3.67
224
SCREW-PAN-WP-CROS,6X12
224AB0612
$4.45
551
PIN-DOWEL,4X8
551A0408
$0.78
670
O RING,20MM
670B2020
$1.22
92143
COLLAR
92143-1353
$8.58
92153
BOLT
92153-0456
$2.51
92160
DAMPER
92160-1007
$5.52
92160A
DAMPER,VALVE
92160-1451
$10.76
92170
CLAMP
92170-1491
$7.45
92170A
CLAMP
92170-1497
$16.83
92170B
CLAMP
92170-1514
$4.31
92170C
CLAMP
92170-2042
$1.30
92171
CLAMP
92171-0515
$6.38
92172
SCREW,6X10
92172-0005
$2.41
92210
NUT
92210-0085
$2.49
92210A
NUT
92210-0086
$4.25
