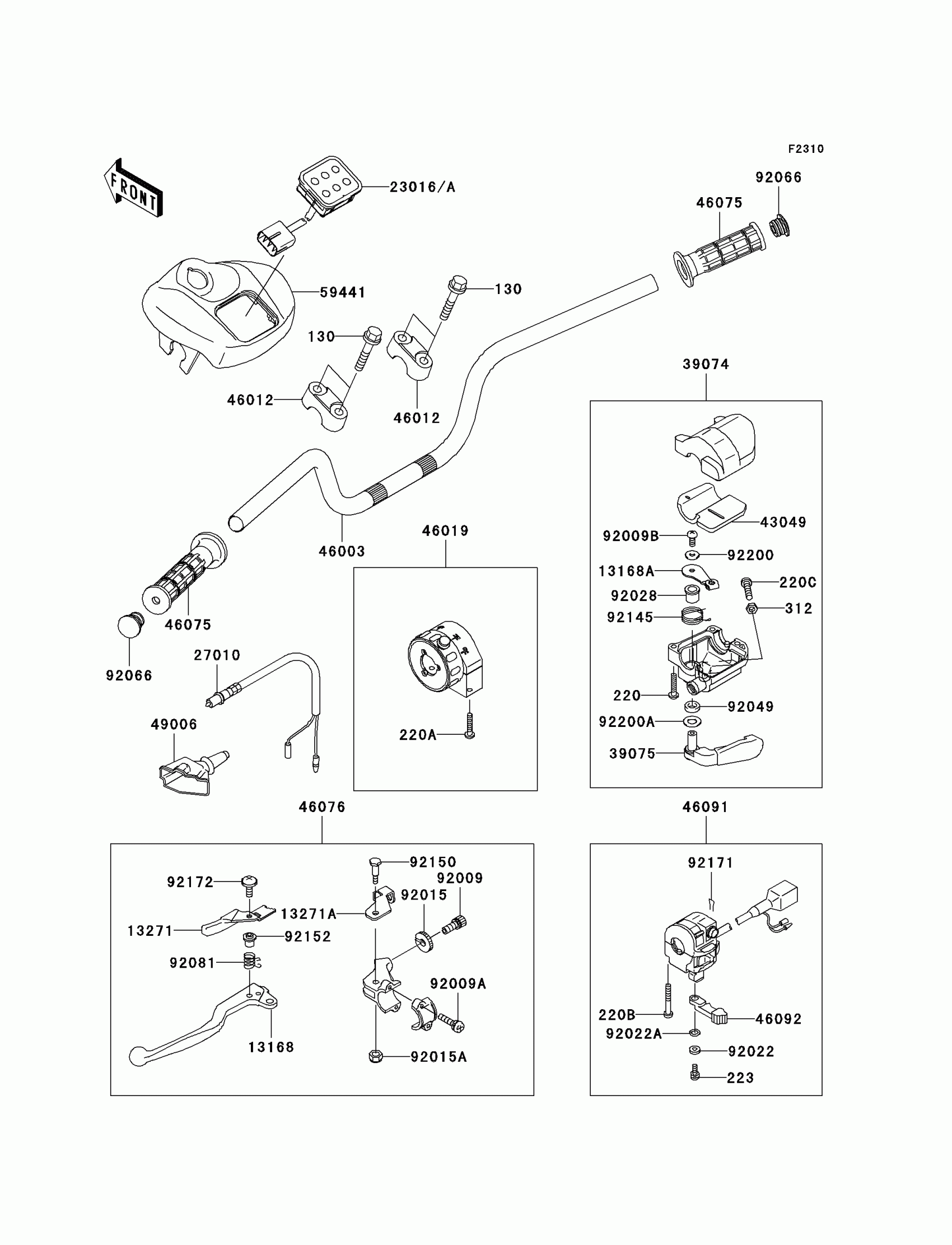

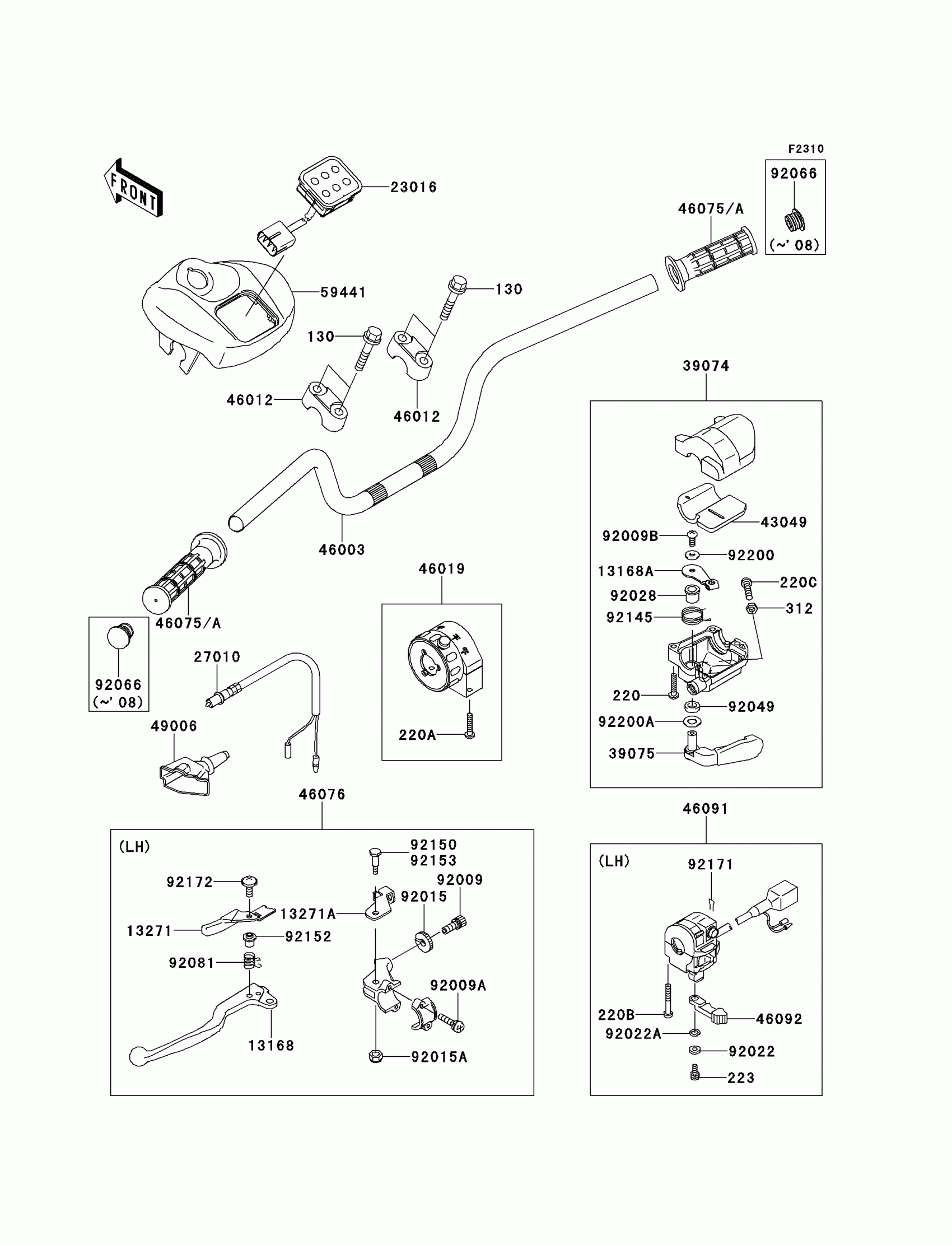

Kawasaki KFX700 Handlebar Diagram
#
13168
LEVER,LH
13168-0002
$40.40
13168A
LEVER
13168-1715
$8.58
13271
PLATE,LEVER LOCK
13271-0011
$15.39
13271A
PLATE,LOCK
13271-1259
$17.76
23016
LAMP-ASSY
23016-0002
$120.86
27010
SWITCH,BRAKE
27010-1294
$35.18
39074
LEVER-ASSY-THROTTLE
39074-0001
$168.21
39075
LEVER-THROTTLE
39075-1062
$28.70
43049
PACKING
43049-1088
$11.06
46003
HANDLE,G.GRAY
46003-0001-HN
$78.01
46012
HOLDER-HANDLE
46012-1168
$16.33
46019
GRIP-ASSY,SHIFT CONTROL
46019-0006
$110.27
46075A
GRIP
46075-1210
Unavailable
46076
LEVER-ASSY-GRIP,LH
46076-1258
$80.81
46091
HOUSING-ASSY-CONTROL,LH
46091-1848
$228.81
46092
LEVER-GRIP,CHOKE
46092-1217
$5.47
49006
BOOT
49006-1261
$22.51
59441
COVER-HANDLE,BLACK
59441-1173-6D
$24.17
92009
SCREW,CABLE ADJUST,8MM
92009-1435
$16.33
92009A
SCREW,6X20
92009-1841
$6.18
92009B
SCREW
92009-1959
$2.41
92015
NUT,CABLE ADJUST LOCK,8MM
92015-1596
$8.86
92015A
NUT
92015-1829
$4.26
92022
WASHER,5MM
92022-1837
$3.35
92022A
WASHER,WAVE,5MM
92022-1838
$3.35
92028
BUSHING
92028-1986
$4.14
92049
SEAL-OIL
92049-1578
$4.67
92066
PLUG
92066-1550
$8.90
92081
SPRING,LOCK RETURN
92081-1358
$5.46
92145
SPRING
92145-1392
$3.70
92150
BOLT
92150-1420
Unavailable
92152
COLLAR
92152-1176
$4.31
92171
CLAMP,CLIP
92171-1095
$3.09
92172
SCREW,5X20
92172-0078
$2.80
92200
WASHER
92200-1558
$5.00
92200A
WASHER
92200-1559
$5.00
130
BOLT-FLANGED,8X60
130CA0860
$1.77
220
SCREW-PAN-CROS,5X20
220AB0520
$1.97
220A
SCREW-PAN-CROS,5X25
220AB0525
$3.52
220B
SCREW-PAN-CROS,5X35
220AB0535
$2.06
220C
SCREW-PAN-CROS,6X25
220AB0625
$3.67
223
SCREW-PAN-WS-CROS,5X12
223AB0512
$4.32
312
NUT-HEX,6MM,BLACK
312AB0600
$3.92
