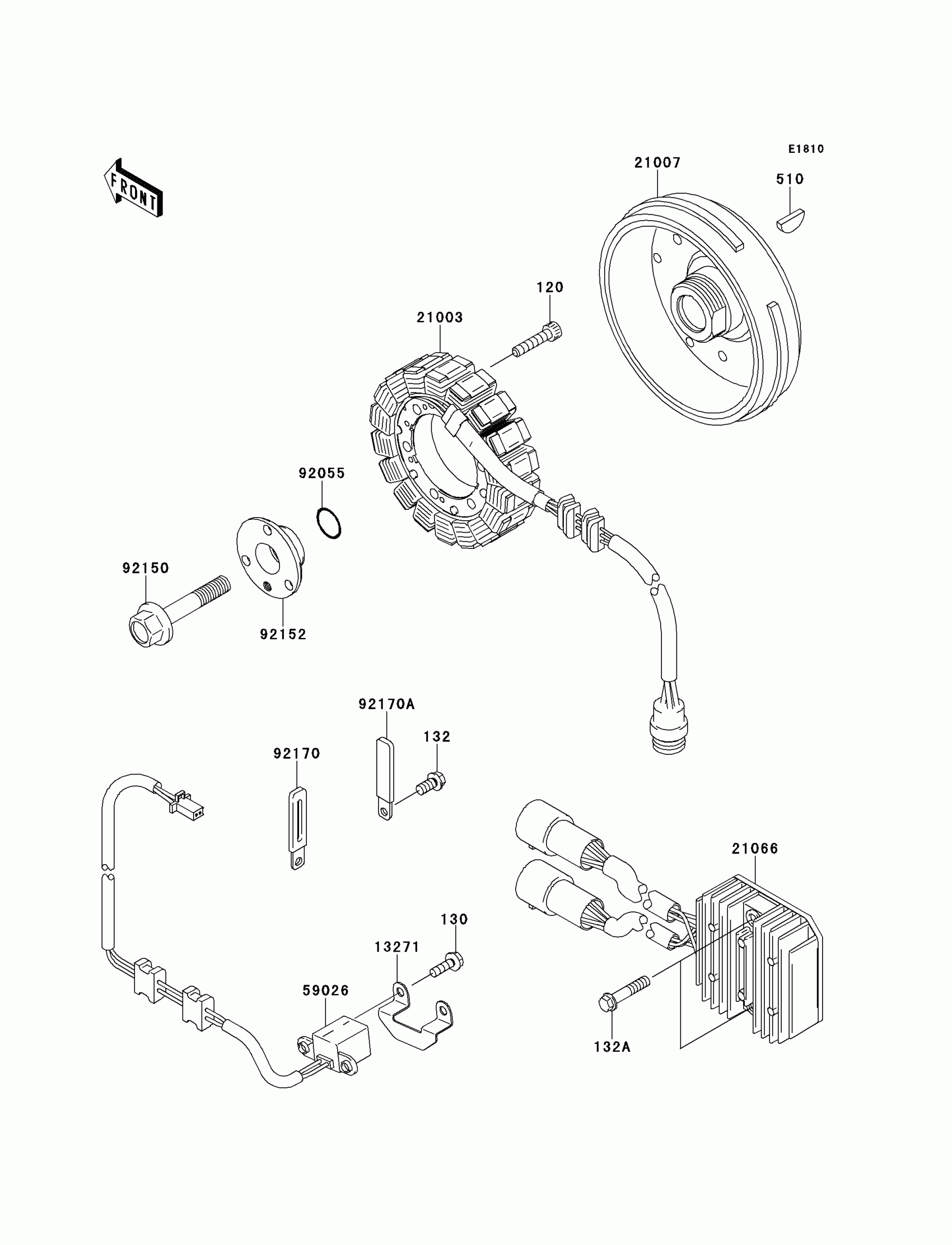

Kawasaki KFX700 Generator Diagram

Description

Price

120

BOLT-SOCKET,6X28

120P0628

Unavailable

130

BOLT-FLANGED

130G0516

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132Y0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132Y0630

Unavailable

510

KEY-WOODRUFF

510A4200

$2.04

13271

PLATE

13271-1369

$2.37

21003

STATOR

21003-0003

$591.91

21007

ROTOR

21007-1367

$658.25

21066

REGULATOR-VOLTAGE

21066-1112

Unavailable

59026

COIL-PULSING

59026-1159

$98.31

92055

RING-O,19.8X2.2

92055-1215

$3.29

92150

BOLT,12X65

92150-1987

$11.32

92152

COLLAR,20X51X17

92152-1467

$18.00

92170

CLAMP

92170-1514

$3.29

92170A

CLAMP

92170-1925

$1.98
