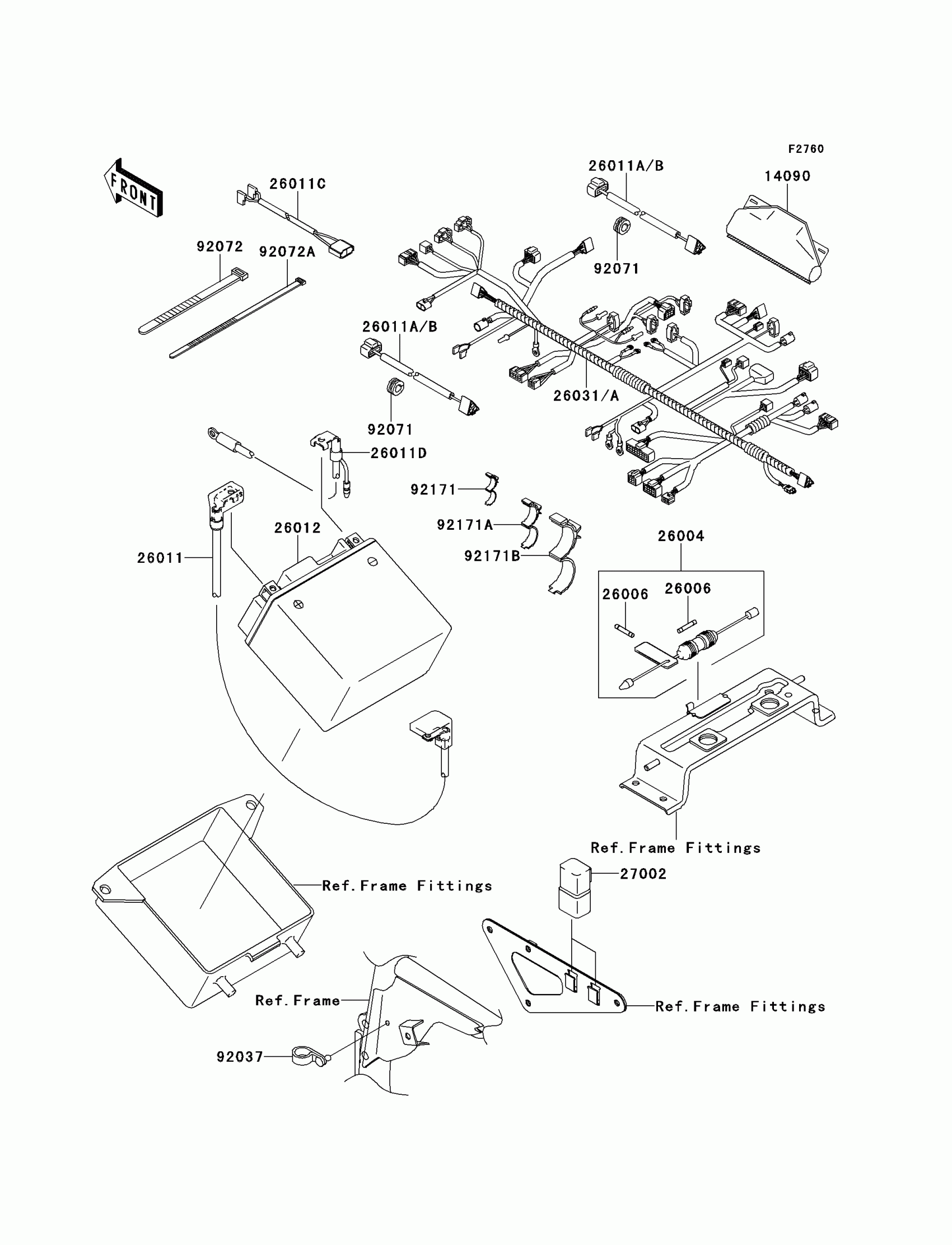

Kawasaki KFX700 Chassis Electrical Equipment Diagram

Description

Price

14090

COVER,COUPLER

14090-1331

$8.31

26004

FUSE-ASSY

26004-7501

Unavailable

26006

FUSE,GLASS TUBE,6.4X31.8,20A

26006-1064

$5.14

26011

WIRE-LEAD,BATTERY(+)

26011-0009

$54.39

26011A

WIRE-LEAD,HEAD LAMP

26011-1741

Unavailable

26011B

WIRE-LEAD,FRONT BRAKE

26011-1802

$21.98

26011C

WIRE-LEAD,BATTERY(-)

26011-1847

$37.30

26012

BATTERY,MF,KMX14-BS,12V 12AH

26012-1414

$117.11

26031

HARNESS,MAIN

26031-0011

Unavailable

27002

RELAY-ASSY

27002-1086

$32.97

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92071

GROMMET

92071-1128

$4.78

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=188

92072-1239

$1.30

92171

CLAMP,10MM DIA.

92171-1423

$3.75

92171A

CLAMP,DIA=15

92171-1424

$3.19

92171B

CLAMP,25MM DIA.

92171-1559

$5.39
