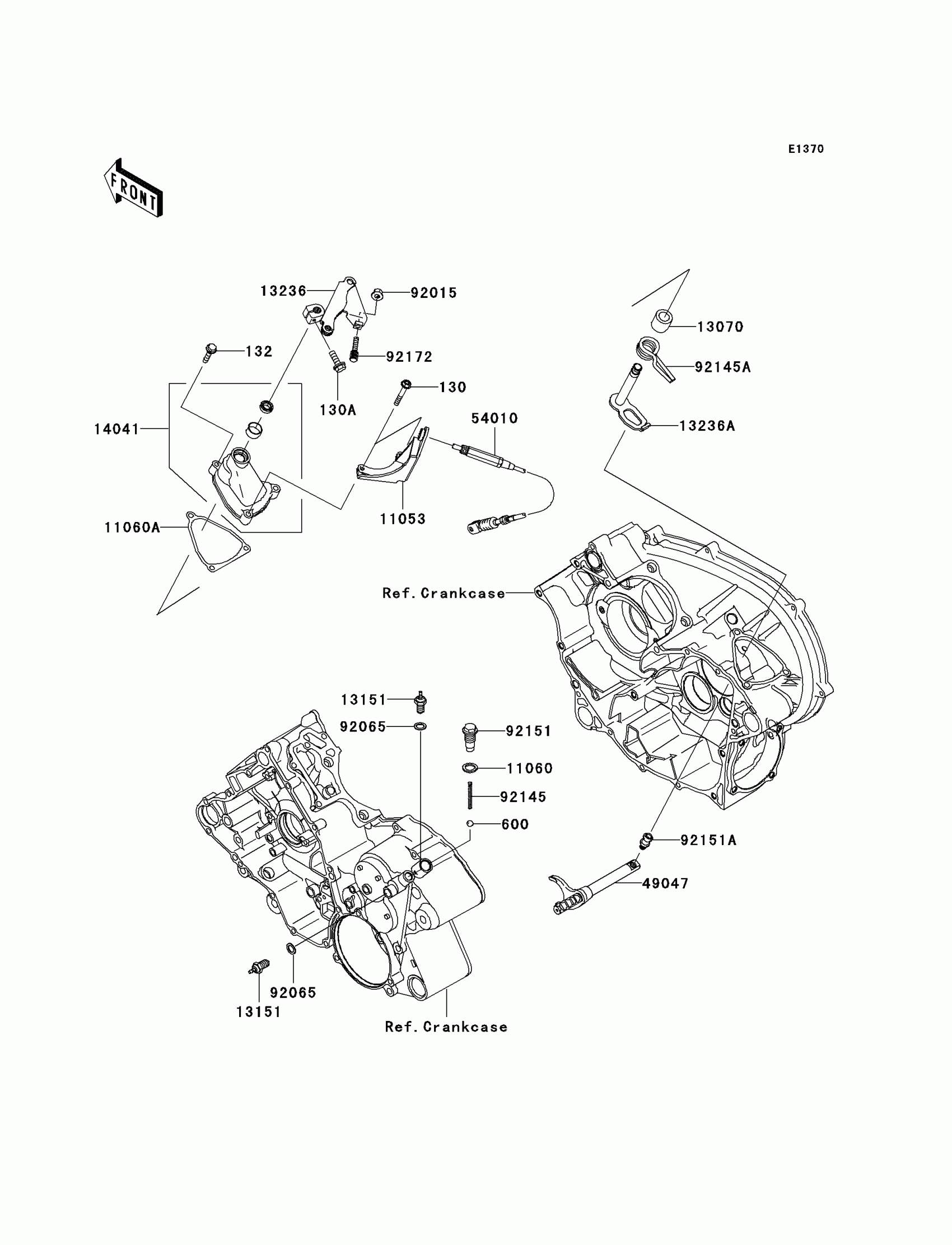

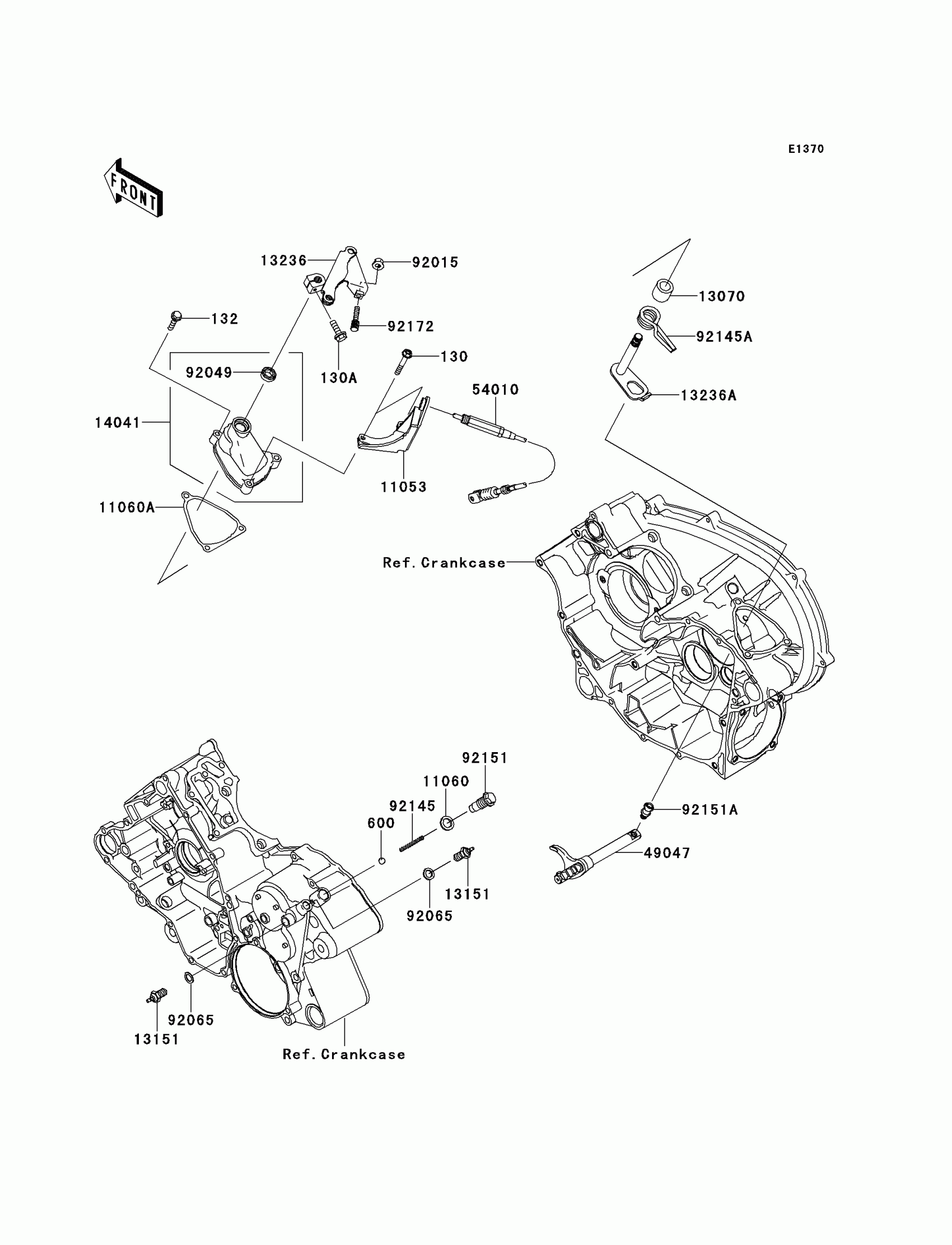

Kawasaki KFX700 Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED

130Y0635

$4.14

130A

BOLT-FLANGED

130Z0620

Unavailable

132

BOLT-FLANGED-SMALL,6X30

132Y0630

Unavailable

600

BALL-STEEL,5/16

600A1000

$0.66

11053

BRACKET,REVERSE CABLE

11053-0104

$51.39

11060

GASKET,14X20X2

11060-1287

$2.36

11060A

GASKET,CHANGE LEVER COVER

11060-1956

$4.61

13070

GUIDE

13070-1352

$4.39

13151

SWITCH-COMP,NEUTRAL

13151-1080

$7.87

13236

LEVER-COMP,CHANGE SHIFT

13236-0025

Unavailable

13236A

LEVER-COMP,CHANGE

13236-1377

Unavailable

14041

COVER-COMP,CHANGE LEVER

14041-1136

$40.44

49047

ROD-SHIFT

49047-1104

$112.60

54010

CABLE,REVERSE LOCK

54010-0005

$49.94

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92065

GASKET,10.5X16X1

92065-058

$3.03

92145

SPRING,CHANGE POSITION

92145-1297

$1.71

92145A

SPRING,CHANGE LEVER

92145-1299

$20.15

92151

BOLT,CHANGE POSITION

92151-1687

$13.97

92151A

BOLT,SHIFT ROD

92151-1699

$17.19

92172

SCREW,6X25

92172-0058

$5.73
