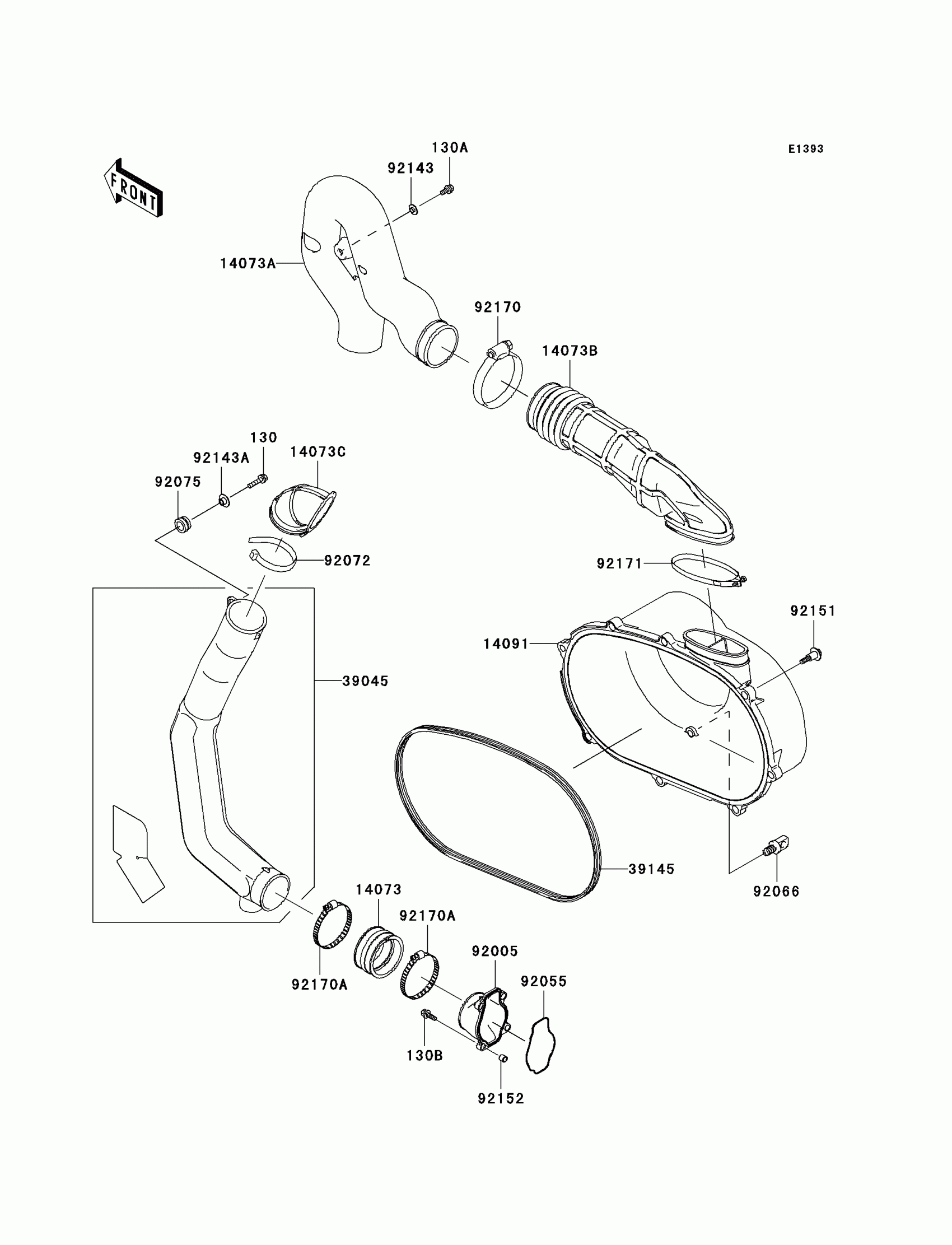

Kawasaki KFX700 Converter Cover/Drive Belt Diagram

Description

Price

130

BOLT,FLANGED,6X25

130G0625

Unavailable

130A

BOLT-FLANGED,6X12

130J0612

Unavailable

130B

BOLT-FLANGED

130Z0620

Unavailable

14073

DUCT,JOINT

14073-1775

$3.32

14073A

DUCT,EXHAUST

14073-1850

$31.10

14073B

DUCT,EXHAUST JOINT

14073-1851

Unavailable

14073C

DUCT,SNORKEL TOP

14073-1853

$15.69

14091

COVER,BELT CONVERTER

14091-1535

Unavailable

39045

DUCT-ASSY,SNORKEL

39045-1072

$36.68

39145

TRIM-SEAL

39145-1135

Unavailable

92005

FITTING

92005-1387

$11.68

92055

RING-O

92055-1630

$7.98

92066

PLUG,DRAIN,11X19

92066-1580

$4.69

92072

BAND,L=365

92072-1197

$7.71

92075

DAMPER,RUBBER

92075-1123

$3.81

92143

COLLAR

92143-1087

$2.98

92143A

COLLAR

92143-1353

$6.54

92151

BOLT,FLANGED,6X30

92151-1686

$7.18

92152

COLLAR

92152-1332

$3.19

92170

CLAMP

92170-1763

$4.29

92170A

CLAMP

92170-1764

$8.62

92171

CLAMP

92171-1554

Unavailable
