Description

Price

132

BOLT-FLANGED-SMALL,6X30

132G0630

$2.48

132A

BOLT-FLANGED-SMALL,6X12

132J0612

$1.92

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

221

SCREW-CSK-CROS,4X14

221B0414

$3.41

14091

COVER,FUEL TANK

14091-1513

$44.05

16087

VALVE-CHECK

16087-1054

$53.12

18020

BAFFLE

18020-1307

$11.25

43049

PACKING

43049-1103

$5.74

49040

PUMP-FUEL

49040-1080

$874.30

51001

TANK-COMP-FUEL

51001-0013

$229.83

51023

TAP-ASSY,FUEL

51023-1406

$126.19

51049

CAP-TANK,FUEL

51049-1128

$68.82

59071

JOINT

59071-3717

$3.55

92027

COLLAR,L=16.1

92027-1847

$6.22

92037

CLAMP

92037-093

$11.37

92037A

CLAMP,TUBE

92037-1461

$3.88

92037B

CLAMP,TUBE

92037-1505

$4.76

92055

RING-O

92055-1664

$5.00

92072

BAND

92072-1438

$5.00

92075

DAMPER

92075-1787

$6.57

92093

SEAL

92093-0007

$17.48

92153

BOLT,FLANGED,5MM

92153-0361

$4.18

92161

DAMPER,FUEL PUMP

92161-0027

$17.65

92191

TUBE,5.3X10.5X850

92191-0034

$37.59

92191A

TUBE,TANK BREATHER

92191-1666

$11.32

92191B

TUBE,CHECK VALVE-TANK

92191-1773

$5.55

92192

TUBE,JOINT-CHECK VALVE

92192-0020

$4.21

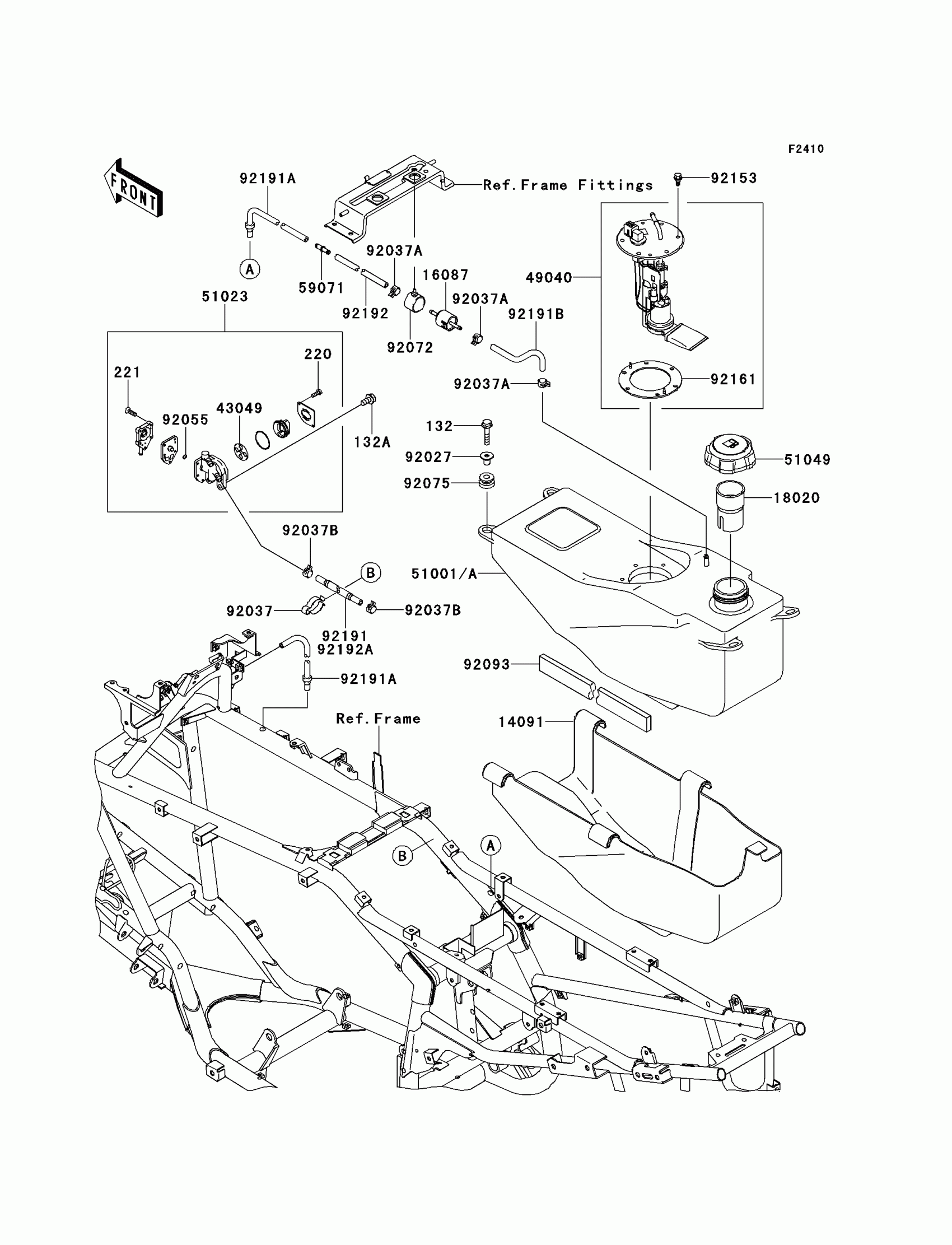

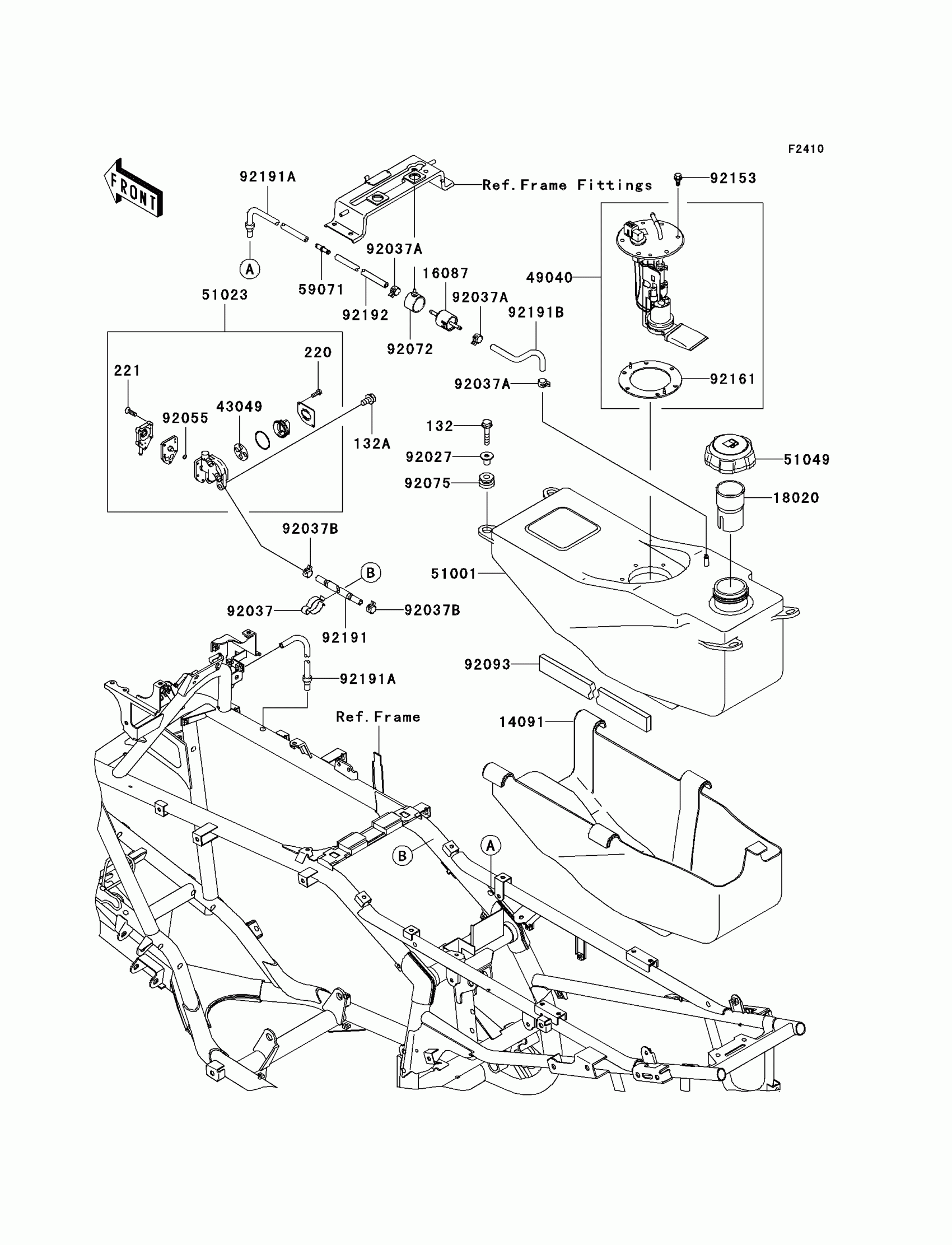

Kawasaki KFX700 Fuel Tank Diagram

BOLT-FLANGED-SMALL,6X30

BOLT-FLANGED-SMALL,6X12

SCREW-PAN-CROS,3X8

SCREW-CSK-CROS,4X14

COVER,FUEL TANK

VALVE-CHECK

BAFFLE

PACKING

PUMP-FUEL

TANK-COMP-FUEL

TAP-ASSY,FUEL

CAP-TANK,FUEL

JOINT

COLLAR,L=16.1

CLAMP

CLAMP,TUBE

CLAMP,TUBE

RING-O

BAND

DAMPER

SEAL

BOLT,FLANGED,5MM

DAMPER,FUEL PUMP

TUBE,5.3X10.5X850

TUBE,TANK BREATHER

TUBE,CHECK VALVE-TANK

TUBE,JOINT-CHECK VALVE
