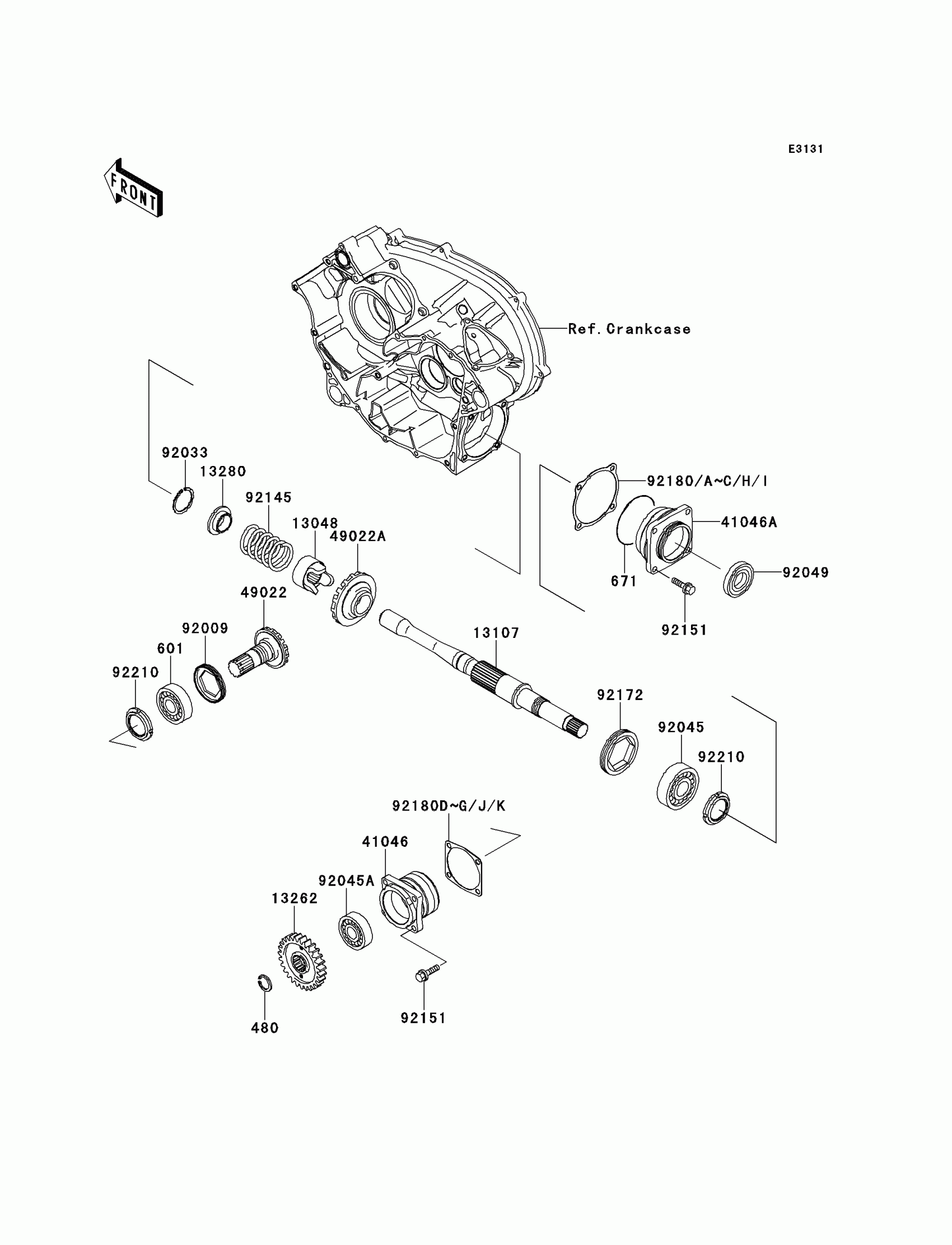

Kawasaki KFX700 Front Bevel Gear Diagram

#

Description
Price

480

CIRCLIP-TYPE-C,28MM

480J2800

$4.70

601

BALL BEARING,#6206

601B6206

$22.50

671

O RING

671D2585

$7.98

13048

CAM-DAMPER

13048-1088

$56.26

13107

SHAFT

13107-1516

$338.63

13262

GEAR,OUTPUT DRIVEN,27T

13262-0014

$118.91

13280

HOLDER

13280-1169

$27.33

41046

HOUSING-BEARING

41046-1101

$139.87

41046A

HOUSING-BEARING

41046-1102

Unavailable

49022

GEAR-BEVEL,DRIVE,12T

49022-1192

$214.46

49022A

GEAR-BEVEL,DRIVEN,20T

49022-1193

$229.49

92009

SCREW-SET-SOCKET,75X10

92009-1667

$88.39

92009A

SCREW,64MM

92009-1914

$29.63

92033

RING-SNAP

92033-1320

$6.53

92045

BEARING-BALL,6306SH2

92045-1190

$40.80

92045A

BEARING-BALL,62/28

92045-1207

$19.03

92049

SEAL-OIL

92049-1529

$18.11

92145

SPRING

92145-1298

$46.55

92151

BOLT-FLANGED-SMALL,8X30

92151-1688

$2.80

92180

SHIM,DRIVEN,T=0.15

92180-1307

$7.65

92180A

SHIM,DRIVEN,T=0.20

92180-1308

$7.65

92180B

SHIM,DRIVEN,T=0.50

92180-1309

$7.65

92180C

SHIM,DRIVEN,T=0.80

92180-1310

$7.63

92180D

SHIM,DRIVE,T=0.15

92180-1311

$6.57

92180E

SHIM,DRIVE,T=0.20

92180-1312

$6.57

92180F

SHIM,DRIVE,T=0.50

92180-1313

$6.57

92180G

SHIM,DRIVE,T=0.80

92180-1314

$6.57

92180H

SHIM,DRIVEN,T=1.00

92180-1349

$8.36

92180I

SHIM,DRIVEN,T=1.20

92180-1350

$8.36

92180J

SHIM,DRIVE,T=1.00

92180-1351

$8.36

92180K

SHIM,DRIVE,T=1.20

92180-1352

$8.36

92210

NUT,30MM

92210-1294

$40.82
