2005 Kawasaki KFX700 Cylinder/piston Diagram

← All diagrams

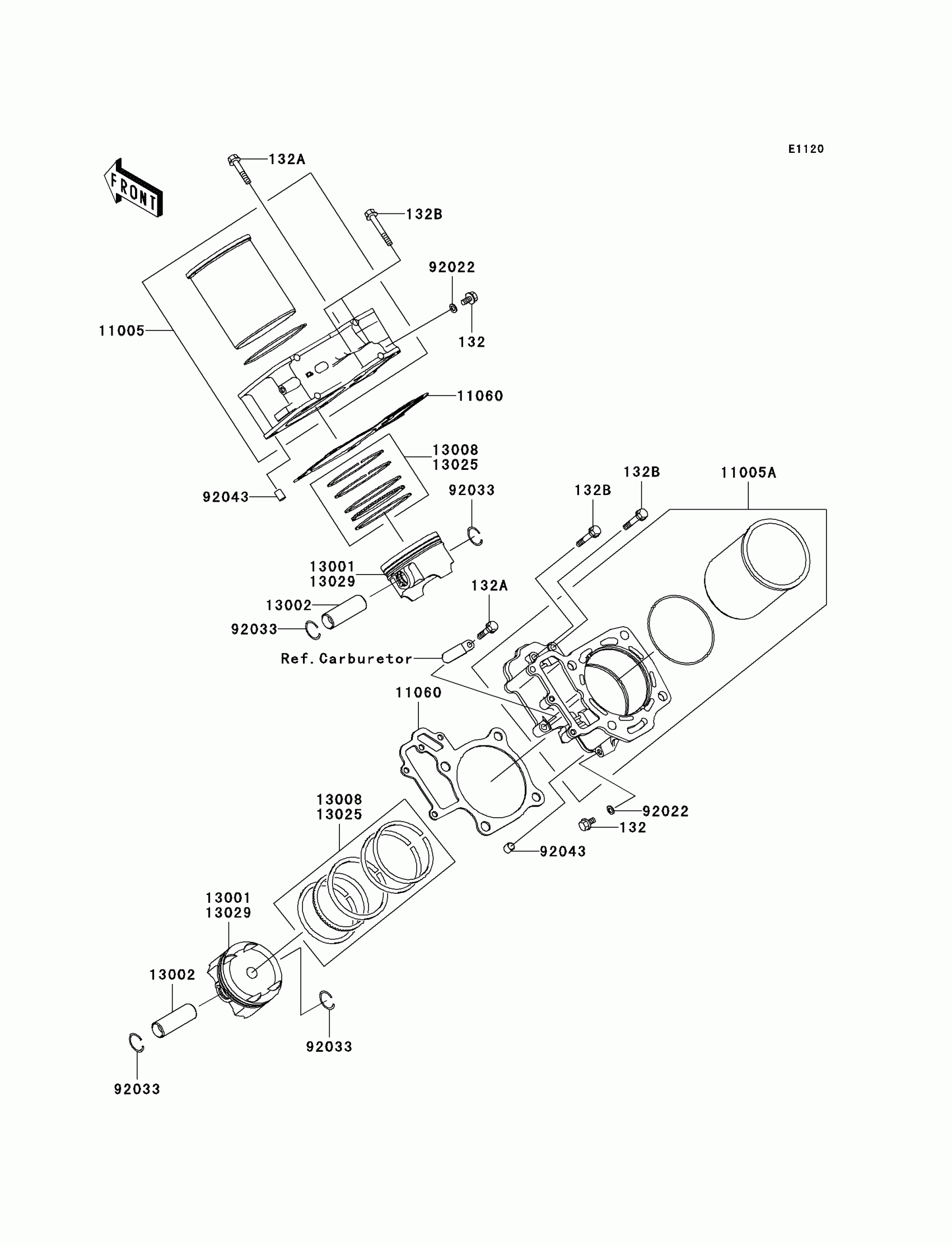

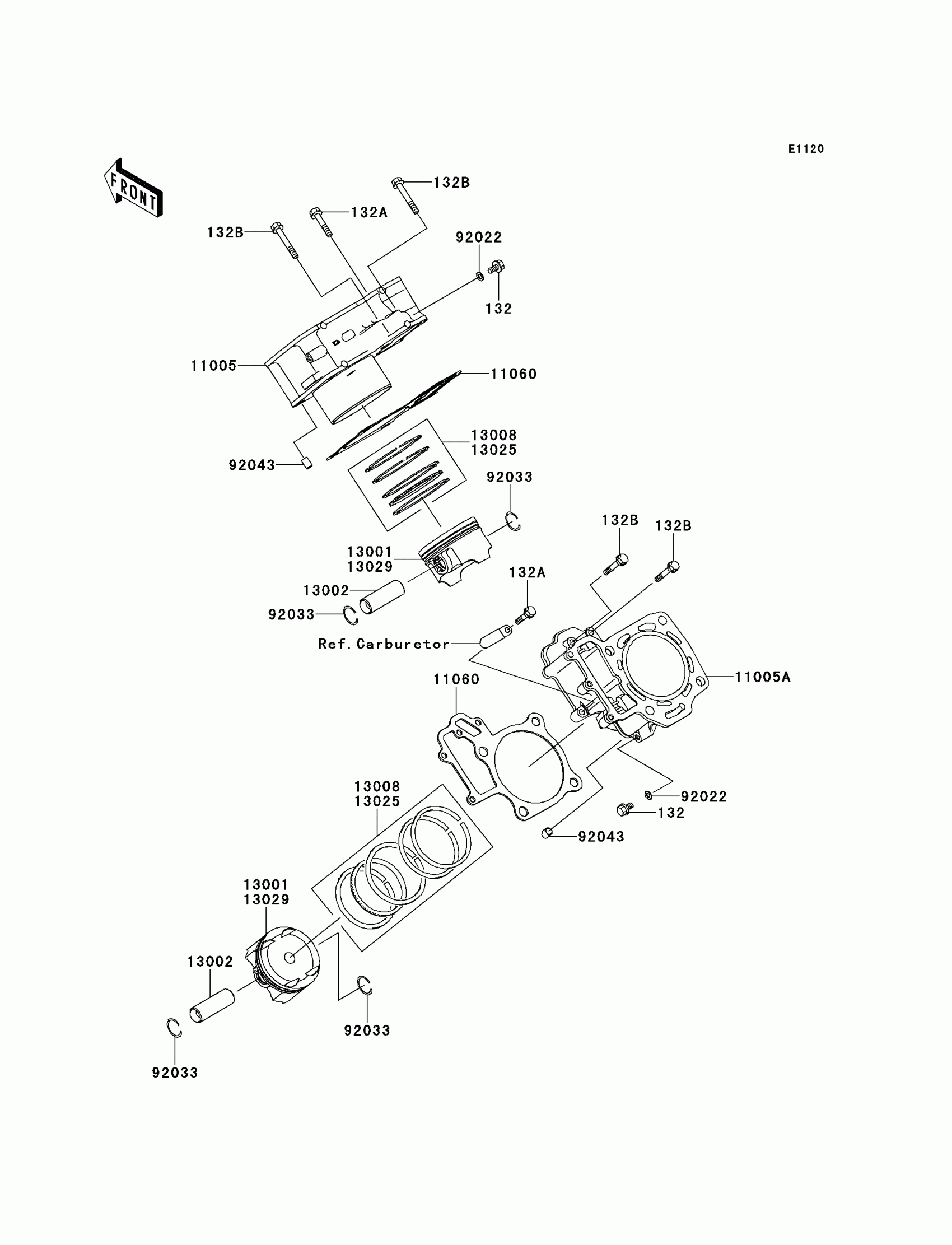

Find the part on the Cylinder/piston diagram for your 2005 Kawasaki KFX700, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KFX700 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X12

132Y0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X30

132Y0630

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X40

132Y0640

1
Out of stock

11005

CYLINDER-ENGINE,FR

11005-1990

1
Out of stock

11005A

CYLINDER-ENGINE,RR

11005-1992

1
Out of stock

11060

GASKET,CYLINDER BASE

11060-1965

1
Out of stock

13001

PISTON-ENGINE,STD

13001-1658

1
Out of stock

13002

PIN-PISTON

13002-1060

1
Out of stock

13008

RING-SET-PISTON,STD

13008-1215

1
Out of stock

13025

RING-SET-PISTON L,O/S 0.50

13025-0005

—
Out of stock

13029

PISTON-ENGINE L,O/S 0.50

13029-0007

—
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92033

RING-SNAP

92033-1207

1
Out of stock

92043

PIN,10.1X12X14

92043-4009

1
Out of stock
