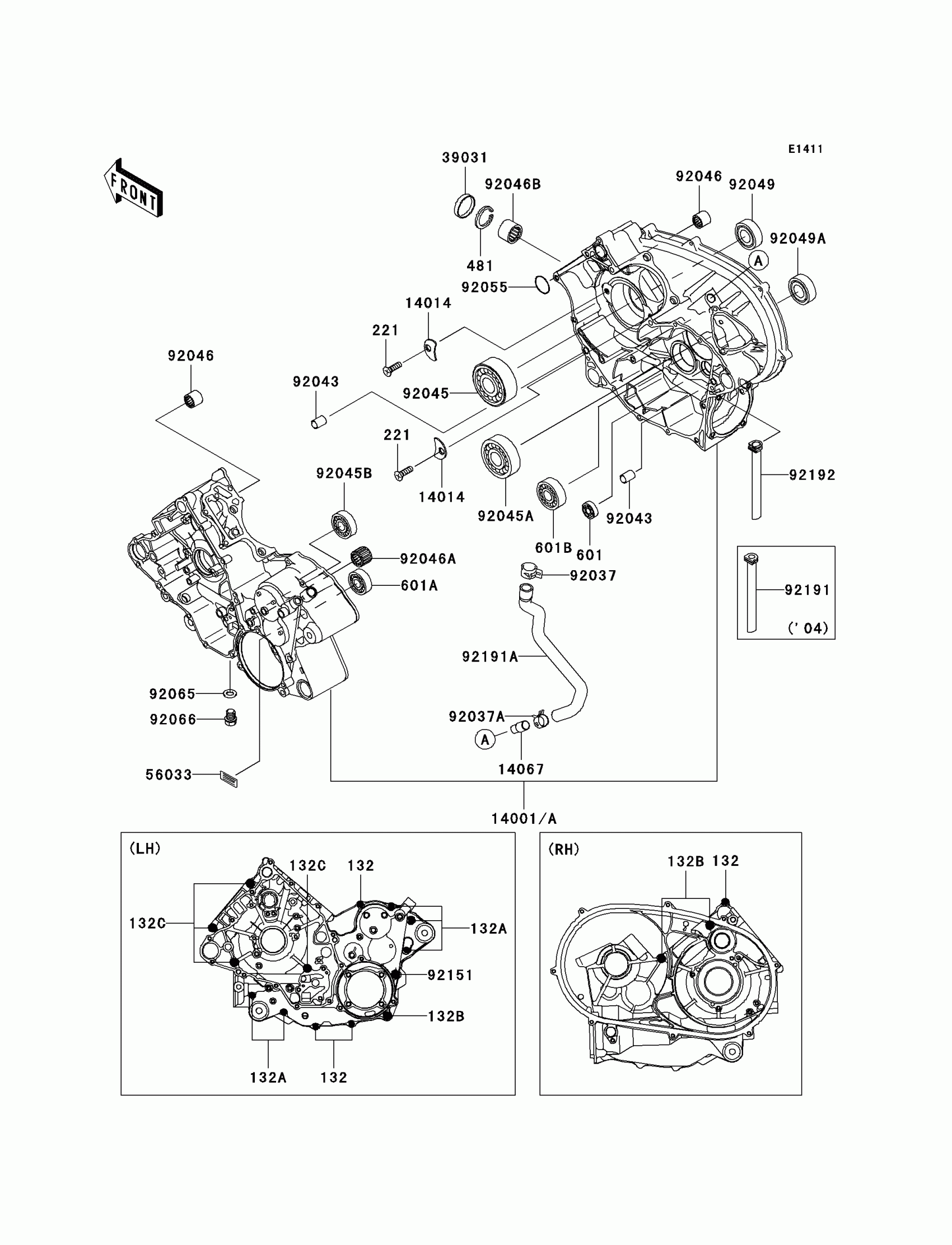

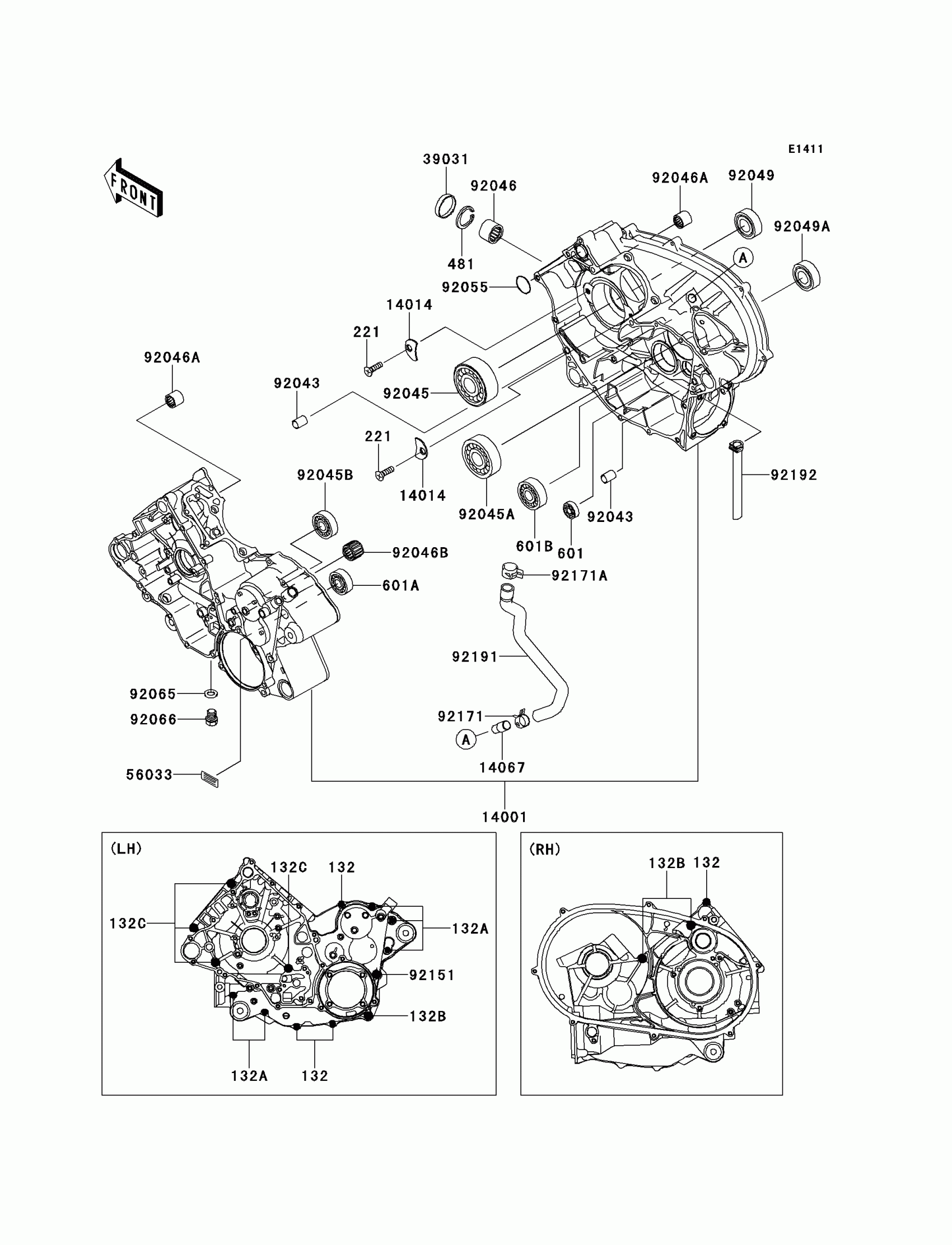

Kawasaki KFX700 Crankcase Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X40

132Y0640

Unavailable

132A

BOLT-FLANGED-SMALL

132Y0665

Unavailable

132B

BOLT-FLANGED-SMALL,8X110

132Y08110

Unavailable

132C

BOLT-FLANGED-SMALL,8X75

132Y0875

Unavailable

221

SCREW-CSK-CROS,6X16

221B0616

$0.54

481

CIRCLIP-TYPE-C,37MM

481J3700

$2.04

601

BEARING-BALL

601A6000

$9.76

601A

BEARING-BALL,#6004

601A6004

$9.04

601B

BEARING-BALL,#6304

601A6304

$11.00

14001

SET-CRANKCASE

14001-0028

$1,099.52

14014

PLATE-POSITION

14014-0006

$11.17

14067

FITTING,BREATHER

14067-006

$19.78

39031

CAP-END

39031-1070

$7.14

56033

LABEL-MANUAL,OIL LEVEL

56033-0021

$5.69

92037

CLAMP

92037-1730

$8.39

92037A

CLAMP

92037-1860

Unavailable

92043

PIN,10X14

92043-1506

$2.30

92045

BEARING-BALL,5208X2-A-ECG45

92045-0012

$130.38

92045A

BEARING-BALL,6306SH2

92045-1190

$36.30

92045B

BEARING-BALL,6303LUA

92045-1389

$17.52

92046

BEARING-NEEDLE,TA202715ZE

92046-1118

$17.82

92046A

BEARING-NEEDLE

92046-1143

Unavailable

92046B

BEARING-NEEDLE

92046-1277

$20.25

92049

SEAL-OIL,TC 35X50X8

92049-1452

$10.44

92049A

SEAL-OIL,HTC 30X45X8

92049-1575

$12.45

92055

RING-O,25.7X2.4

92055-1136

$3.81

92065

GASKET,12X22X2

92065-097

$0.66

92066

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

92151

BOLT,8X110

92151-1689

$4.42

92191A

TUBE,BREATHER

92191-1740

$23.41

92192

TUBE,OIL RETURN

92192-0057

Unavailable
