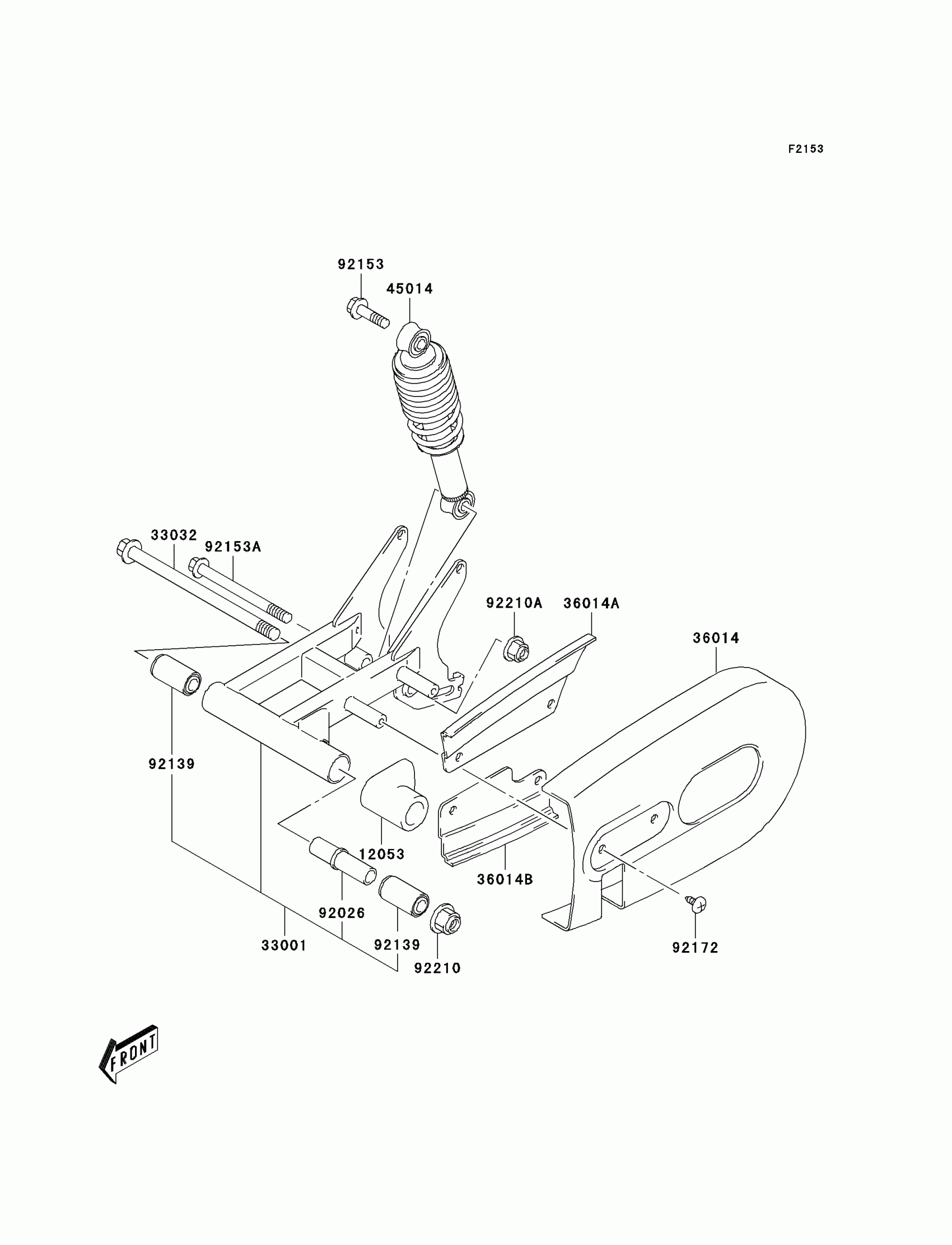

Kawasaki KFX50 Rear Suspension Diagram

Description

Price

12053

GUIDE-CHAIN

12053-S013

Unavailable

33001

ARM-COMP-SWING,BLACK

33001-S005-503

$265.05

33032

SHAFT-SWING ARM

33032-S002

$23.39

36014

CASE-CHAIN

36014-S002

$69.47

36014A

CASE-CHAIN

36014-S003

$17.50

36014B

CASE-CHAIN

36014-S004

$17.46

45014

SHOCKABSORBER,L.GREEN

45014-S021-535

$249.55

92026

SPACER

92026-S063

$15.66

92139

BUSHING

92139-S015

$11.95

92153

BOLT,10X37

92153-S033

$3.26

92153A

BOLT,REAR SHOCK

92153-S204

$6.91

92172

SCREW,6X16

92172-S073

$2.76

92210

NUT

92210-S007

Unavailable

92210A

NUT

92210-S030

$4.49
