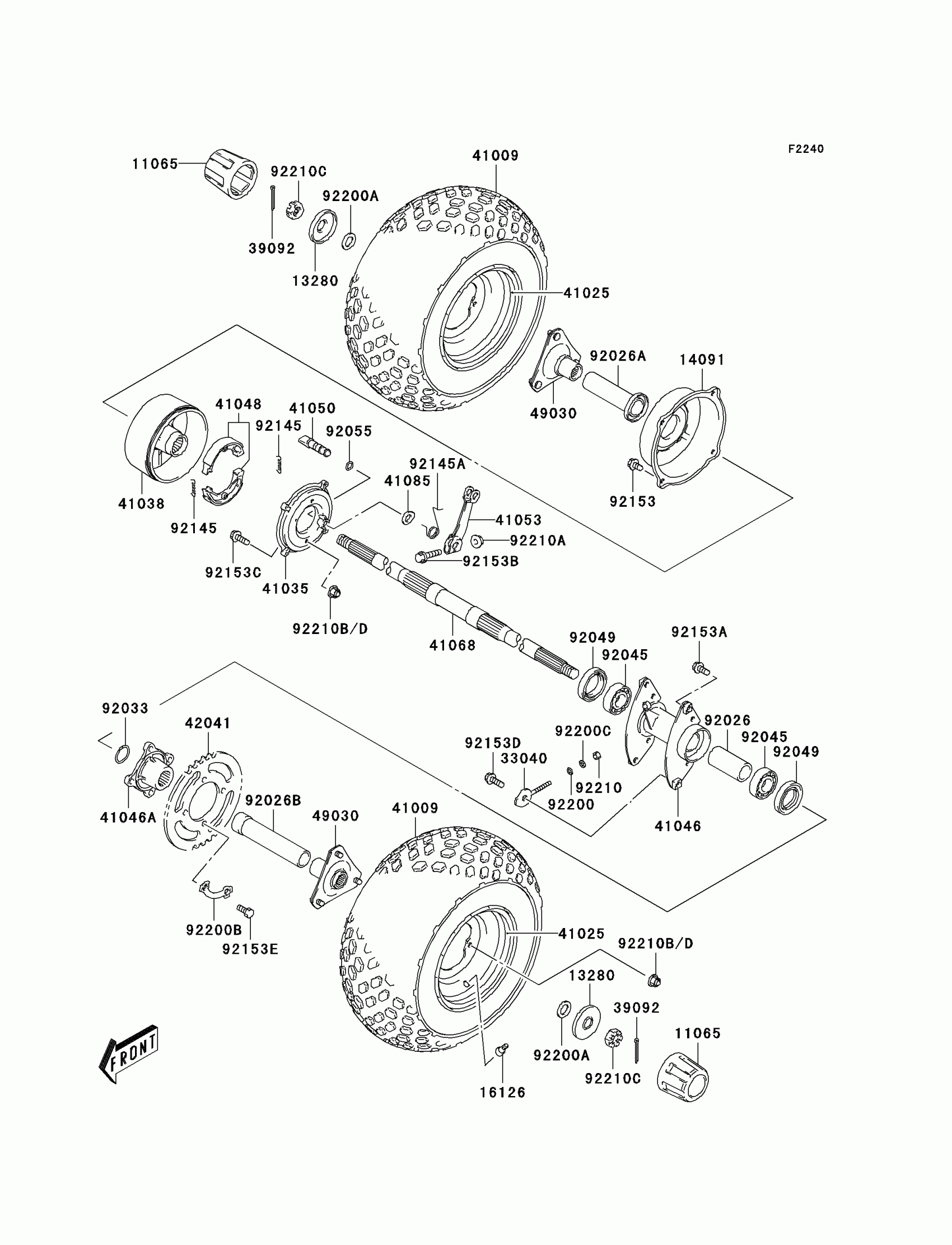

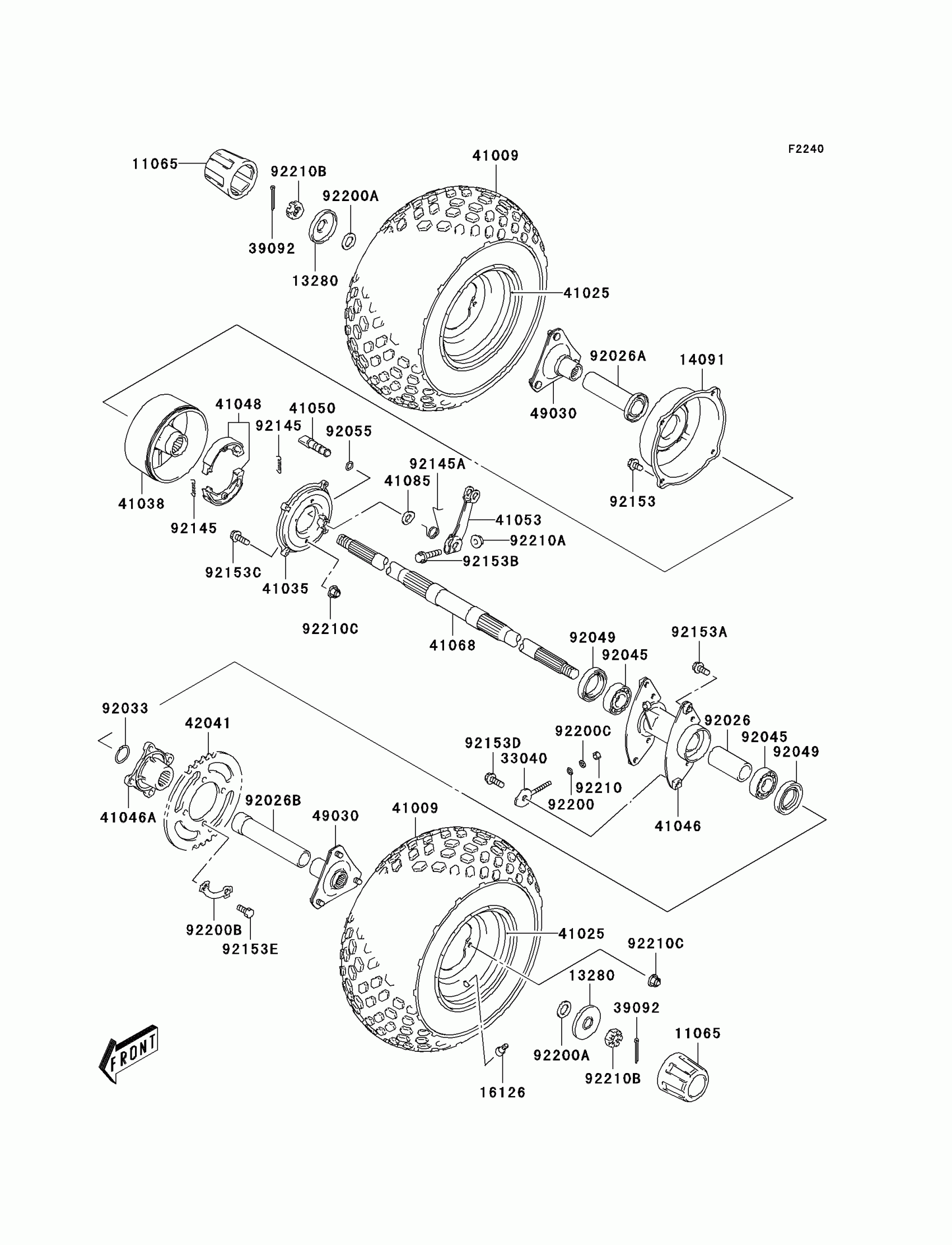

Kawasaki KFX50 Rear Hub Diagram

#

Description
Price

11065

CAP,WHEEL

11065-S022

$15.25

13280

HOLDER,CENTER CAP

13280-S017

$3.90

14091

COVER,REAR BRAKE DRUM

14091-S071

$58.21

16126

VALVE,WHEEL RIM,TR412

16126-S002

$10.42

33040

ADJUSTER-CHAIN

33040-S002

$5.70

39092

PIN-HAIR,REAR AXLE

39092-S008

Unavailable

41009

TIRE

41009-S009

Unavailable

41025

RIM,REAR WHEEL,B.SILVER

41025-S006-530

$152.25

41035

PANEL-ASSY-BRAKE

41035-S003

$78.04

41038

DRUM,REAR BRAKE

41038-S001

$120.95

41046

HOUSING-BEARING

41046-S001

$166.90

41046A

HOUSING-BEARING,REAR SPROCKET

41046-S002

$113.68

41048

SHOE-BRAKE

41048-S005

$44.03

41050

CAM-BRAKE

41050-S005

$21.29

41053

LEVER-BRAKE CAM

41053-S005

$14.02

41068

AXLE,RR

41068-S007

$335.33

41085

INDICATOR

41085-S002

$4.65

42041

SPROCKET-HUB,RR,37T

42041-S004

$48.65

49030

HUB,RR

49030-S001

$119.77

92026

SPACER,REAR AXLE

92026-S064

$14.90

92026A

SPACER,AXLE,RH

92026-S065

$31.98

92026B

SPACER,AXLE,LH

92026-S066

$29.71

92033

RING-SNAP,STOPPER

92033-S030

$6.02

92045

BEARING-BALL,RR AXLE

92045-S038

$33.41

92049

SEAL-OIL,REAR AXLE

92049-S033

$10.13

92055

RING-O,BRAKE CAM

92055-S041

$5.15

92145

SPRING,REAR BRAKE SHOE

92145-S047

$4.10

92145A

SPRING,REAR BRAKE CAM

92145-S068

$8.49

92153

BOLT

92153-S143

$1.92

92153A

BOLT,MUFFLER

92153-S194

$2.40

92153B

BOLT,BRAKE CAM LEVER

92153-S205

$2.54

92153C

BOLT

92153-S206

$3.34

92153D

BOLT,CHAIN ADJUSTER

92153-S207

$2.70

92153E

BOLT,REAR SPROCKET

92153-S208

$4.61

92200

WASHER

92200-S003

$1.92

92200A

WASHER,REAR AXLE

92200-S100

$1.92

92200B

WASHER,SPROCKET

92200-S101

$2.56

92200C

WASHER

92200-S102

$1.92

92210

NUT

92210-S001

$1.92

92210A

NUT

92210-S004

$1.92

92210C

NUT,REAR AXLE

92210-S076

$3.48

92210D

NUT

92210-S094

$4.29
