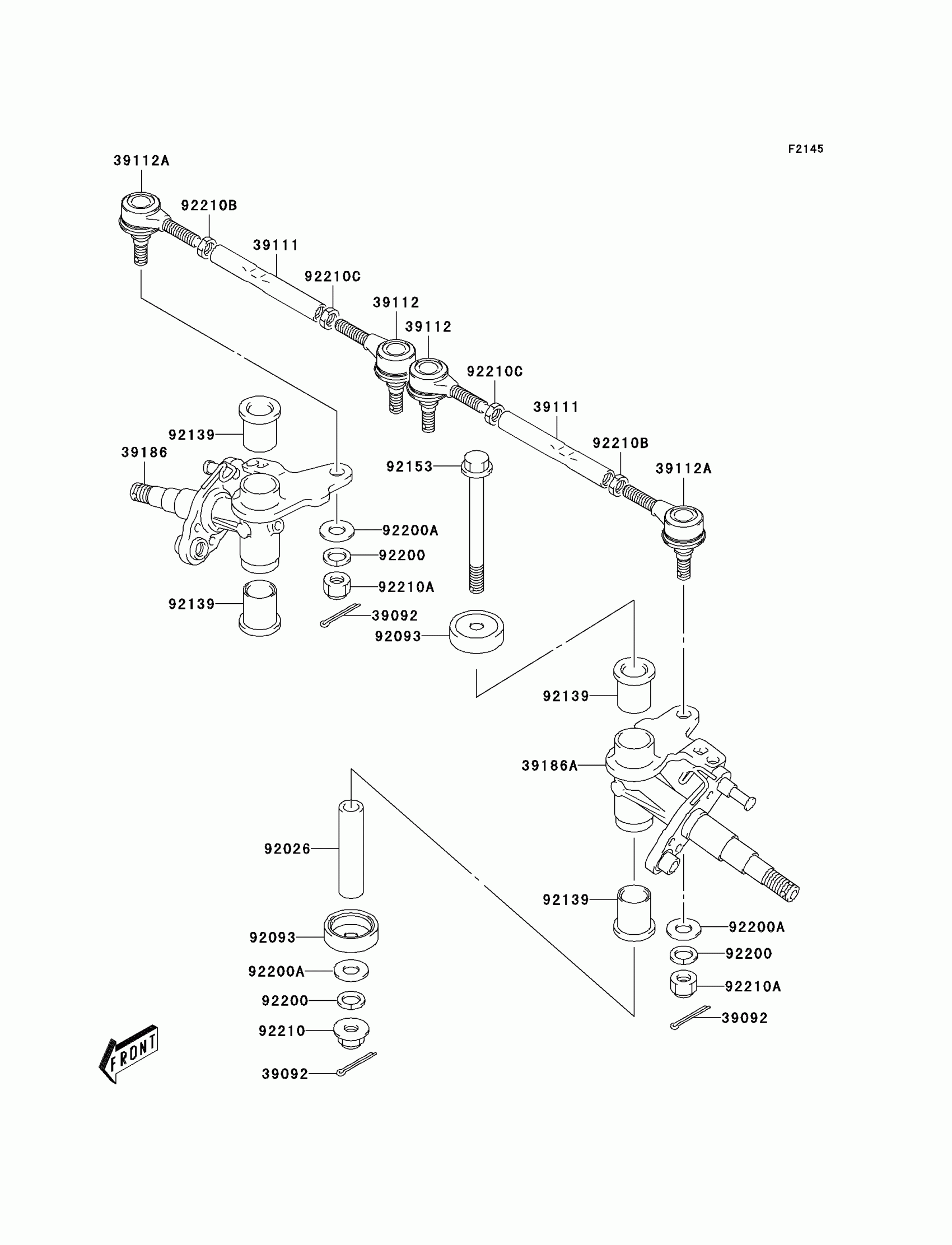

Kawasaki KFX50 Knuckle Arm Diagram

Description

Price

39092

PIN-HAIR,COTTER

39092-S005

$1.92

39111

ROD-TIE,STEERING

39111-S002

$22.31

39112

RODEND-TIE,RH

39112-S001

Unavailable

39112A

RODEND-TIE,LH

39112-S002

Unavailable

39186

KNUCKLE,RH

39186-S001

$241.31

39186A

KNUCKLE,LH

39186-S002

$241.31

92026

SPACER

92026-S060

$19.22

92093

SEAL,KNUCKLE ARM DUST

92093-S017

$5.15

92139

BUSHING

92139-S013

$22.22

92153

BOLT,KNUCKLE ARM

92153-S202

$10.61

92200

WASHER,STEERING SHAFT,LWR

92200-S096

$4.10

92200A

WASHER,ROD-END

92200-S097

$2.34

92210

NUT

92210-S036

$3.86

92210A

NUT,STEERING SHAFT

92210-S071

Unavailable

92210B

NUT,TIE-ROD

92210-S072

$1.68

92210C

NUT,TIE-ROD

92210-S073

Unavailable
