Description

Price

11065

CAP,WHEEL

11065-S022

$15.25

16126

VALVE,WHEEL RIM,TR412

16126-S002

$10.42

39092

PIN-HAIR

39092-S007

Unavailable

41009

TIRE

41009-S009

Unavailable

41025

RIM,FRONT WHEEL,B.SILVER

41025-S005-530

$152.25

41034

DRUM-ASSY,FR

41034-S003

$100.17

92026

SPACER,FRONT HUB BEARING

92026-S061

$4.61

92026A

SPACER,FRONT AXLE

92026-S062

$4.54

92045

BEARING-BALL,FRONT HUB

92045-S036

$28.57

92045A

BEARING-BALL,FRONT HUB

92045-S037

$32.51

92049

SEAL-OIL,22X40X6

92049-S032

$8.84

92049A

SEAL-OIL,FRONT HUB BRG

92049-S063

$6.61

92200

WASHER,WHEEL NUT

92200-S098

$2.48

92200A

WASHER,FRONT AXLE

92200-S099

$1.92

92210

NUT,FRONT AXLE

92210-S075

$3.48

92210A

NUT

92210-S094

$4.29

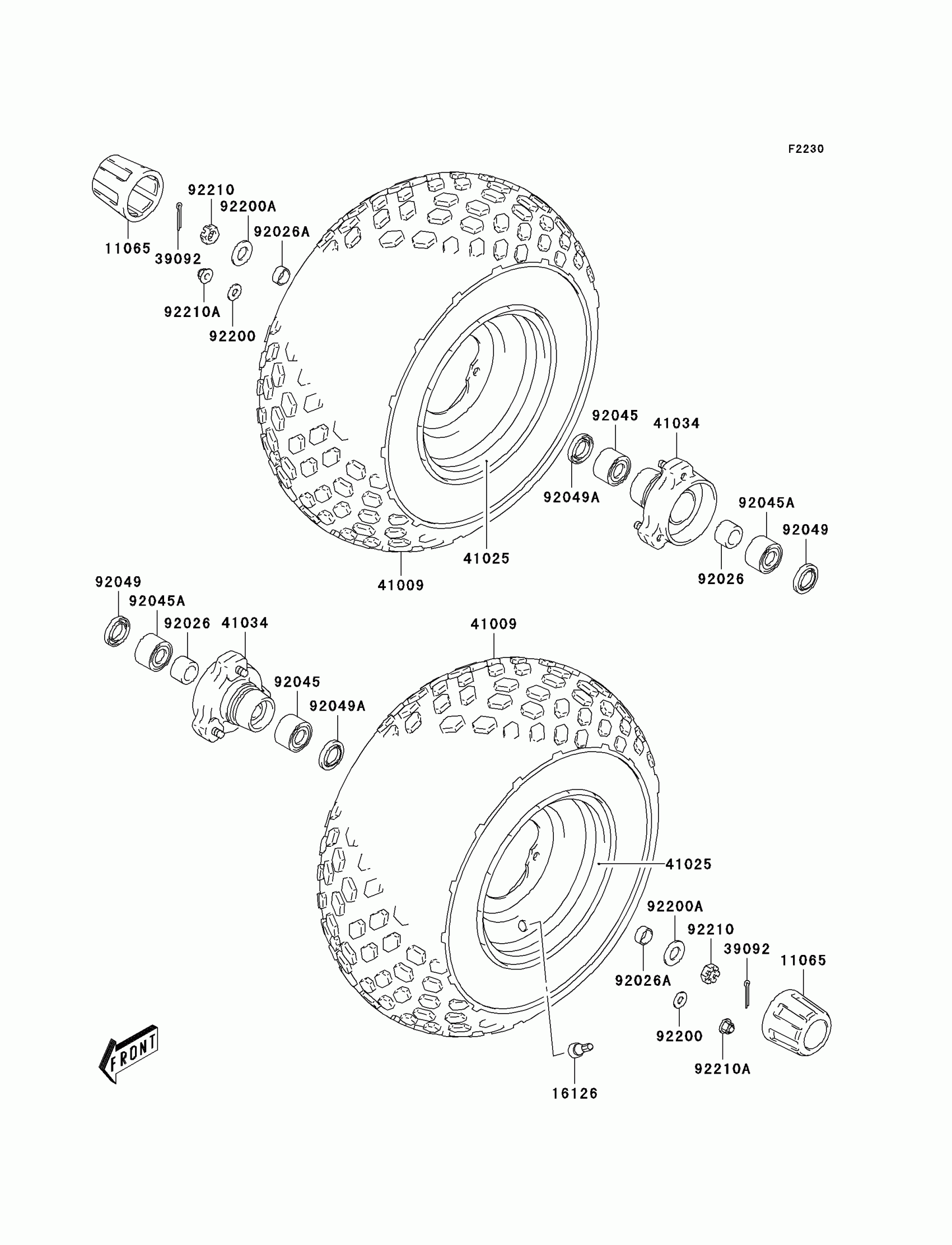

Kawasaki KFX50 Front Hub Diagram

CAP,WHEEL

VALVE,WHEEL RIM,TR412

PIN-HAIR

TIRE

RIM,FRONT WHEEL,B.SILVER

DRUM-ASSY,FR

SPACER,FRONT HUB BEARING

SPACER,FRONT AXLE

BEARING-BALL,FRONT HUB

BEARING-BALL,FRONT HUB

SEAL-OIL,22X40X6

SEAL-OIL,FRONT HUB BRG

WASHER,WHEEL NUT

WASHER,FRONT AXLE

NUT,FRONT AXLE

NUT
