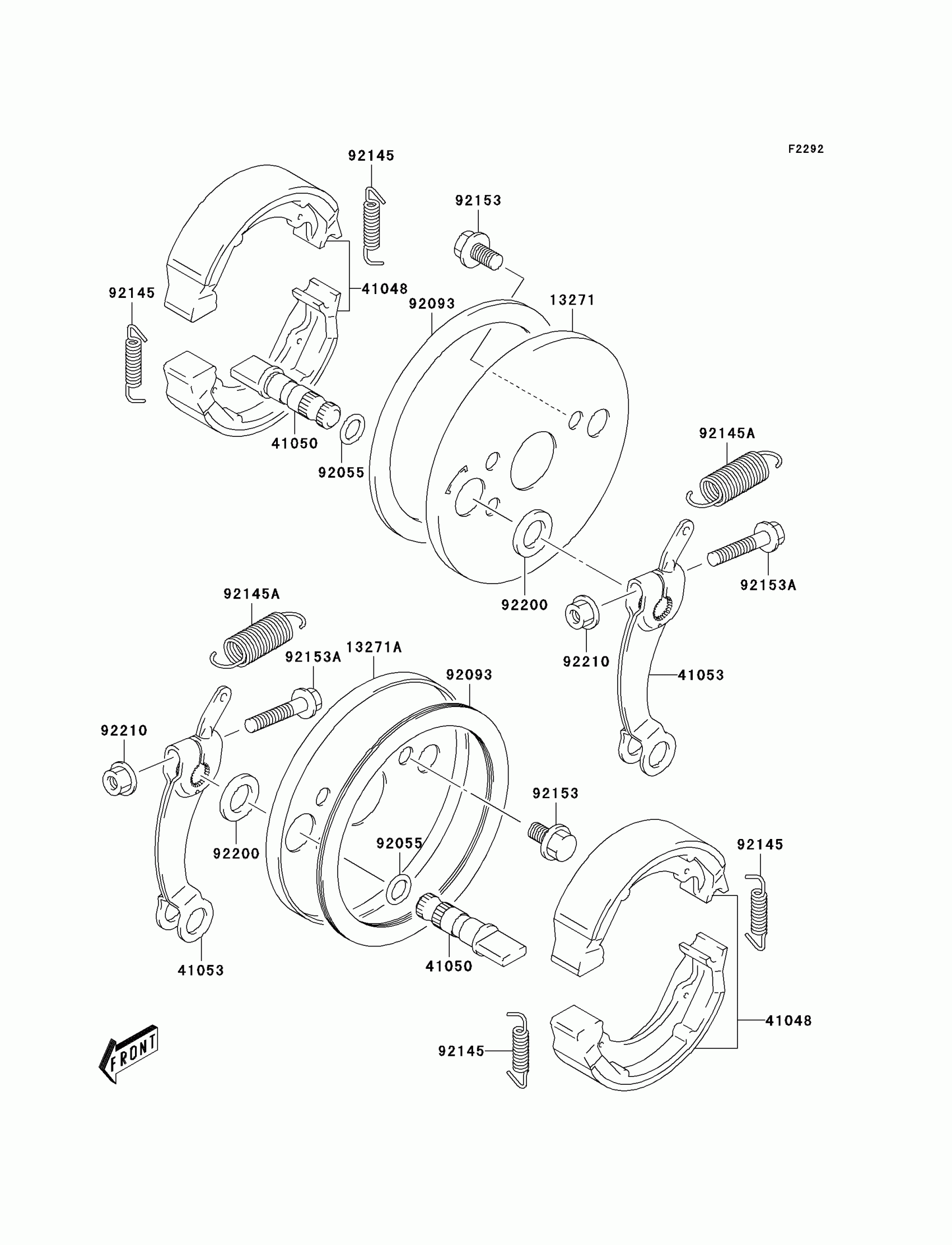

Kawasaki KFX50 Front Brake Diagram

Description

Price

13271

PLATE,FRONT BRAKE,RH

13271-S034

$16.19

13271A

PLATE,FRONT BRAKE,LH

13271-S035

$16.19

41048

SHOE-BRAKE

41048-S004

$27.64

41050

CAM-BRAKE

41050-S004

$15.41

41053

LEVER-BRAKE CAM

41053-S004

$18.75

92055

RING-O,BRAKE CAM DUST

92055-S040

$4.56

92093

SEAL,FRONT BRAKE DUST

92093-S018

$27.40

92145

SPRING,BRAKE SHOE

92145-S066

$2.53

92145A

SPRING,BRAKE CAM LEVER

92145-S067

$5.24

92153

BOLT

92153-S143

$1.92

92153A

BOLT,BRAKE CAM LEVER

92153-S203

$2.48

92200

WASHER,MAGNETO

92200-S092

$1.92

92210

NUT

92210-S067

$1.92
