Description

Price

13001

PISTON-ENGINE

13001-S004

$60.29

13002

PIN-PISTON,PISTON

13002-S004

$7.91

13008

RING-SET-PISTON,STD

13008-S004

$26.57

13008A

RING-SET-PISTON,O/S 0.50

13008-S009

$27.46

13008B

RING-SET-PISTON,O/S 1.00

13008-S010

$27.46

13031

CRANKSHAFT-COMP

13031-S004

$304.51

13032

ROD-CONNECTING

13032-S004

$61.00

13033

BEARING-SMALL END

13033-S001

$11.70

13034

BEARING-BIG END

13034-S004

$13.62

13035

PIN-CRANK,CRANK

13035-S004

$15.12

13037

CRANKSHAFT,RH

13037-S007

$103.65

13037A

CRANKSHAFT,LH

13037-S008

$103.65

92033

RING-SNAP,PISTON PIN

92033-S024

$1.74

92045

BEARING-BALL,17X40X12

92045-S035

$19.13

92049

SEAL-OIL,CRANKSHAFT OIL,LH

92049-S028

$9.94

92049A

SEAL-OIL,CRANKSHAFT OIL,RH

92049-S029

$6.47

99996

PISTON,O/S 0.50

99996-S008

$77.17

99996A

PISTON,O/S 1.00

99996-S009

$74.89

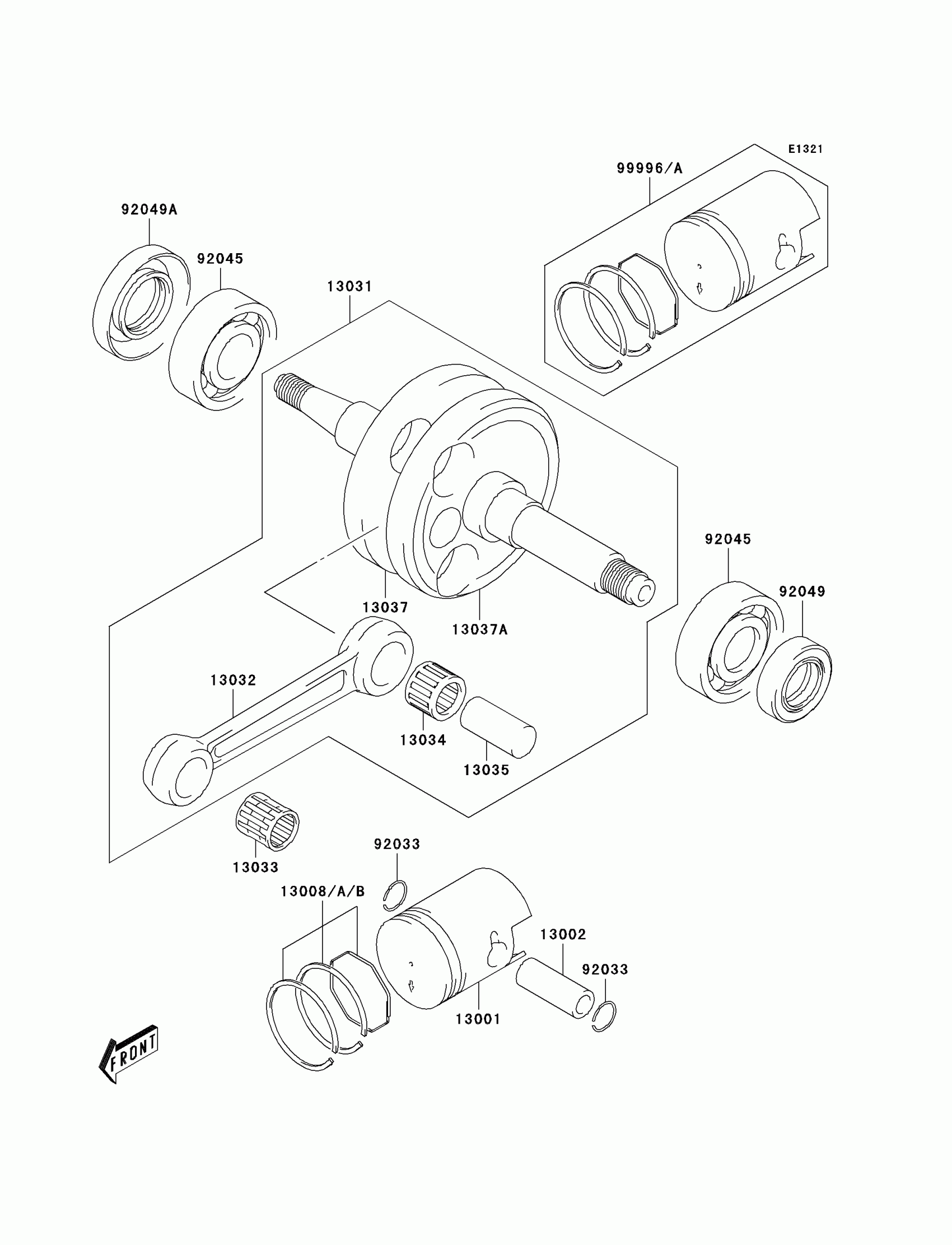

Kawasaki KFX50 Crankshaft Diagram
