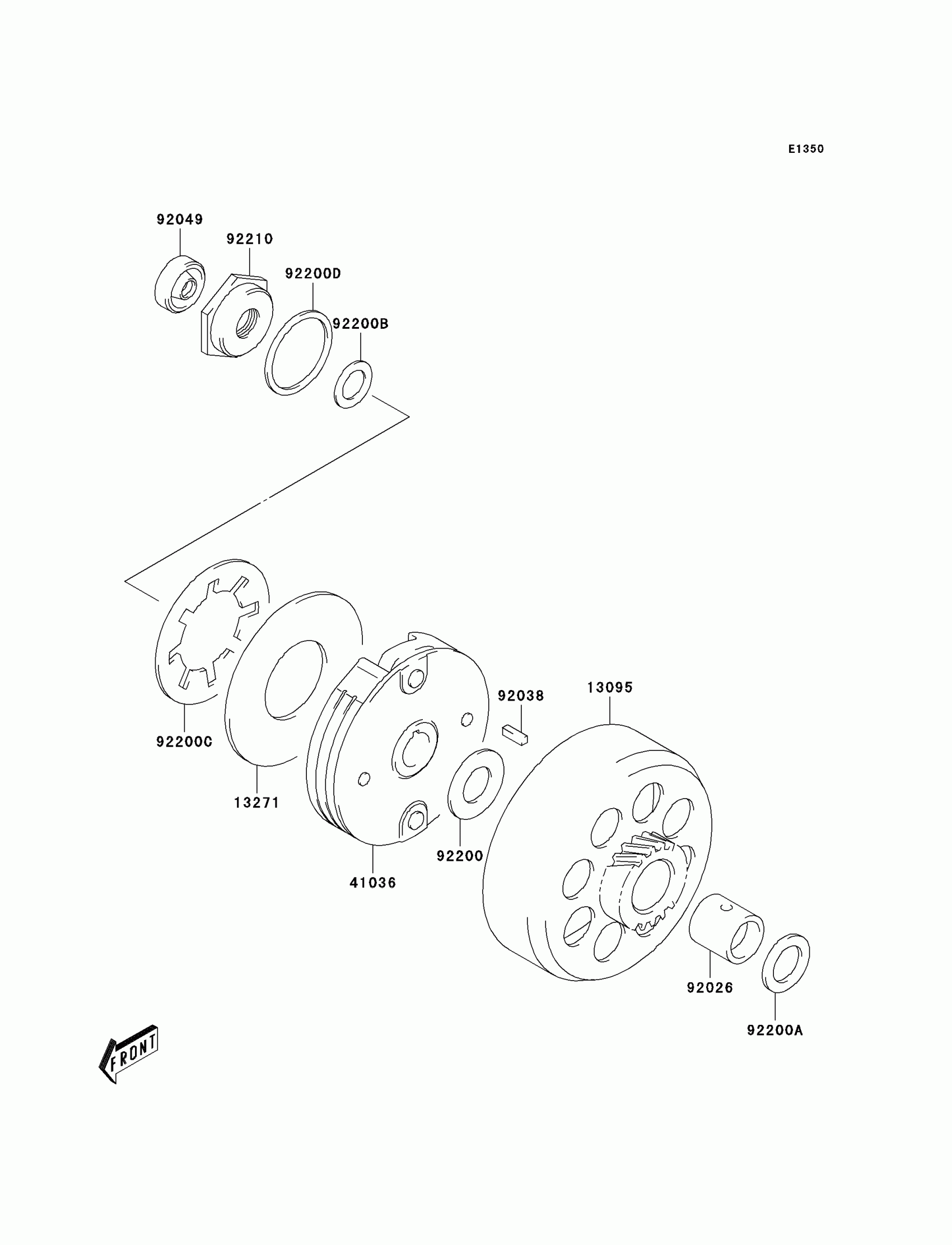

Kawasaki KFX50 Clutch Diagram

Description

Price

13095

HOUSING-COMP-CLUTCH

13095-S004

$104.97

13271

PLATE,CLUTCH

13271-S028

$11.41

41036

HUB-ASSY

41036-S004

$175.42

92026

SPACER,DRIVEN GEAR

92026-S056

$14.16

92038

KEY,CLUTCH

92038-S004

$3.45

92049

SEAL-OIL,CLUTCH COVER

92049-S030

$2.76

92200

WASHER,DRIVEN GEAR

92200-S085

$3.92

92200A

WASHER,14X29X1.50

92200-S086

$4.58

92200B

WASHER,CLUTCH

92200-S087

$2.53

92200C

WASHER,CLUTCH

92200-S088

$8.40

92200D

WASHER,CLUTCH

92200-S089

$5.19

92210

NUT,CLUTCH

92210-S069

$16.59
