Description

Price

11061

GASKET

11061-S048

$2.15

11061A

GASKET

11061-S049

$3.45

11065

CAP

11065-S020

$3.40

11065A

CAP,STARTER

11065-S021

$4.20

11065B

CAP,LEVER

11065-S043

$5.70

13168

LEVER,STARTER

13168-S002

$16.11

15003

CARBURETOR-ASSY

15003-S004

$137.86

16005

TOP-CHAMBER

16005-S009

$28.48

16014

SCREW-PILOT AIR

16014-S004

$13.09

16016

PLUNGER

16016-S004

$14.07

16017

JET-NEEDLE,E-6

16017-S003

$21.26

16021

SCREW-THROTTLE STOP

16021-S003

$7.25

16030

VALVE-FLOAT

16030-S004

$25.41

16031

FLOAT

16031-S004

$25.41

16126

VALVE,CA 3.0

16126-S006

$39.46

16187

NEEDLE-JET,3E3-4

16187-S005

$17.61

43058

RING,THROTTLE VALVE SPRING

43058-S003

$7.32

43058A

RING

43058-S004

$6.13

92033

RING-SNAP,NEEDLE

92033-S025

$4.99

92043

PIN

92043-S027

$4.60

92055

RING-O,FLOAT CHAMBER

92055-S039

$9.32

92063

JET-MAIN,#55

92063-S003

$11.08

92064

JET-PILOT,#0.38

92064-S004

$8.69

92064A

JET-PILOT,#15

92064-S005

$16.59

92140

BALL

92140-S002

$2.42

92145

SPRING,STARTER SHAFT

92145-S012

$4.60

92145A

SPRING

92145-S060

$5.66

92145B

SPRING,STARTER VALVE

92145-S061

$6.25

92145C

SPRING,THROTTLE VALVE

92145-S062

$5.47

92172

SCREW,OIL PUMP

92172-S121

Unavailable

92172A

SCREW

92172-S124

$6.25

92172B

SCREW

92172-S125

$4.20

92172C

SCREW

92172-S126

$4.20

92172D

SCREW

92172-S246

$4.10

92191

TUBE,VACUUM

92191-S038

$13.02

92191A

TUBE

92191-S041

$7.25

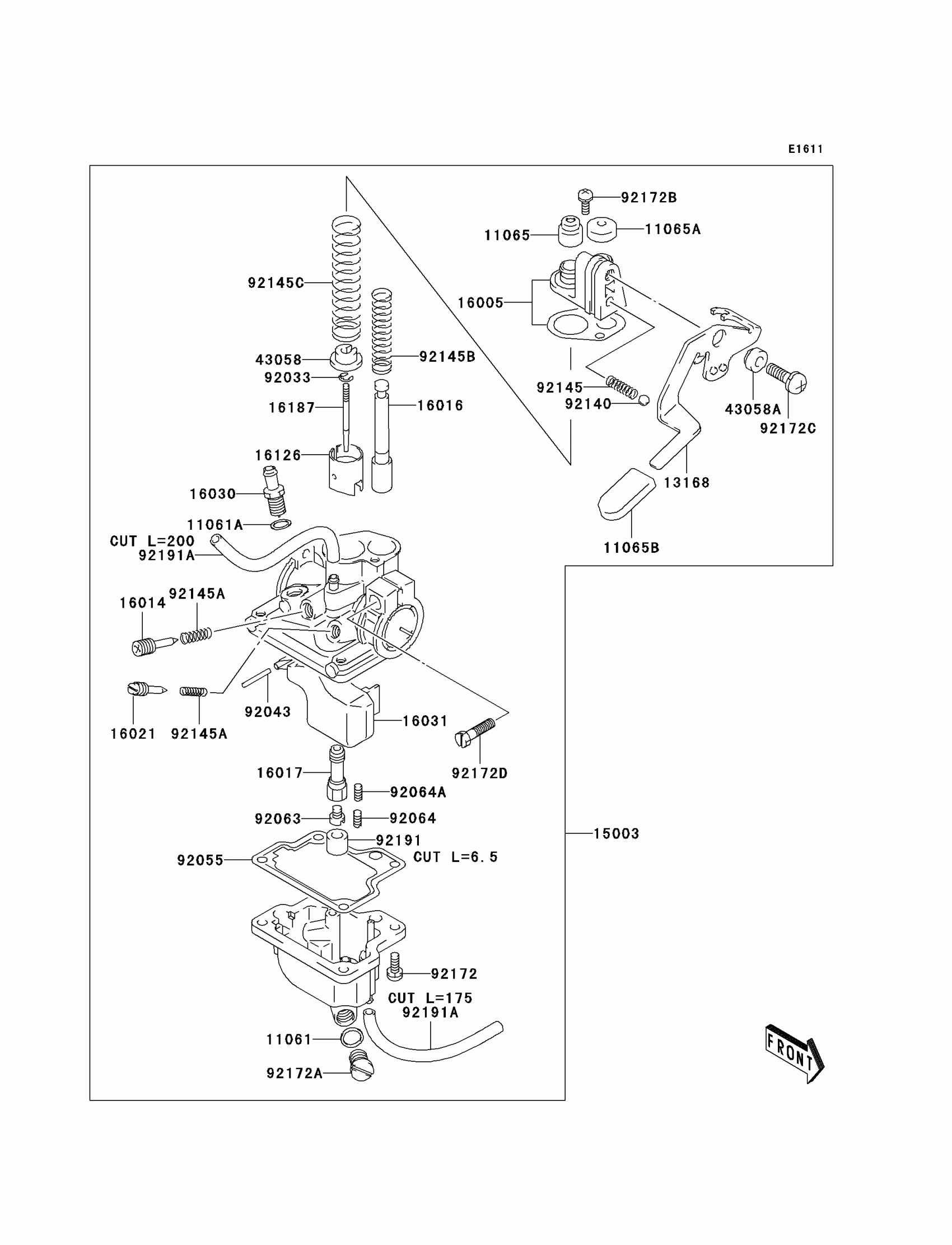

Kawasaki KFX50 Carburetor Diagram

GASKET

GASKET

CAP

CAP,STARTER

CAP,LEVER

LEVER,STARTER

CARBURETOR-ASSY

TOP-CHAMBER

SCREW-PILOT AIR

PLUNGER

JET-NEEDLE,E-6

SCREW-THROTTLE STOP

VALVE-FLOAT

FLOAT

VALVE,CA 3.0

NEEDLE-JET,3E3-4

RING,THROTTLE VALVE SPRING

RING

RING-SNAP,NEEDLE

PIN

RING-O,FLOAT CHAMBER

JET-MAIN,#55

JET-PILOT,#0.38

JET-PILOT,#15

BALL

SPRING,STARTER SHAFT

SPRING

SPRING,STARTER VALVE

SPRING,THROTTLE VALVE

SCREW,OIL PUMP

SCREW

SCREW

SCREW

SCREW

TUBE,VACUUM

TUBE
