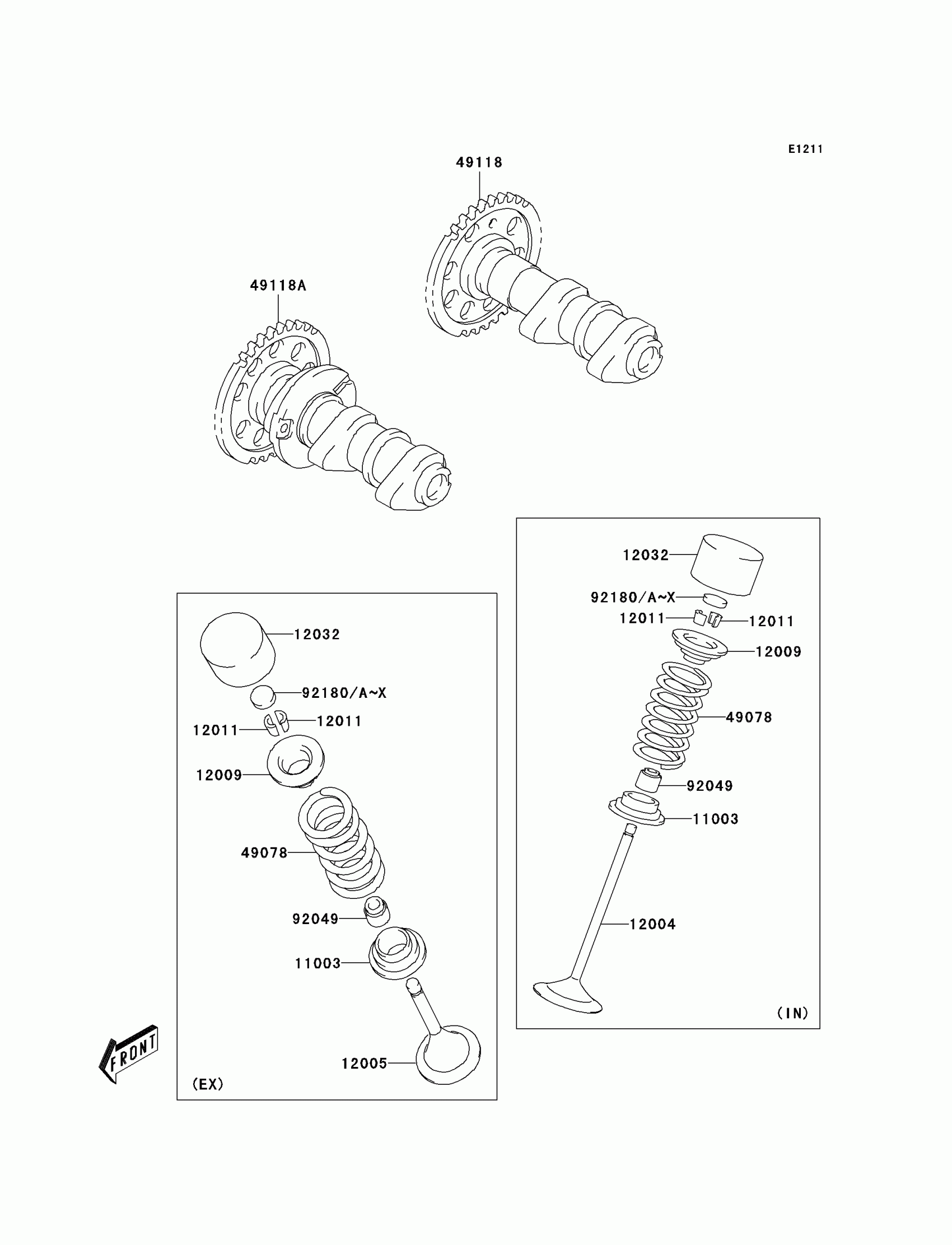

Kawasaki KFX400 Valve(s)/Camshaft(s) Diagram
#
11003
SEAT-VALVE
11003-S003
$6.91
12004
VALVE-INTAKE
12004-S004
$39.11
12005
VALVE-EXHAUST
12005-S004
$68.13
12009
RETAINER-VALVE SPRING
12009-S005
$16.01
12011
COLLET,VALVE
12011-S003
$2.53
12032
TAPPET
12032-S001
$71.72
49078
SPRING-ENGINE VALVE
49078-S004
$14.03
49118
CAMSHAFT-COMP,INTAKE
49118-S005
$231.84
49118A
CAMSHAFT-COMP,EXHAUST
49118-S016
$438.38
92049
SEAL-OIL,OIL
92049-S006
$7.18
92180
SHIM,T=2.30
92180-S018
$10.20
92180A
SHIM,T=2.35
92180-S019
$10.13
92180B
SHIM,T=2.40
92180-S020
$10.13
92180C
SHIM,T=2.45
92180-S021
$10.13
92180D
SHIM,T=2.50
92180-S022
$10.13
92180E
SHIM,T=2.55
92180-S023
$10.13
92180F
SHIM,T=2.60
92180-S024
$10.13
92180G
SHIM,T=2.65
92180-S025
$10.13
92180H
SHIM,T=2.70
92180-S026
$10.13
92180I
SHIM,T=2.75
92180-S027
$10.13
92180J
SHIM,T=2.80
92180-S028
$10.13
92180K
SHIM,T=2.85
92180-S029
$10.13
92180L
SHIM,T=2.90
92180-S030
$10.20
92180M
SHIM,T=2.95
92180-S031
$10.13
92180N
SHIM,T=3.00
92180-S032
$10.13
92180O
SHIM,T=3.05
92180-S033
$10.13
92180P
SHIM,T=3.10
92180-S034
$10.13
92180Q
SHIM,T=3.15
92180-S035
$10.20
92180R
SHIM,T=3.20
92180-S036
$10.13
92180S
SHIM,T=3.25
92180-S037
$10.20
92180T
SHIM,T=3.30
92180-S038
$10.13
92180U
SHIM,T=3.35
92180-S039
$10.13
92180V
SHIM,T=3.40
92180-S040
$10.13
92180W
SHIM,T=3.45
92180-S041
$10.13
92180X
SHIM,T=3.50
92180-S042
$10.13
