Description

Price

13107

SHAFT,REVERSE IDLE

13107-S005

$32.58

13127

SHAFT-TRANSMISSION INPUT

13127-S006

$203.55

13128

SHAFT-TRANSMISSION OUTPUT

13128-S008

$147.86

13139

SHIFTER,REVERSE

13139-S002

$47.01

13144

SPROCKET-OUTPUT,14T

13144-S006

$30.50

13262

GEAR,INPUT,2ND,18T

13262-S011

$87.74

13262A

GEAR,INPUT,3RD,21T

13262-S012

$103.65

13262B

GEAR,INPUT,4TH,23T

13262-S013

$87.74

13262C

GEAR,INPUT,5TH,26T

13262-S014

$87.74

13262D

GEAR,OUTPUT,LOW,33T

13262-S015

$91.91

13262E

GEAR,OUTPUT,2ND,30T

13262-S016

$91.91

13262F

GEAR,OUTPUT,3RD,26T

13262-S017

$96.03

13262G

GEAR,OUTPUT,4TH,23T

13262-S018

Unavailable

13262H

GEAR,OUTPUT,5TH,22T

13262-S019

$103.65

13262I

GEAR,REVERSE,24T

13262-S020

$70.08

13262J

GEAR,REVERSE,28T

13262-S033

$94.88

13271

PLATE

13271-S047

$5.92

14020

RETAINER

14020-S007

$6.76

14020A

RETAINER

14020-S010

$8.49

92033

RING-SNAP

92033-S034

Unavailable

92033A

RING-SNAP

92033-S039

$3.64

92045

BEARING-BALL,17X40X12

92045-S035

$19.13

92045A

BEARING-BALL

92045-S051

$35.11

92045B

BEARING-BALL

92045-S052

$39.39

92045C

BEARING-BALL

92045-S053

$60.78

92049

SEAL-OIL,DRIVE SHAFT

92049-S051

$43.21

92057A

CHAIN,DRIVE(RK520SM0Z10S)

92057-S018

$147.21

92058A

JOINT-CHAIN

92058-S006

$15.64

92139

BUSHING

92139-S022

$15.79

92139A

BUSHING,2ND GEAR

92139-S023

$14.07

92139B

BUSHING

92139-S025

$15.66

92139C

BUSHING,REVERSE IDLE GEAR

92139-S026

$18.15

92139D

BUSHING,3RD GEAR

92139-S027

$19.22

92153

BOLT,ENGINE SPROCKET

92153-S284

$7.32

92172

SCREW

92172-S112

$2.70

92172A

SCREW,RETAINER

92172-S171

$2.53

92180

SHIM,REVERSE IDLE GEAR

92180-S013

$3.53

92180A

SHIM,17X30X1.0

92180-S014

$3.53

92180B

SHIM,20X30X1.0

92180-S015

$3.14

92180C

SHIM,5TH GEAR

92180-S016

$3.45

92180D

SHIM,2ND GEAR

92180-S017

$3.72

92180E

SHIM,REVERSE IDLE GEAR

92180-S046

$3.72

92200

WASHER,REVERSE GEAR

92200-S142

$6.10

92200A

WASHER

92200-S145

$3.64

92200B

WASHER,3RD GEAR

92200-S146

$3.64

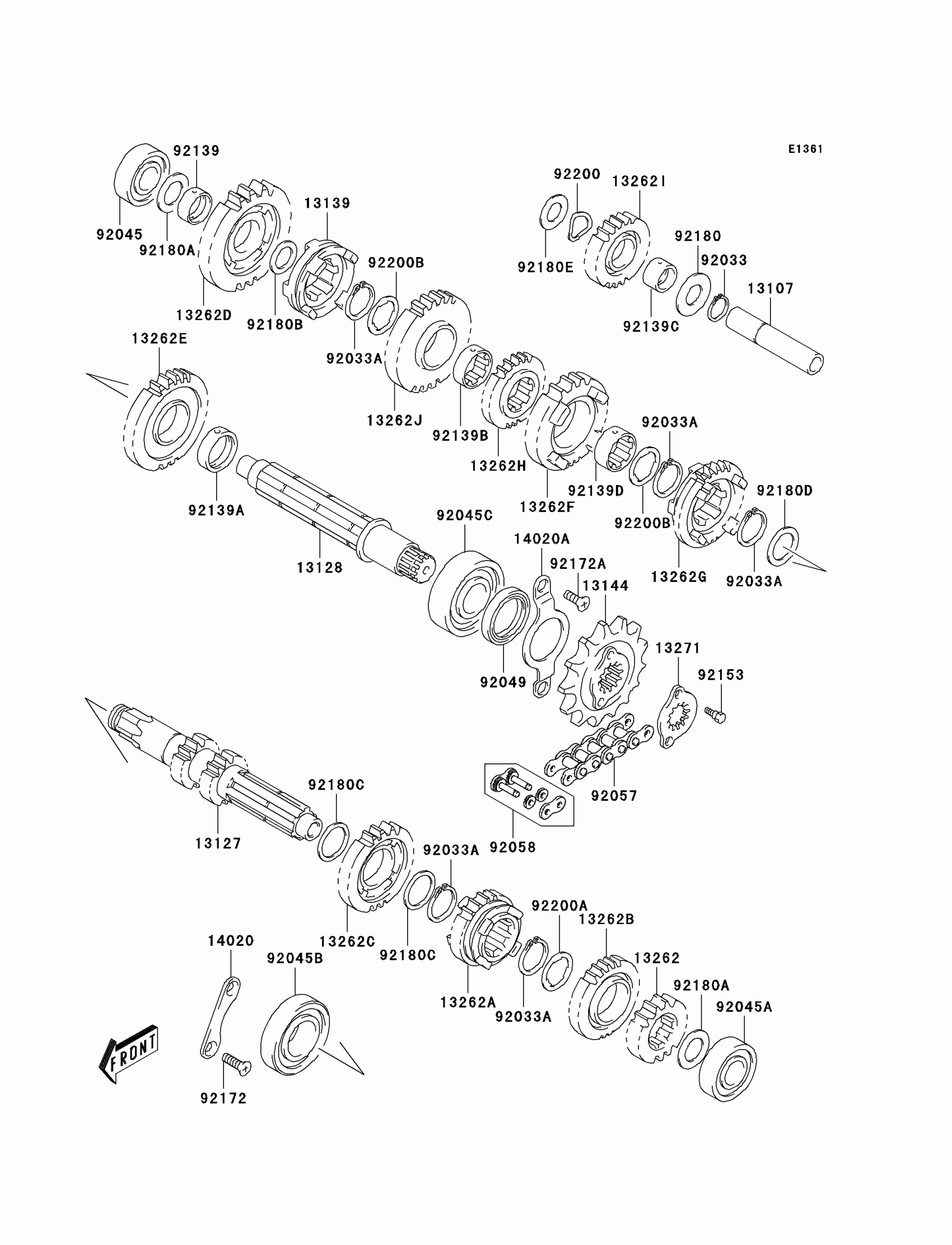

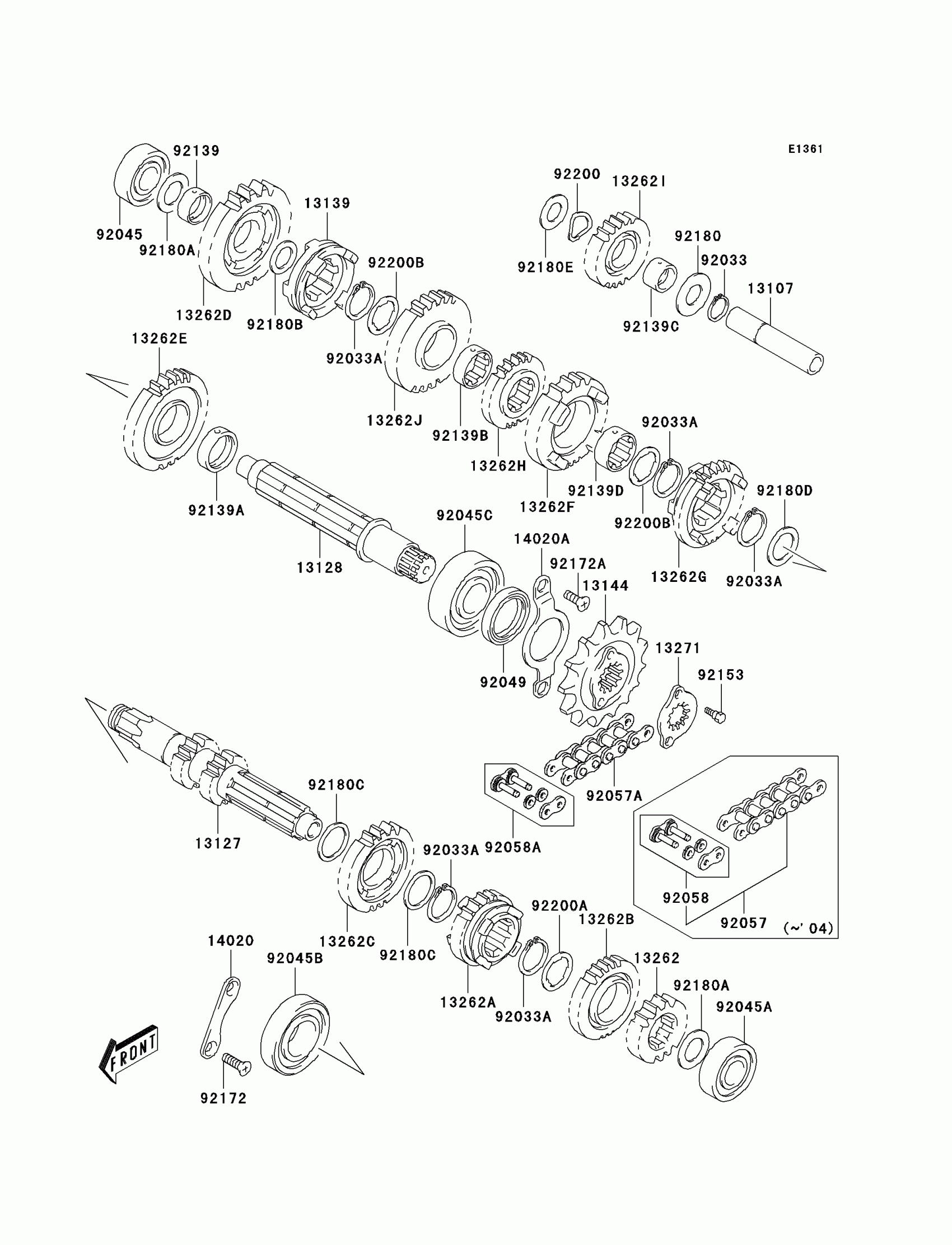

Kawasaki KFX400 Transmission Diagram

SHAFT,REVERSE IDLE

SHAFT-TRANSMISSION INPUT

SHAFT-TRANSMISSION OUTPUT

SHIFTER,REVERSE

SPROCKET-OUTPUT,14T

GEAR,INPUT,2ND,18T

GEAR,INPUT,3RD,21T

GEAR,INPUT,4TH,23T

GEAR,INPUT,5TH,26T

GEAR,OUTPUT,LOW,33T

GEAR,OUTPUT,2ND,30T

GEAR,OUTPUT,3RD,26T

GEAR,OUTPUT,4TH,23T

GEAR,OUTPUT,5TH,22T

GEAR,REVERSE,24T

GEAR,REVERSE,28T

PLATE

RETAINER

RETAINER

RING-SNAP

RING-SNAP

BEARING-BALL,17X40X12

BEARING-BALL

BEARING-BALL

BEARING-BALL

SEAL-OIL,DRIVE SHAFT

CHAIN,DRIVE(RK520SM0Z10S)

JOINT-CHAIN

BUSHING

BUSHING,2ND GEAR

BUSHING

BUSHING,REVERSE IDLE GEAR

BUSHING,3RD GEAR

BOLT,ENGINE SPROCKET

SCREW

SCREW,RETAINER

SHIM,REVERSE IDLE GEAR

SHIM,17X30X1.0

SHIM,20X30X1.0

SHIM,5TH GEAR

SHIM,2ND GEAR

SHIM,REVERSE IDLE GEAR

WASHER,REVERSE GEAR

WASHER

WASHER,3RD GEAR
