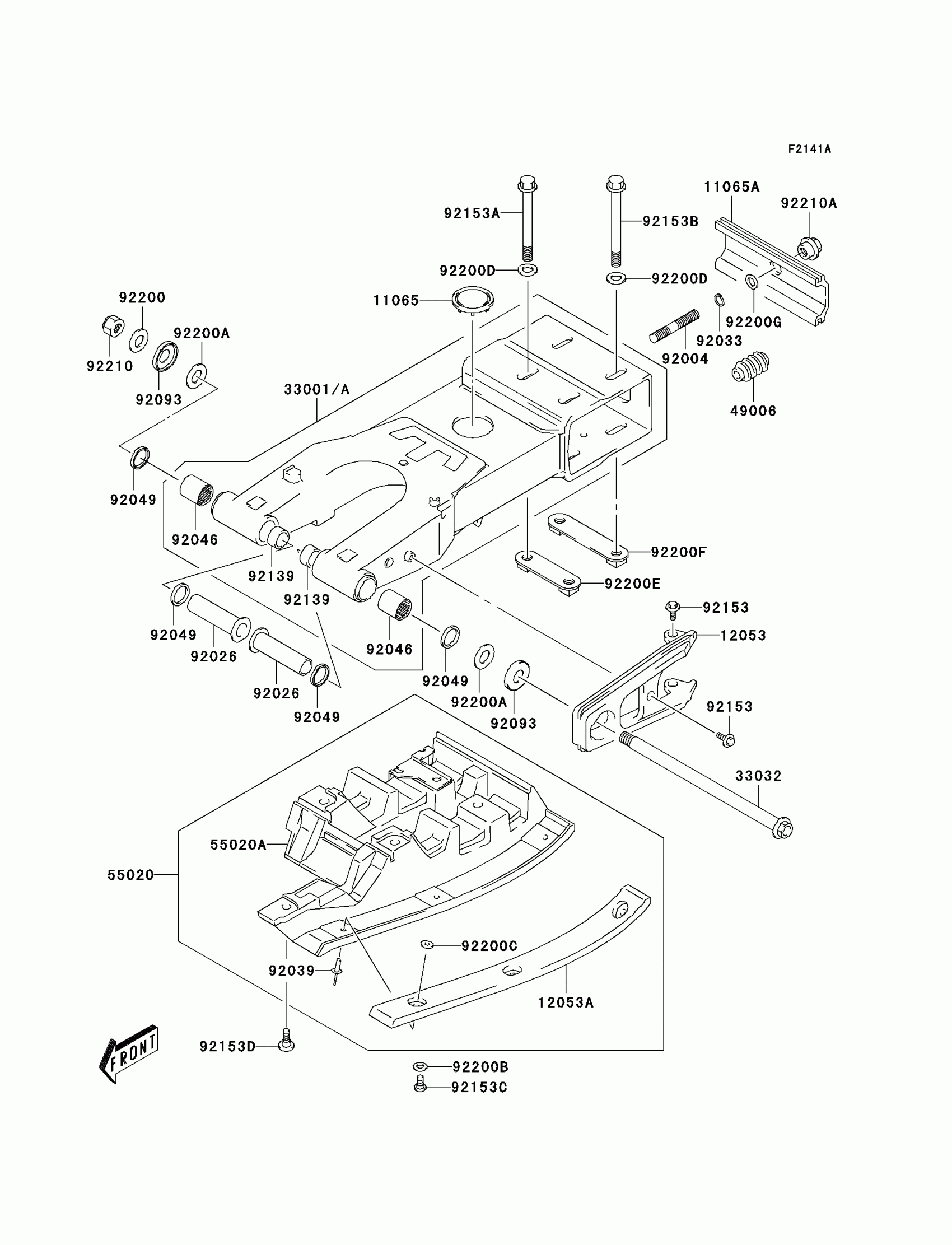

Find the part on the Swingarm diagram for your 2005 Kawasaki KFX400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KFX400 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,SWINGING ARM

11065-S038

1
Out of stock

11065A

CAP,CHAIN ADJUSTER

11065-S064

1
Out of stock

12053

GUIDE-CHAIN

12053-S017

1
Out of stock

12053A

GUIDE-CHAIN

12053-S024

1
Out of stock

33001A

ARM-COMP-SWING

33001-S016

1
Out of stock

33032

SHAFT-SWING ARM

33032-S007

1
Out of stock

49006

BOOT

49006-S038

1
Out of stock

55020

GUARD,SWING ARM

55020-S035

1
Out of stock

55020A

GUARD,SWING ARM

55020-S036

1
Out of stock

92004

STUD,CHAIN ADJUSTER

92004-S014

1
Out of stock

92026

SPACER

92026-S100

1
Out of stock

92033

RING-SNAP

92033-S002

1
Out of stock

92039

RIVET

92039-S011

1
Out of stock

92046

BEARING-NEEDLE,SWING ARM

92046-S019

1
Out of stock

92049

SEAL-OIL,SWING ARM

92049-S053

1
Out of stock

92093

SEAL

92093-S040

1
Out of stock

92139

BUSHING

92139-S029

1
Out of stock

92153

BOLT

92153-S306

1
Out of stock

92153A

BOLT

92153-S373

1
Out of stock

92153B

BOLT

92153-S374

1
Out of stock

92153C

BOLT,GUARD CENTER

92153-S398

1
Out of stock

92153D

BOLT

92153-S399

1
Out of stock

92200

WASHER,16.2X30X2.6

92200-S011

1
Out of stock

92200A

WASHER

92200-S054

1
Out of stock

92200B

WASHER,MAGNETO

92200-S092

1
Out of stock

92200C

WASHER

92200-S215

1
Out of stock

92200D

WASHER

92200-S225

1
Out of stock

92200E

WASHER

92200-S226

1
Out of stock

92200F

WASHER

92200-S227

1
Out of stock

92200G

WASHER

92200-S234

1
Out of stock

92210

NUT

92210-S133

1
Out of stock

92210A

NUT

92210-S146

1
Out of stock
