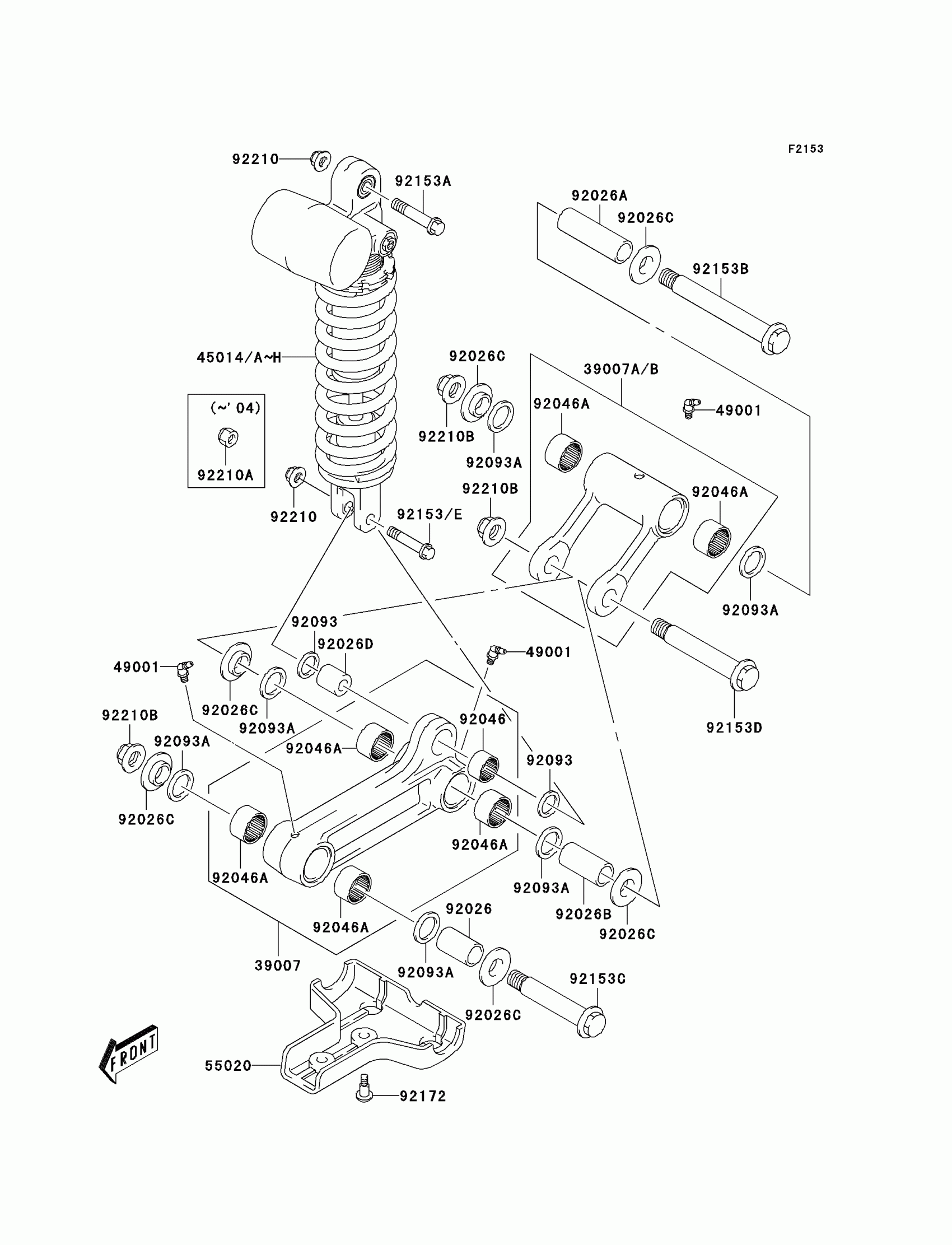

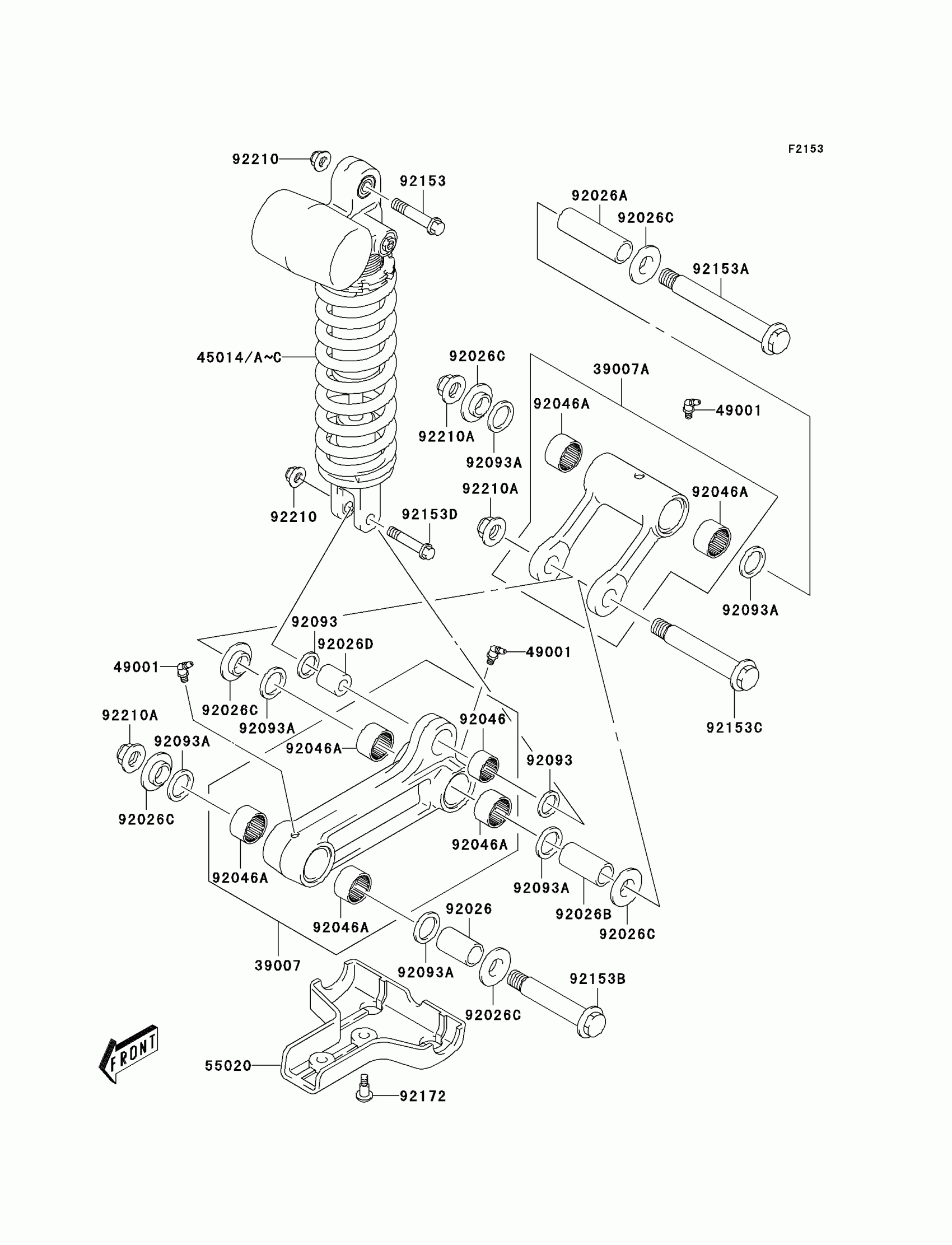

Kawasaki KFX400 Rear Suspension Diagram
#
Description
Price
39007
ARM-SUSP
39007-S011
$330.19
39007A
ARM-SUSP
39007-S019
$204.68
49001
NIPPLE-GREASE
49001-S003
Unavailable
55020
GUARD
55020-S019
$24.50
92026
SPACER
92026-S101
$18.17
92026A
SPACER
92026-S102
$24.07
92026B
SPACER
92026-S103
$20.47
92026C
SPACER
92026-S104
$16.35
92026D
SPACER
92026-S105
$14.39
92046
BEARING-NEEDLE
92046-S017
$25.21
92046A
BEARING-NEEDLE
92046-S018
$18.66
92093
SEAL
92093-S032
$5.29
92093A
SEAL
92093-S041
$6.91
92153
BOLT
92153-S300
$4.52
92153A
BOLT
92153-S301
$25.29
92153B
BOLT
92153-S303
$20.78
92153C
BOLT
92153-S307
$21.89
92153D
BOLT,10X47.5
92153-S355
$4.23
92172
SCREW
92172-S175
$3.64
92210
NUT
92210-S015
$5.75
92210A
NUT
92210-S106
$7.76
45014
SHOCKABSORBER,S.WHITE
45014-S045-573
$1,129.31
45014A
SHOCKABSORBER,L.GREEN
45014-S045-908
$1,129.31
45014B
SHOCKABSORBER,S.WHITE
45014-S046-573
Unavailable
45014C
SHOCKABSORBER,L.GREEN
45014-S046-908
Unavailable
