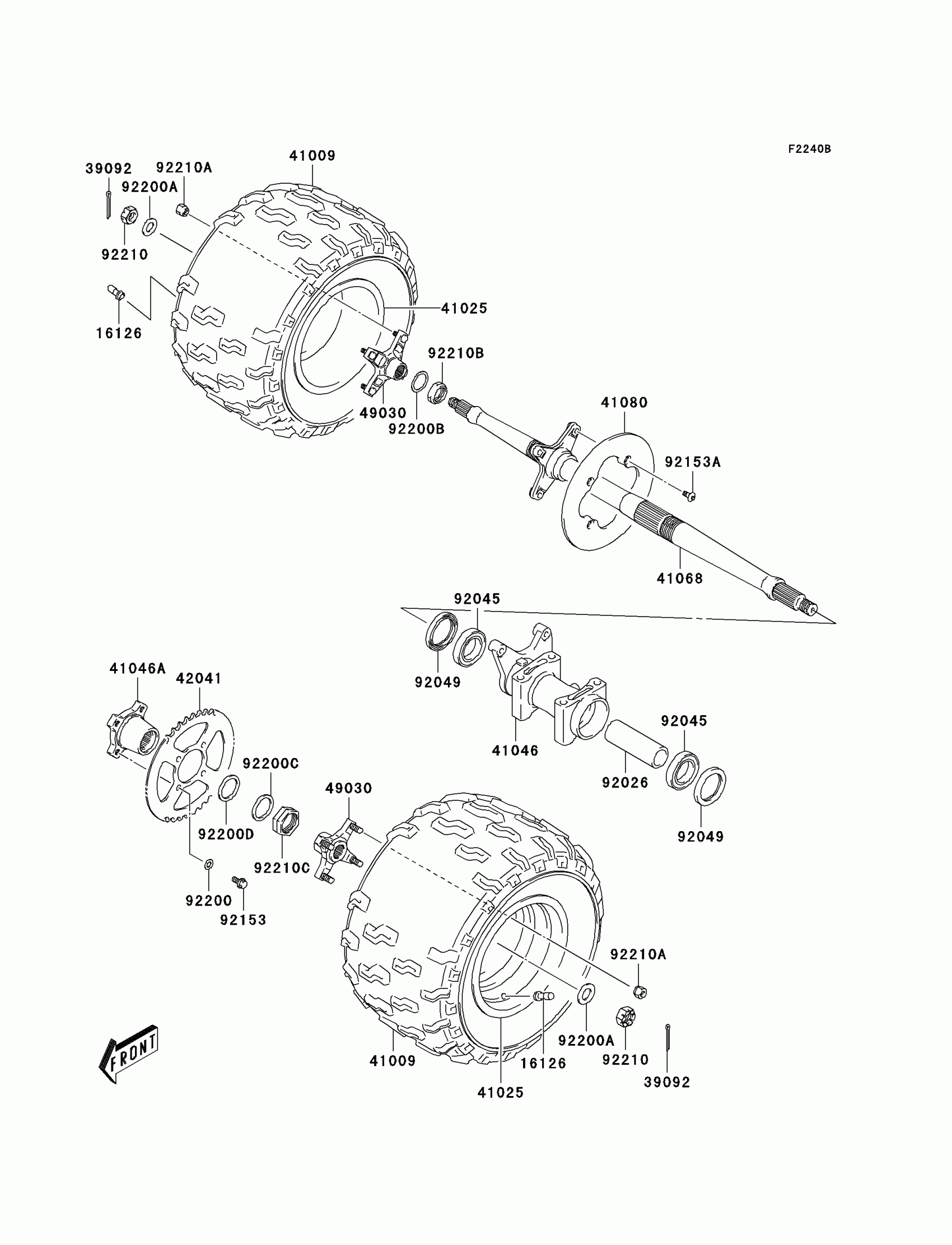

Kawasaki KFX400 Rear Hub(A3) Diagram
#
Description
Price
16126
VALVE,WHEEL RIM,TR412
16126-S002
$10.42
39092
PIN-HAIR,REAR HUB
39092-S010
Unavailable
41009
TIRE,RR
41009-S013
Unavailable
41025
RIM,REAR WHEEL
41025-S021
$339.82
41046
HOUSING-BEARING
41046-S007
$180.14
41046A
HOUSING-BEARING
41046-S009
$147.24
41068
AXLE,RR
41068-S019
Unavailable
41080
DISC,REAR BRAKE
41080-S006
$181.20
42041
SPROCKET-HUB
42041-S011
$63.35
49030
HUB,RR,F.GRAY
49030-S006-563
$147.24
92026
SPACER,REAR AXLE
92026-S106
$50.29
92045
BEARING-BALL,REAR AXLE
92045-S049
$46.11
92049
SEAL-OIL,AXLE
92049-S052
$22.34
92153
BOLT,REAR SPROCKET
92153-S277
$5.03
92153A
BOLT
92153-S283
$4.60
92200
WASHER,REAR SPROCKET
92200-S139
$4.56
92200A
WASHER,REAR HUB
92200-S141
$4.22
92200B
WASHER,REAR AXLE
92200-S143
$6.47
92200C
WASHER
92200-S278
$9.03
92200D
WASHER
92200-S279
$8.98
92210
NUT,REAR HUB
92210-S113
$6.25
92210A
NUT
92210-S179
$4.29
92210B
NUT
92210-S180
$28.35
92210C
NUT,REAR AXLE
92210-S181
$83.49
