Description

Price

11053

BRACKET

11053-S020

$43.96

21083

ARM

21083-S002

$18.21

43048

PISTON-CALIPER

43048-S005

$57.46

43049

PACKING,PISTON

43049-S008

$10.92

43049A

PACKING

43049-S009

$140.53

43049B

PACKING

43049-S010

$9.23

43056

BREATHER-BRAKE

43056-S002

$9.32

43057

CAP-BREATHER,BLEEDER

43057-S002

$6.55

43080

CALIPER-SUB-ASSY,RR

43080-S005

$290.38

43082

PAD-ASSY-BRAKE

43082-S007

$63.45

49006

BOOT

49006-S007

$9.41

49006A

BOOT

49006-S021

$7.32

49006B

BOOT

49006-S025

$6.87

92043

PIN

92043-S043

$6.87

92043A

PIN

92043-S044

$23.21

92055

RING-O

92055-S070

$5.03

92145

SPRING

92145-S105

$3.51

92145A

SPRING,PAD

92145-S106

$11.15

92145B

SPRING

92145-S108

$8.27

92153

BOLT

92153-S297

$9.14

92153A

BOLT

92153-S308

$8.73

92153B

BOLT

92153-S375

$7.04

92153C

BOLT

92153-S471

$4.49

92200

WASHER

92200-S159

$2.25

92200A

WASHER

92200-S160

$4.47

92210

NUT

92210-S111

$5.03

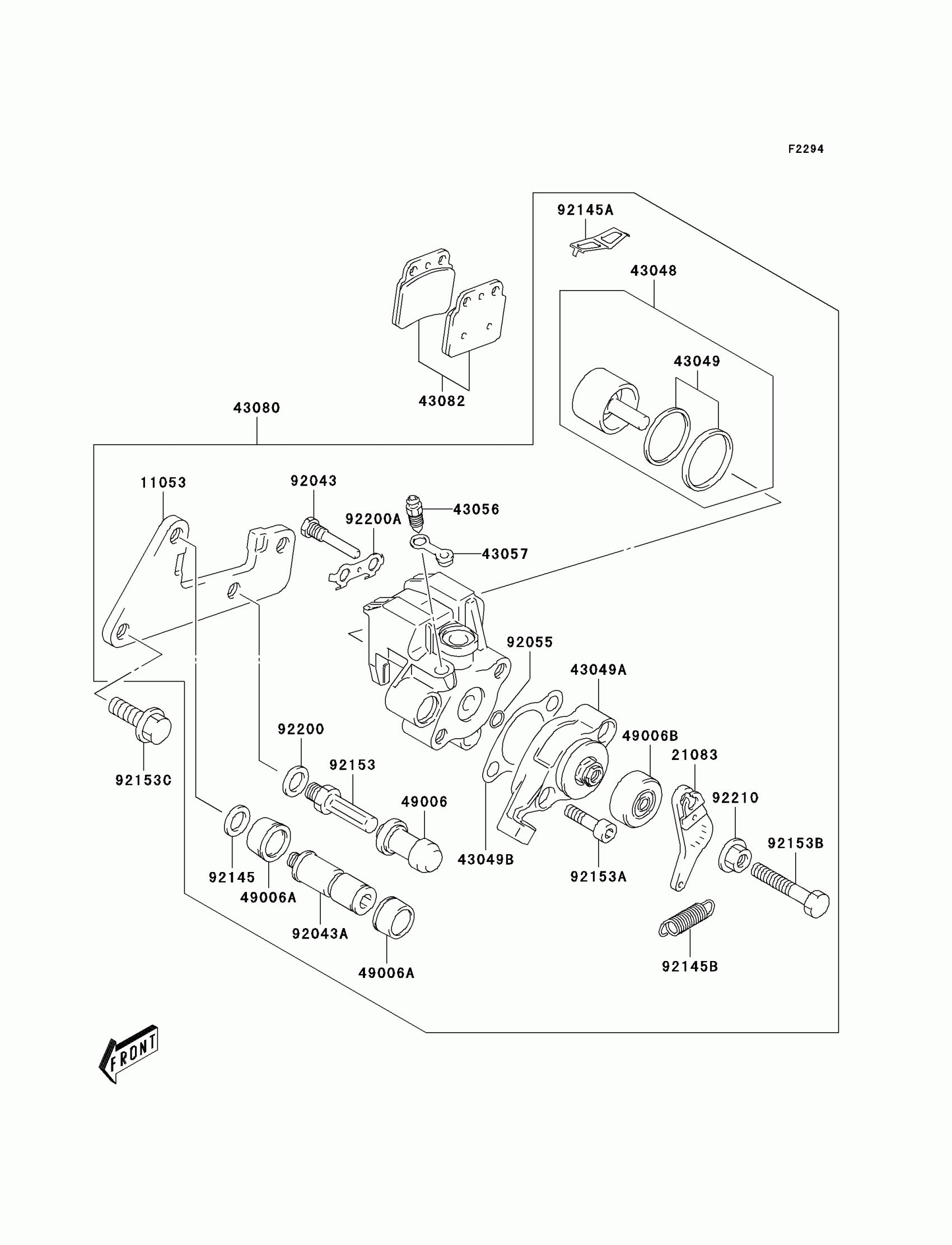

Kawasaki KFX400 Rear Brake Diagram

BRACKET

ARM

PISTON-CALIPER

PACKING,PISTON

PACKING

PACKING

BREATHER-BRAKE

CAP-BREATHER,BLEEDER

CALIPER-SUB-ASSY,RR

PAD-ASSY-BRAKE

BOOT

BOOT

BOOT

PIN

PIN

RING-O

SPRING

SPRING,PAD

SPRING

BOLT

BOLT

BOLT

BOLT

WASHER

WASHER

NUT
