Description

Price

11061

GASKET,8.2X14X1

11061-S020

$2.04

11061A

GASKET,14X20X1.5

11061-S065

$2.53

16115

CAP-OIL FILLER

16115-S003

$12.29

52001

TANK-OIL

52001-S006

$293.33

55020

GUARD,OIL TANK

55020-S014

$15.27

56033

LABEL-MANUAL,ENGINE OIL

56033-S010

$7.06

92026

SPACER

92026-S081

$2.53

92039

RIVET,BLACK

92039-S002-506

$3.72

92043

PIN,CRANKCASE

92043-S024

$2.15

92055

RING-O,D=3.1

92055-S006

$2.51

92055A

RING-O,OIL HOSE

92055-S054

$4.86

92153

BOLT

92153-S015

$2.40

92153A

BOLT

92153-S168

Unavailable

92153B

BOLT,OIL TANK

92153-S288

$3.45

92153C

BOLT,OIL HOSE,14X27

92153-S289

$11.21

92161

DAMPER,OIL TANK

92161-S089

$4.20

92161A

DAMPER,50X30X2

92161-S176

$9.04

92171

CLAMP

92171-S085

$1.92

92191

TUBE,OIL TANK

92191-S063

$21.76

92192

TUBE

92192-S039

$104.05

92192A

TUBE

92192-S040

Unavailable

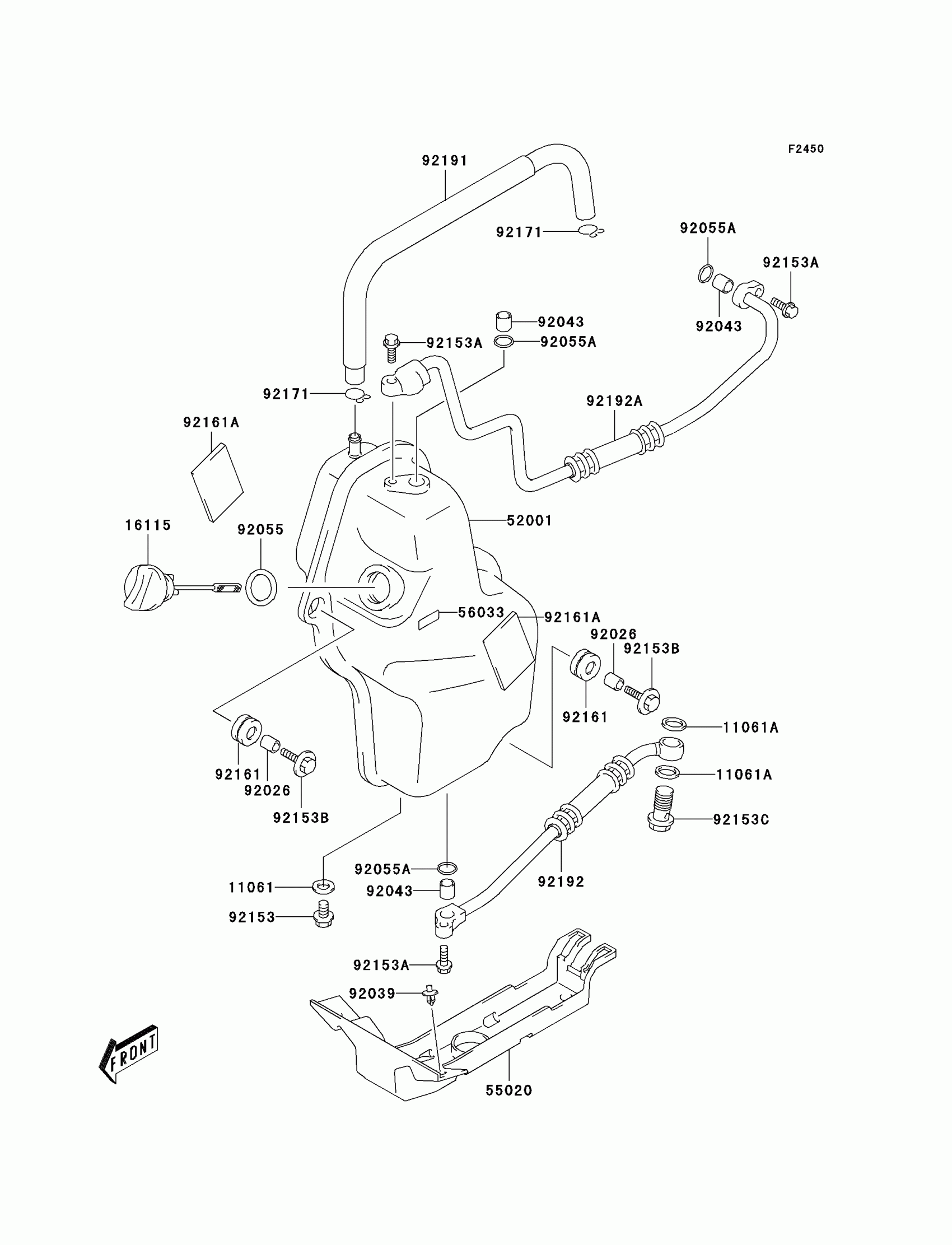

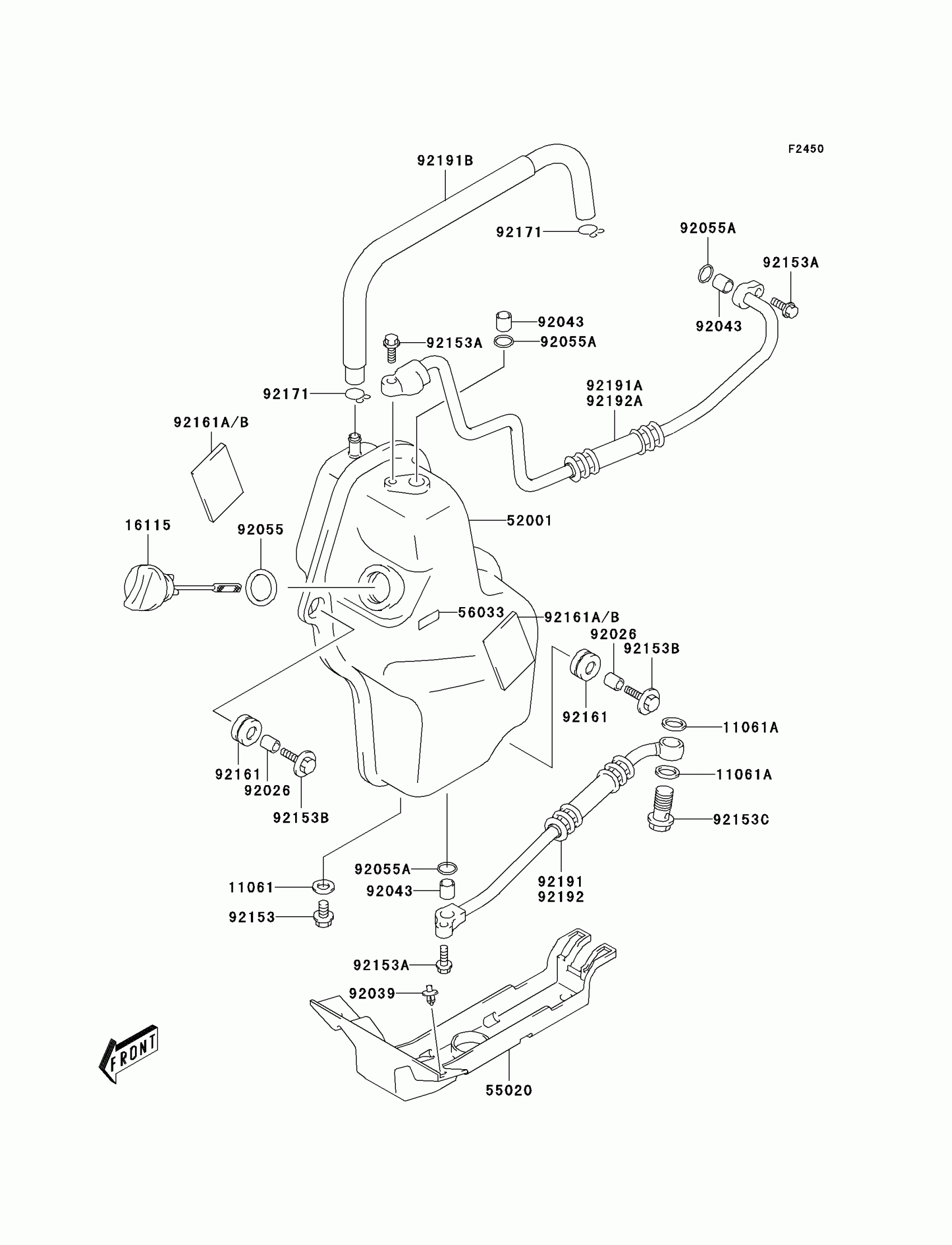

Kawasaki KFX400 Oil Tank Diagram

GASKET,8.2X14X1

GASKET,14X20X1.5

CAP-OIL FILLER

TANK-OIL

GUARD,OIL TANK

LABEL-MANUAL,ENGINE OIL

SPACER

RIVET,BLACK

PIN,CRANKCASE

RING-O,D=3.1

RING-O,OIL HOSE

BOLT

BOLT

BOLT,OIL TANK

BOLT,OIL HOSE,14X27

DAMPER,OIL TANK

DAMPER,50X30X2

CLAMP

TUBE,OIL TANK

TUBE

TUBE
