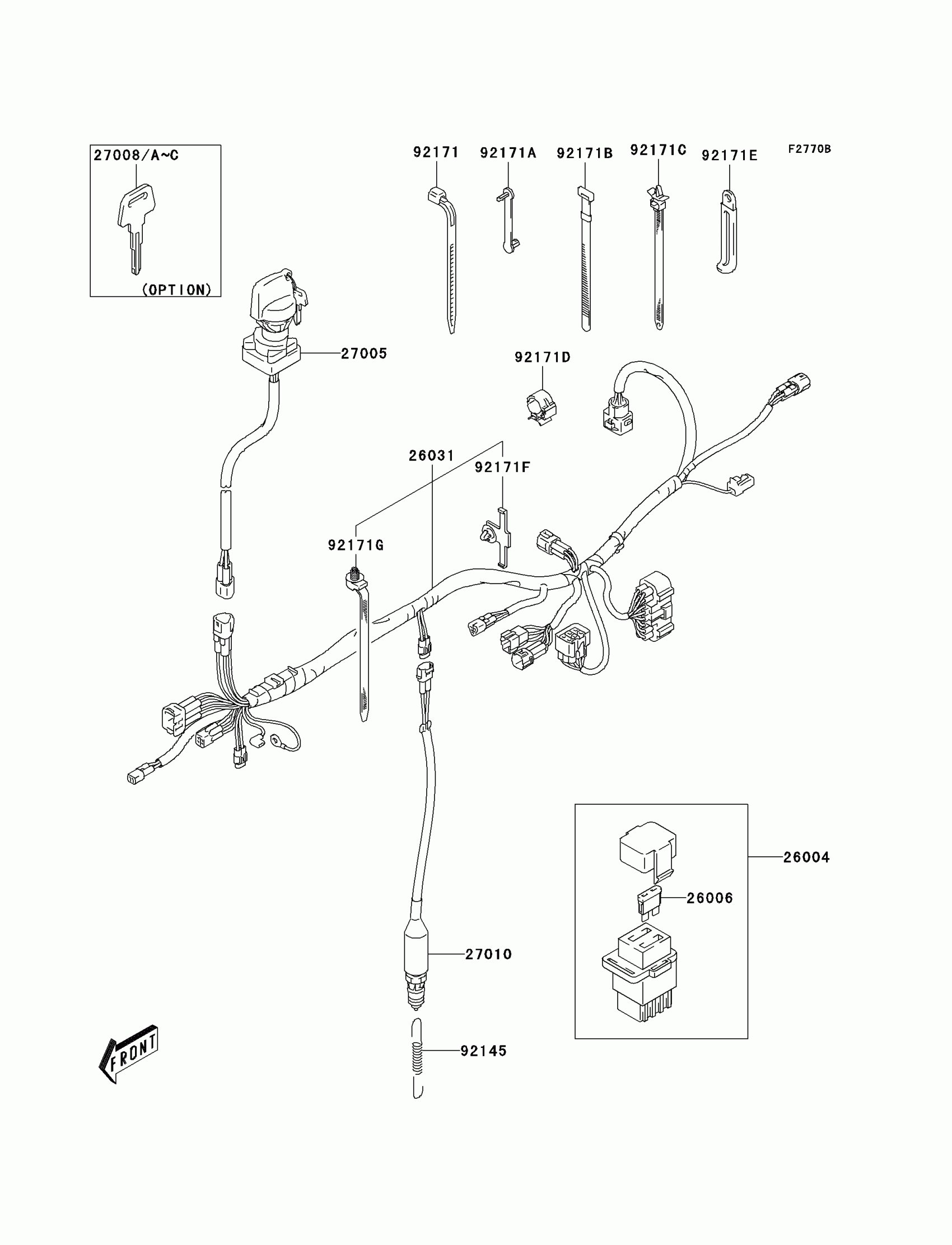

Kawasaki KFX400 Ignition Switch(A3) Diagram

Description

Price

26004

FUSE-ASSY

26004-S003

$23.52

26006

FUSE,10A

26006-S007

$2.04

26031

HARNESS

26031-S014

$235.36

27005

SWITCH-ASSY-IGNITION

27005-S012

$81.47

27008

KEY-LOCK,BLANK,(TYPE:C)

27008-S002

$8.69

27008A

KEY-LOCK,BLANK,(TYPE:D)

27008-S003

$8.69

27008B

KEY-LOCK,BLANK(TYPE:E)

27008-S006

$8.69

27008C

KEY-LOCK,BLANK(TYPE:F)

27008-S007

$8.69

27010

SWITCH,STOP LAMP

27010-S026

$65.80

92145

SPRING,STOP LAMP SWITCH

92145-S150

$7.80

92171

CLAMP,L=125

92171-S014

$2.90

92171A

CLAMP,L=33

92171-S034

$3.20

92171B

CLAMP,L=120

92171-S035

$4.10

92171C

CLAMP,L=90

92171-S051

$2.34

92171D

CLAMP,WIRING HARNESS

92171-S095

$4.10

92171E

CLAMP,L=135

92171-S096

$3.64

92171F

CLAMP

92171-S134

$3.58

92171G

CLAMP

92171-S135

$4.69
