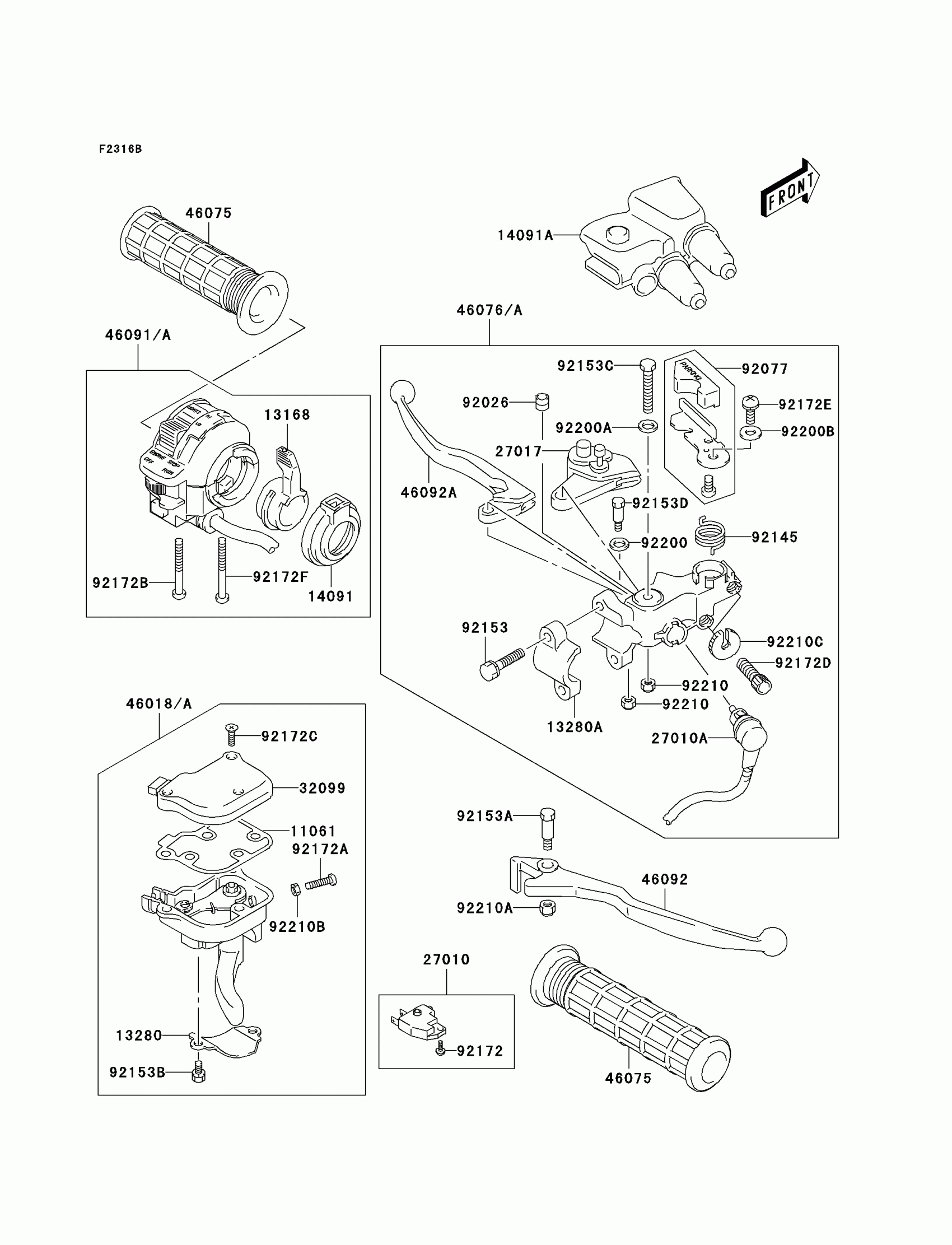

Kawasaki KFX400 Handle Lever(A2/A3) Diagram

#

Description
Price

11061

GASKET

11061-S094

$20.35

13168

LEVER,CHOKE

13168-S005

$12.20

13280

HOLDER

13280-S027

$27.92

13280A

HOLDER

13280-S028

$34.31

14091

COVER,CHOKE

14091-S084

$8.15

14091A

COVER,CLUTCH LEVER

14091-S090

$21.53

27010

SWITCH,STOP

27010-S038

Unavailable

27010A

SWITCH

27010-S041

$55.88

27017

LOCK,PARKING

27017-S002

$68.26

32099

CASE

32099-S010

$46.34

46018A

GRIP-ASSY-THROTTLE

46018-S005

$124.03

46075

GRIP

46075-S009

$15.77

46076A

LEVER-ASSY-GRIP,CLUTCH

46076-S015

Unavailable

46091A

HOUSING-ASSY-CONTROL

46091-S015

$161.08

46092

LEVER-GRIP,FRONT BRAKE

46092-S010

$30.67

46092A

LEVER-GRIP

46092-S011

Unavailable

92026

SPACER

92026-S099

$12.29

92077

KNOB,PARKING

92077-S006

$24.36

92145

SPRING,RETURN

92145-S104

$12.78

92153

BOLT

92153-S002

$1.92

92153A

BOLT,BRAKE LEVER PIVOT

92153-S116

$8.18

92153B

BOLT

92153-S294

$10.48

92153C

BOLT,PARKING LOCK

92153-S295

$11.44

92153D

BOLT

92153-S296

$14.50

92172

SCREW

92172-S053

$2.48

92172A

SCREW

92172-S133

Unavailable

92172B

SCREW

92172-S165

$2.53

92172C

SCREW

92172-S176

$11.44

92172D

SCREW,ADJUSTER

92172-S177

$14.16

92172E

SCREW,PARKING PLATE

92172-S178

$10.52

92172F

SCREW

92172-S182

$2.53

92200

WASHER,PIVOT

92200-S155

$7.68

92200A

WASHER,PARKING LOCK

92200-S157

$8.44

92200B

WASHER

92200-S158

$8.44

92210

NUT

92210-S024

Unavailable

92210A

NUT,LEVER PIVOT

92210-S044

$4.60

92210B

NUT

92210-S065

$1.92

92210C

NUT,ADJUSTER

92210-S108

$36.14
