Description

Price

11061

GASKET,6.4X11.5X0.8

11061-S002

$4.20

14091

COVER

14091-S085

$36.14

51001

TANK-COMP-FUEL

51001-S008

$260.25

51023

TAP-ASSY

51023-S013

Unavailable

51049

CAP-TANK

51049-S004

$43.94

92026

SPACER,6.5X10X9.4

92026-S018

$3.14

92026A

SPACER

92026-S086

$3.07

92153

BOLT

92153-S001

Unavailable

92153A

BOLT,FUEL TANK

92153-S287

$2.76

92161

DAMPER,FUEL TANK,RR

92161-S099

$7.07

92161A

DAMPER,FUEL TANK,FR

92161-S100

$26.24

92161B

DAMPER,FUEL TANK

92161-S101

$8.73

92171

CLAMP,L=145

92171-S015

$3.64

92171A

CLAMP

92171-S026

Unavailable

92172

SCREW

92172-S019

$1.92

92191

TUBE,FUEL TANK BREATHER

92191-S028

$9.59

92192

TUBE,FUEL TANK

92192-S038

$20.07

92192A

TUBE,FUEL

92192-S042

$30.73

92200

WASHER,SEAT HOOK

92200-S133

$2.53

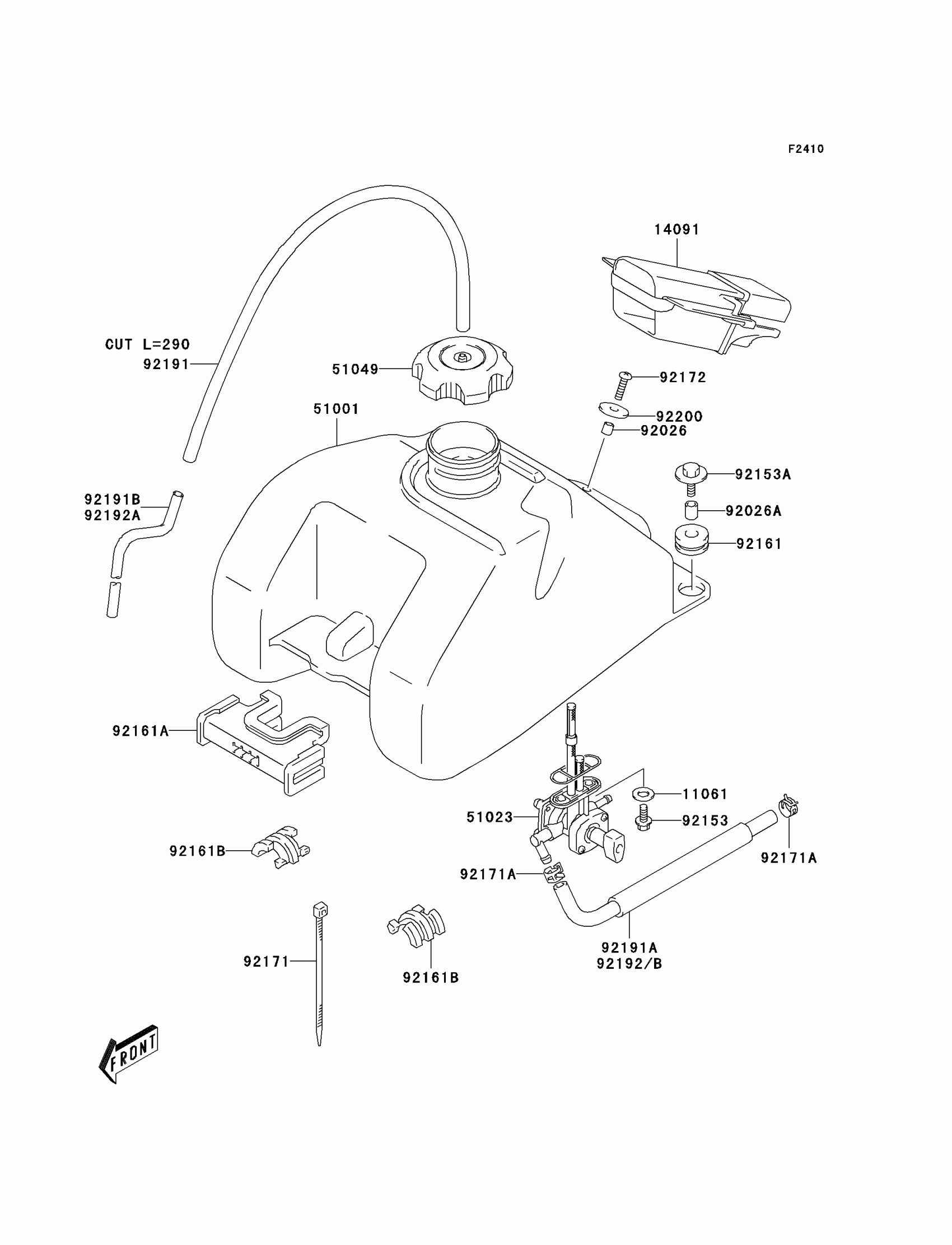

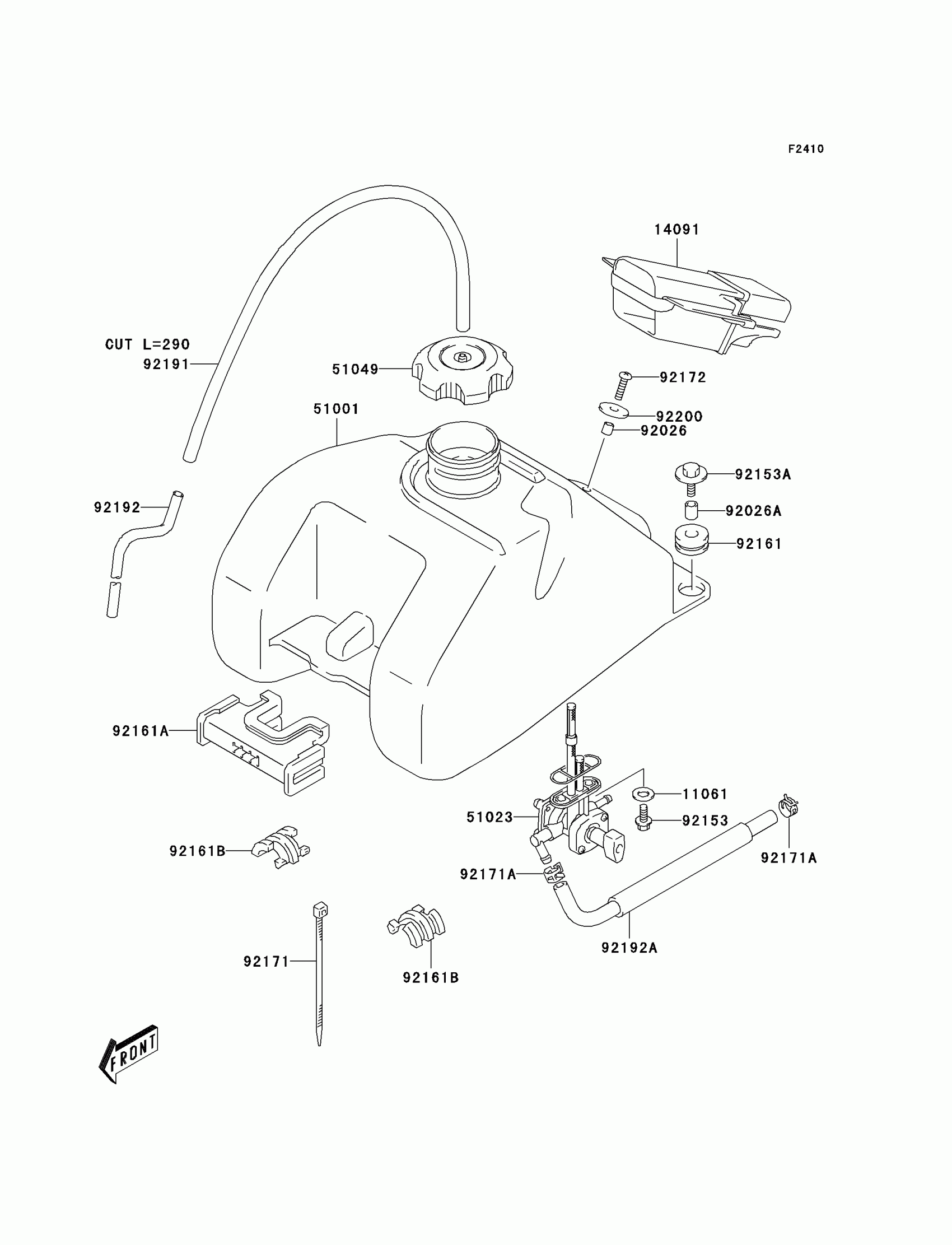

Kawasaki KFX400 Fuel Tank Diagram

GASKET,6.4X11.5X0.8

COVER

TANK-COMP-FUEL

TAP-ASSY

CAP-TANK

SPACER,6.5X10X9.4

SPACER

BOLT

BOLT,FUEL TANK

DAMPER,FUEL TANK,RR

DAMPER,FUEL TANK,FR

DAMPER,FUEL TANK

CLAMP,L=145

CLAMP

SCREW

TUBE,FUEL TANK BREATHER

TUBE,FUEL TANK

TUBE,FUEL

WASHER,SEAT HOOK
