Description

Price

13271

PLATE

13271-S053

$16.26

14091

COVER,FRONT DISC

14091-S185

$18.88

16126

VALVE,WHEEL RIM,TR412

16126-S002

$10.42

39092

PIN-HAIR

39092-S007

Unavailable

41009

TIRE,FR

41009-S012

Unavailable

41025

RIM,FRONT WHEEL,10X5.5AT

41025-S020

$339.82

41034

DRUM-ASSY,FR,BLACK

41034-S005-503

$169.18

41080

DISC,FRONT BRAKE

41080-S005

$114.51

92026

SPACER

92026-S090

$5.50

92026A

SPACER

92026-S097

$14.81

92026B

SPACER

92026-S165

$12.67

92045

BEARING-BALL,FRONT HUB

92045-S036

$28.57

92045A

BEARING-BALL,FRONT HUB

92045-S048

$24.95

92093

SEAL

92093-S033

$13.02

92093A

SEAL

92093-S034

$11.28

92153

BOLT,FRONT DISC COVER

92153-S258

$3.04

92153A

BOLT

92153-S283

$4.60

92200

WASHER,DRIVEN GEAR

92200-S090

$4.29

92200A

WASHER,FRONT AXLE

92200-S099

$1.92

92210

NUT,FRONT AXLE

92210-S075

$3.48

92210A

NUT

92210-S179

$4.29

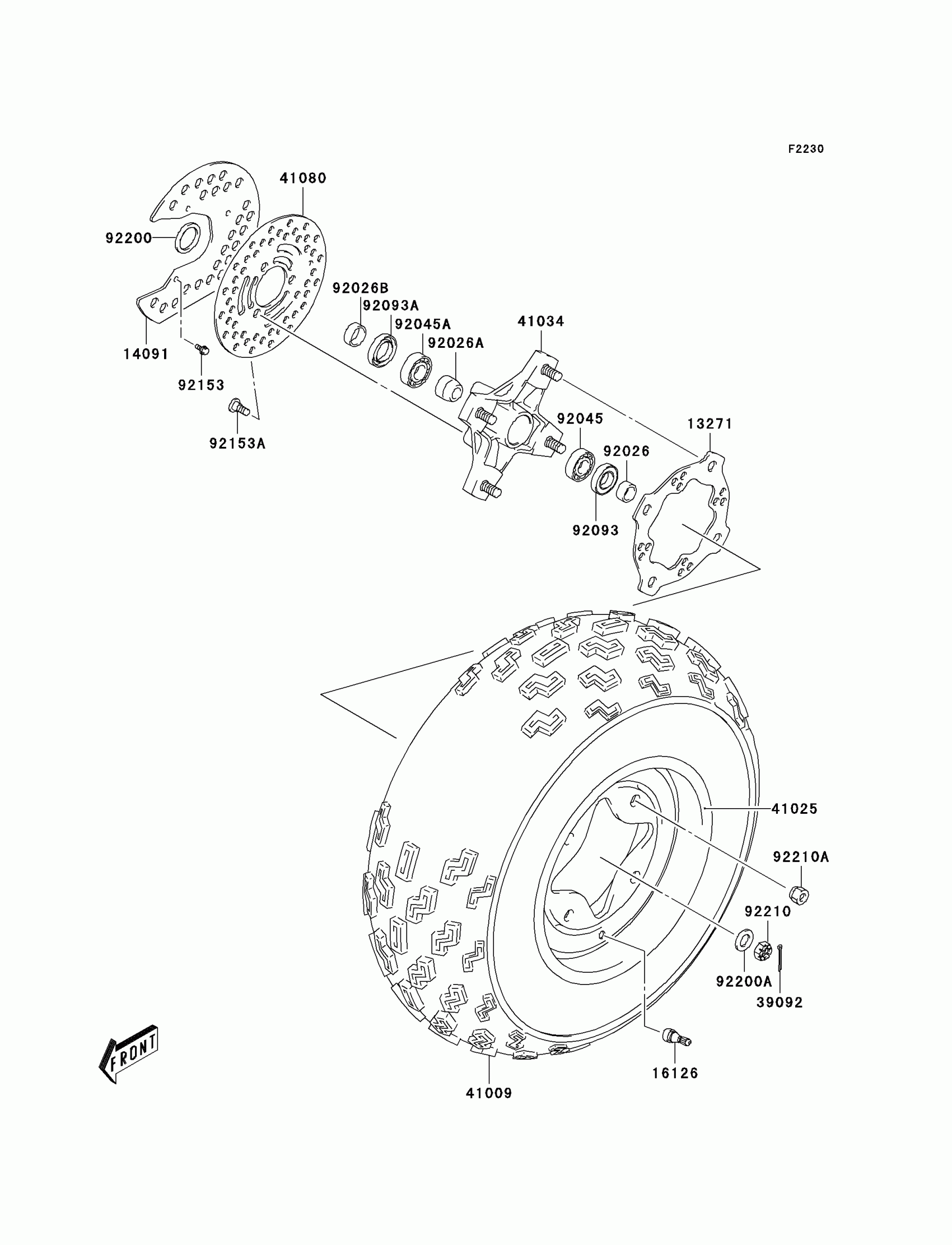

Kawasaki KFX400 Front Hub Diagram

PLATE

COVER,FRONT DISC

VALVE,WHEEL RIM,TR412

PIN-HAIR

TIRE,FR

RIM,FRONT WHEEL,10X5.5AT

DRUM-ASSY,FR,BLACK

DISC,FRONT BRAKE

SPACER

SPACER

SPACER

BEARING-BALL,FRONT HUB

BEARING-BALL,FRONT HUB

SEAL

SEAL

BOLT,FRONT DISC COVER

BOLT

WASHER,DRIVEN GEAR

WASHER,FRONT AXLE

NUT,FRONT AXLE

NUT
