Description

Price

11053

BRACKET,RH

11053-S017

$44.85

11053A

BRACKET,LH

11053-S018

$40.98

43041

CALIPER-ASSY,FR,RH

43041-S014

$189.29

43041A

CALIPER-ASSY,FR,LH

43041-S015

$189.29

43048

PISTON-CALIPER

43048-S004

$33.00

43049

PACKING,PISTON

43049-S007

$11.44

43056

BREATHER-BRAKE

43056-S002

$9.32

43057

CAP-BREATHER,BLEEDER

43057-S002

$6.55

43082

PAD-ASSY-BRAKE,FR,RH

43082-S013

$54.33

43082A

PAD-ASSY-BRAKE,FR,LH

43082-S014

$54.33

49006

BOOT

49006-S007

$9.41

49006A

BOOT

49006-S021

$7.32

92043

PIN

92043-S016

$16.61

92043A

PIN

92043-S042

$18.86

92066

PLUG,DUST

92066-S035

$6.49

92145

SPRING

92145-S105

$3.51

92145A

SPRING,PAD

92145-S106

$11.15

92153

BOLT

92153-S297

$9.14

92153A

BOLT

92153-S470

$4.29

92180

SHIM,RH

92180-S043

$8.36

92180A

SHIM,LH

92180-S044

$9.76

92200

WASHER

92200-S159

$2.25

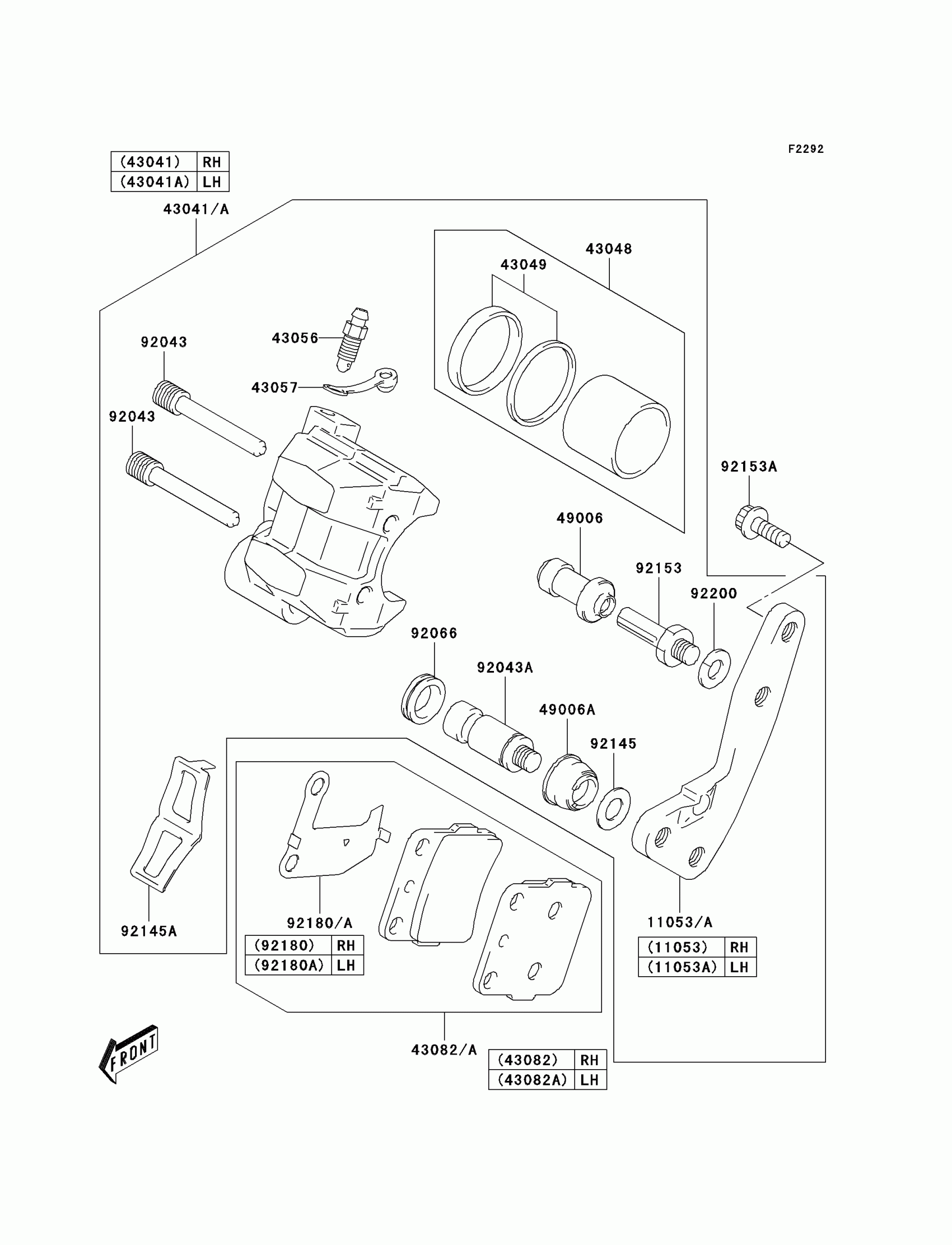

Kawasaki KFX400 Front Brake Diagram

BRACKET,RH

BRACKET,LH

CALIPER-ASSY,FR,RH

CALIPER-ASSY,FR,LH

PISTON-CALIPER

PACKING,PISTON

BREATHER-BRAKE

CAP-BREATHER,BLEEDER

PAD-ASSY-BRAKE,FR,RH

PAD-ASSY-BRAKE,FR,LH

BOOT

BOOT

PIN

PIN

PLUG,DUST

SPRING

SPRING,PAD

BOLT

BOLT

SHIM,RH

SHIM,LH

WASHER
