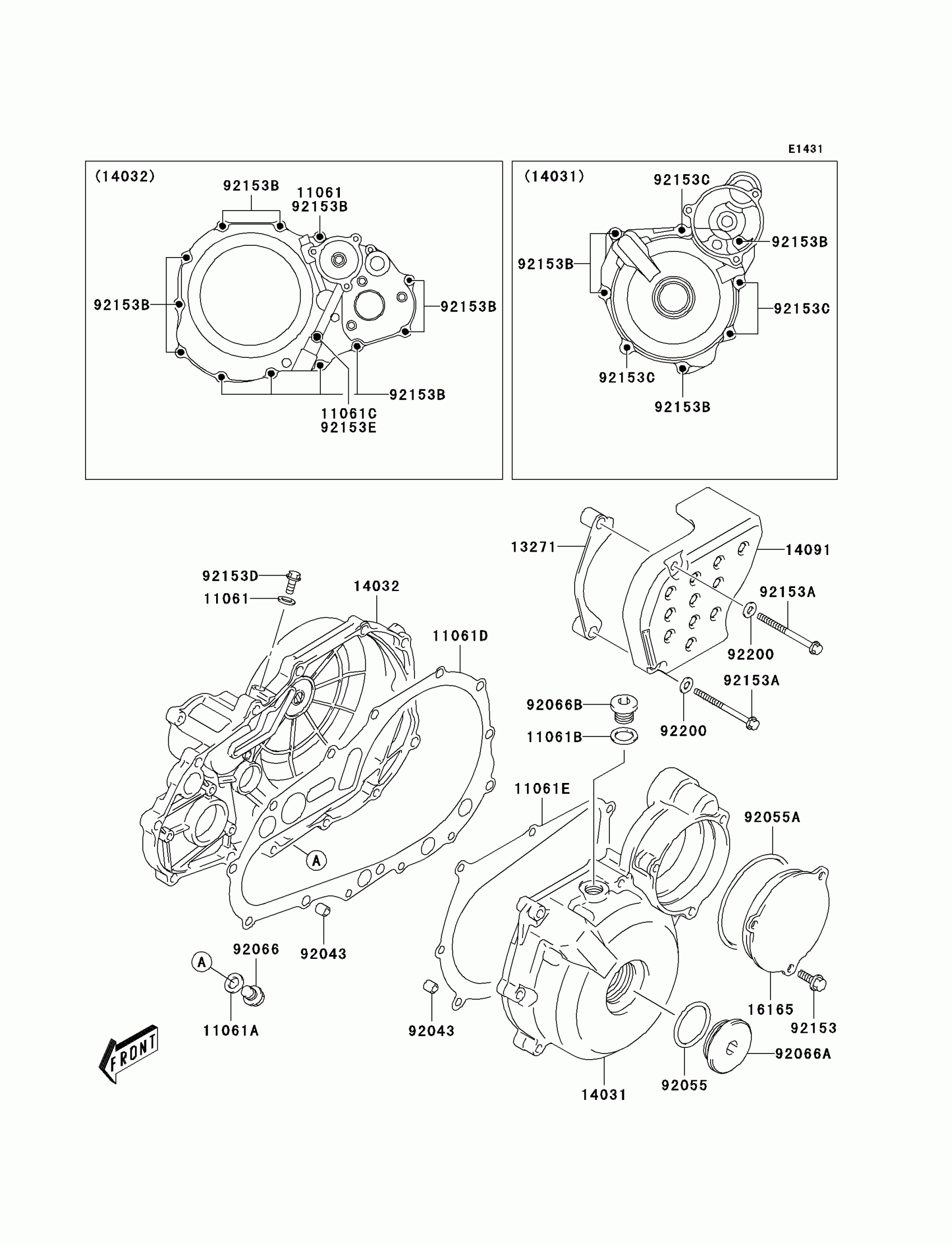

Kawasaki KFX400 Engine Cover(s) Diagram
#
Description
Price
11061
GASKET,5.8X13X1.2
11061-S001
$2.53
11061A
GASKET,12X16X2
11061-S005
$2.09
11061B
GASKET,13.8X18.8X0.4
11061-S006
$1.09
11061C
GASKET,8.2X14X1
11061-S020
$2.04
11061D
GASKET,CLUTCH COVER
11061-S071
$18.01
11061E
GASKET,MAGNETO COVER
11061-S072
$8.03
13271
PLATE
13271-S048
$18.21
14031
COVER-GENERATOR
14031-S010
$317.11
14032
COVER-CLUTCH
14032-S014
$263.59
14091
COVER
14091-S080
$68.58
16165
SEPARATOR,STARTER IDLE GEAR
16165-S010
$36.18
92043
PIN
92043-S001
$1.92
92055
RING-O,32.7X3.1
92055-S056
$2.76
92055A
RING-O,69.6X2.6
92055-S057
$26.89
92066
PLUG
92066-S001
$3.34
92066A
PLUG,CRANKSHAFT HOLE,W.SILVER
92066-S033-515
$15.41
92066B
PLUG
92066-S052
$4.88
92153
BOLT
92153-S001
Unavailable
92153A
BOLT
92153-S007
$2.40
92153B
BOLT
92153-S062
$2.40
92153C
BOLT
92153-S128
$2.40
92153D
BOLT
92153-S144
Unavailable
92153E
BOLT,8X12
92153-S466
$3.92
92200
WASHER,SPROCKET COVER
92200-S132
$2.64
