Description

Price

11061

GASKET,12X16X2

11061-S005

$2.09

11061A

GASKET,10X14X3.6

11061-S021

$2.42

14001

SET-CRANKCASE

14001-S012

Unavailable

16035

JET-AIR

16035-S003

$15.41

16165

SEPARATOR,CRANKCASE OIL

16165-S007

$3.28

16165A

SEPARATOR,CRANKCASE OIL

16165-S008

$4.77

32154

PIPE

32154-S005

$20.55

32154A

PIPE

32154-S006

$28.64

92026

SPACER

92026-S107

$15.30

92043

PIN

92043-S003

$2.64

92055

RING-O,ID:4.0)

92055-S002

$2.42

92055A

RING-O,ID:4.8

92055-S003

$2.53

92055B

RING-O,6.8X1.9

92055-S053

$1.74

92066

PLUG

92066-S009

$5.03

92066A

PLUG,OIL DRAIN

92066-S053

$4.49

92153

BOLT

92153-S128

$2.40

92153A

BOLT

92153-S247

$2.70

92153B

BOLT,10X100

92153-S269

$8.03

92153C

BOLT,10X180

92153-S270

Unavailable

92172

SCREW,6X12

92172-S033

$2.54

92210

NUT

92210-S015

$5.75

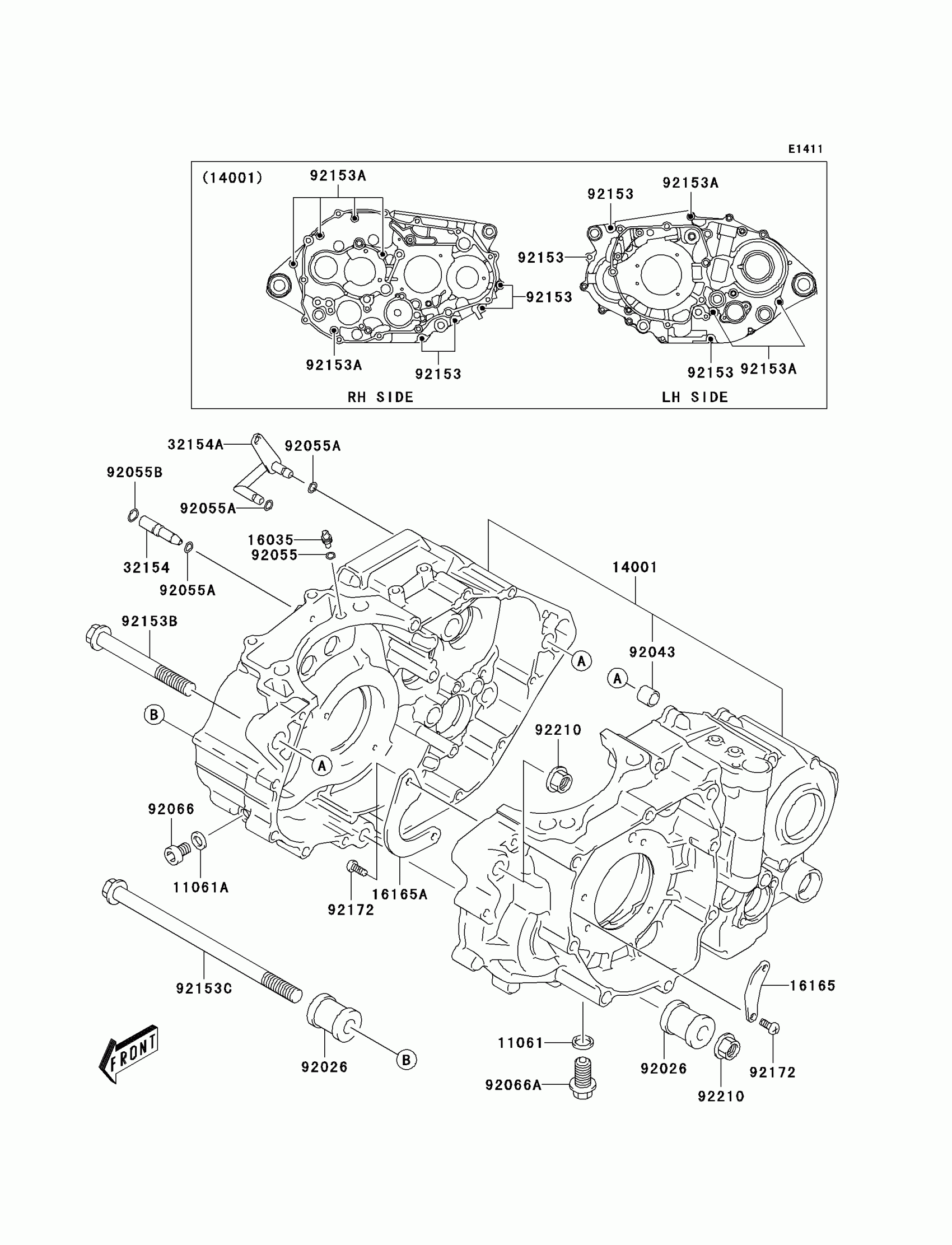

Kawasaki KFX400 Crankcase Diagram

GASKET,12X16X2

GASKET,10X14X3.6

SET-CRANKCASE

JET-AIR

SEPARATOR,CRANKCASE OIL

SEPARATOR,CRANKCASE OIL

PIPE

PIPE

SPACER

PIN

RING-O,ID:4.0)

RING-O,ID:4.8

RING-O,6.8X1.9

PLUG

PLUG,OIL DRAIN

BOLT

BOLT

BOLT,10X100

BOLT,10X180

SCREW,6X12

NUT
