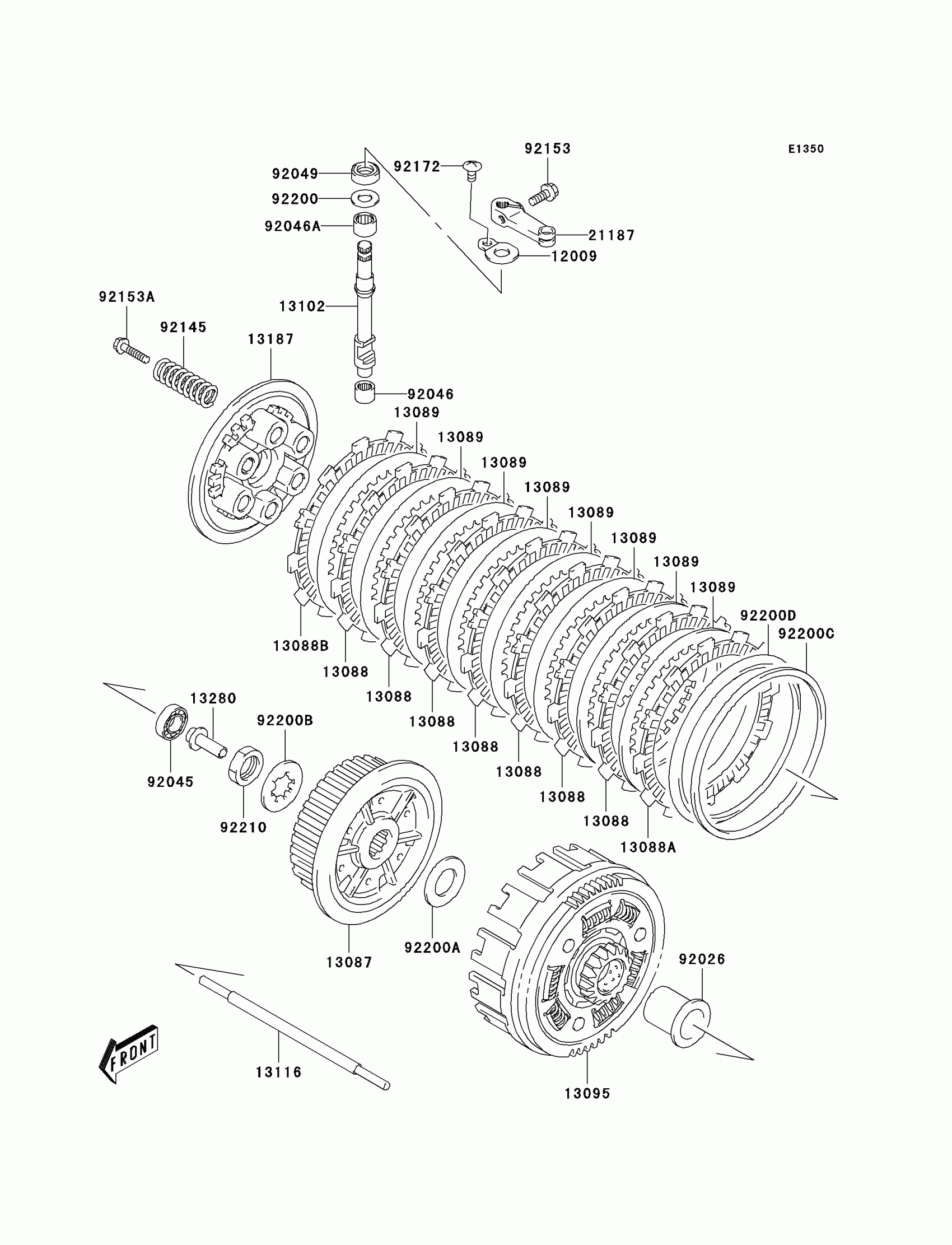

Kawasaki KFX400 Clutch Diagram

#

Description
Price

12009

RETAINER-VALVE SPRING

12009-S003

$5.31

13087

HUB-CLUTCH

13087-S007

$124.03

13088

PLATE-FRICTION,NO.1

13088-S003

$20.82

13088A

PLATE-FRICTION,NO.2

13088-S004

$20.82

13088B

PLATE-FRICTION

13088-S009

$17.16

13089

PLATE-CLUTCH

13089-S010

$11.97

13095

HOUSING-COMP-CLUTCH

13095-S011

$404.55

13102

RELEASE-COMP-CLUTCH

13102-S003

$49.97

13116

ROD-PUSH

13116-S003

$22.81

13187

PLATE-CLUTCH OPERATING

13187-S006

$68.48

13280

HOLDER,CLUTCH PUSH

13280-S025

$23.37

21187

ARM-ASSY,CLUTCH RELEASE

21187-S004

$32.64

92026

SPACER

92026-S094

$46.34

92045

BEARING-BALL,12X28X8

92045-S004

$21.15

92046

BEARING-NEEDLE,CAM SHAFT,LOW

92046-S014

$15.39

92046A

BEARING-NEEDLE,CAM SHAFT,UPP

92046-S015

$14.47

92049

SEAL-OIL,10X20X6

92049-S018

$9.03

92145

SPRING,CLUTCH

92145-S184

$8.78

92153

BOLT

92153-S001

Unavailable

92153A

BOLT

92153-S469

$6.10

92172

SCREW

92172-S092

Unavailable

92200

WASHER,10X20X1.0

92200-S061

$2.70

92200A

WASHER,CLUTCH

92200-S131

$6.17

92200B

WASHER,CLUTCH

92200-S144

$2.20

92200C

WASHER

92200-S185

$13.20

92200D

WASHER

92200-S186

$21.07

92210

NUT,CLUTCH

92210-S103

$4.56
