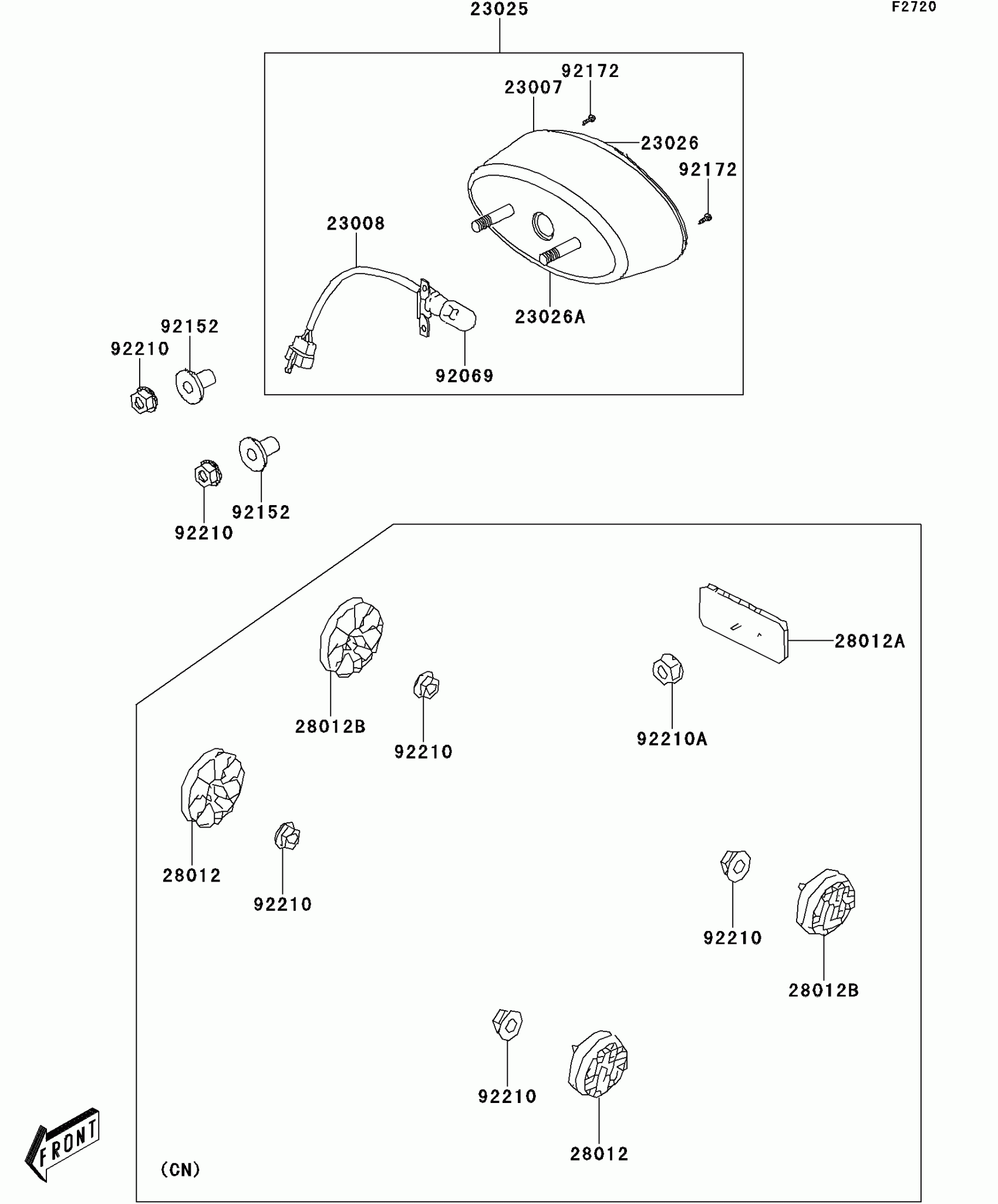

Kawasaki KFX®90 Taillight(s) Diagram

Description

Price

23007

LENS-COMP,TAIL LAMP

23007-Y001

$27.83

23008

SOCKET-ASSY,TAIL LAMP

23008-Y001

Unavailable

23025

LAMP-TAIL

23025-Y001

Unavailable

23026

LENS,TAIL LAMP

23026-Y001

$22.67

23026A

LENS,LICENSE

23026-Y002

$4.60

28012

REFLECTOR-REFLEX

28012-Y002

$7.87

28012A

REFLECTOR-REFLEX

28012-Y003

$6.61

28012B

REFLECTOR-REFLEX

28012-Y004

$7.87

92069

BULB

92069-Y001

$6.43

92152

COLLAR

92152-Y013

$1.09

92172

SCREW,4X16

92172-Y026

$1.02

92210

NUT,6MM

92210-Y027

$0.79

92210A

NUT,FLANGE,5MM

92210-Y033

$0.74

92210

NUT,6MM

92210-Y027

$0.79
