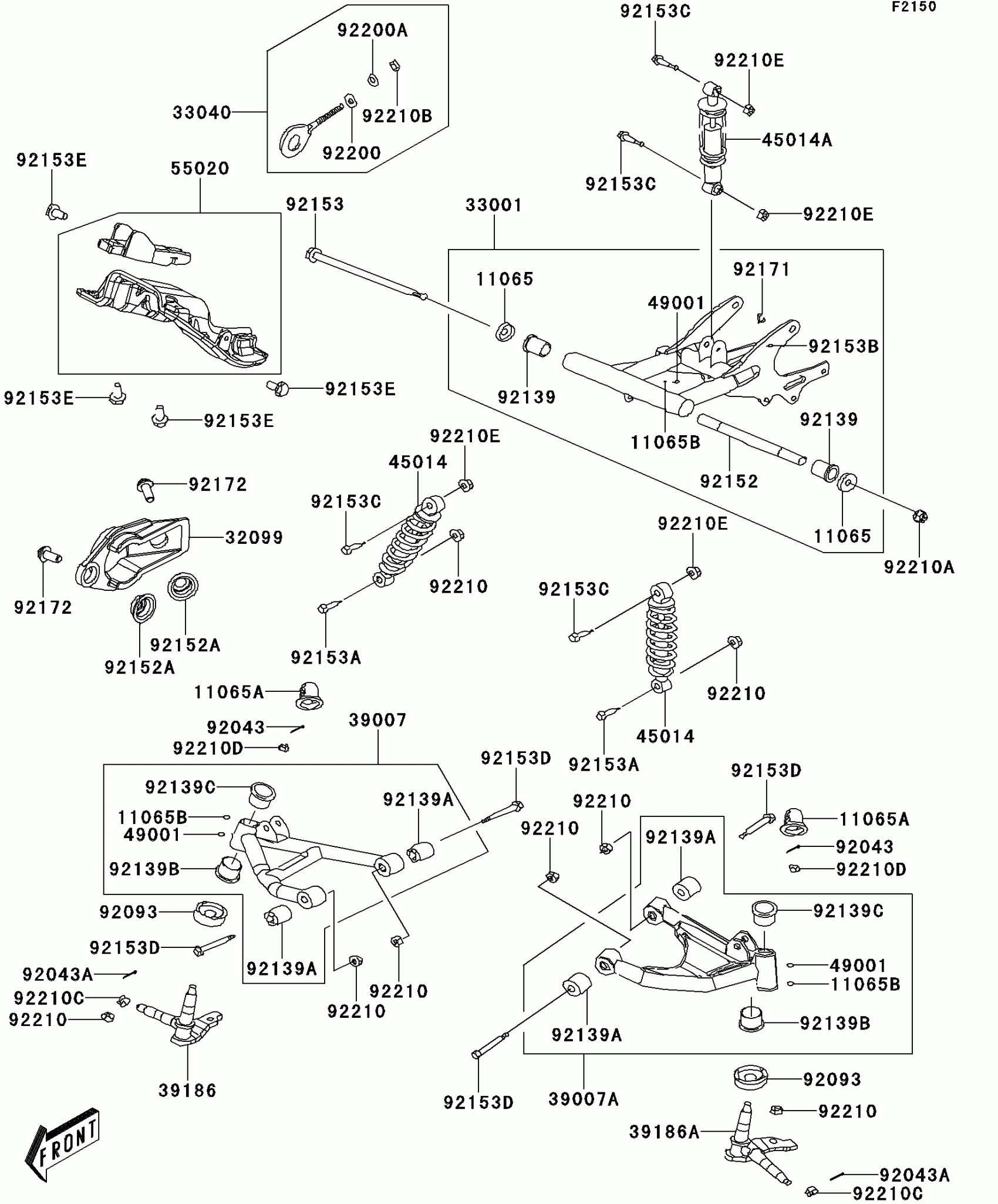

Kawasaki KFX®90 Suspension Diagram

#

Description
Price

11065

CAP

11065-Y003

$5.18

11065A

CAP

11065-Y004

$3.54

11065B

CAP,GREASE NIPPLE

11065-Y005

$0.76

32099

CASE,KICK STARTER

32099-Y001

$14.96

33001

ARM-COMP-SWING

33001-Y001

$131.81

33040

ADJUSTER-CHAIN

33040-Y001

$5.69

39007

ARM-SUSP,RH

39007-Y001

$92.47

39007A

ARM-SUSP,LH

39007-Y002

$92.47

39186

KNUCKLE,RH

39186-Y001

$69.34

39186A

KNUCKLE,LH

39186-Y002

$69.34

45014

SHOCKABSORBER,FR,WHITE

45014-Y001-937

Unavailable

45014A

SHOCKABSORBER,RR,WHITE

45014-Y002-937

$164.20

49001

NIPPLE-GREASE

49001-Y001

$6.26

55020

GUARD

55020-Y001

Unavailable

92043

PIN,2X20

92043-Y008

$0.79

92043A

PIN,3X25

92043-Y009

$0.76

92093

SEAL

92093-Y007

$3.70

92139

BUSHING,RR

92139-Y003

$9.49

92139A

BUSHING,SUSPENSION ARM

92139-Y004

$6.23

92139B

BUSHING,SUSPENSION ARM

92139-Y005

$6.23

92139C

BUSHING,SUSPENSION ARM

92139-Y006

$6.23

92152

COLLAR

92152-Y010

$18.84

92152A

COLLAR

92152-Y011

$1.63

92153

BOLT

92153-Y011

$19.03

92153A

BOLT,10X40

92153-Y016

$4.27

92153B

BOLT,FLANGE,6X10

92153-Y022

$0.79

92153C

BOLT,FLANGE,10X40

92153-Y041

$2.77

92153D

BOLT,FLANGE,10X50

92153-Y042

$3.17

92153E

BOLT,6X16

92153-Y064

$1.02

92171

CLAMP,BRAKE HOSE

92171-Y005

$3.12

92172

SCREW,6X12

92172-Y016

Unavailable

92200

WASHER,8MM

92200-Y016

$0.76

92200A

WASHER,8MM

92200-Y019

$0.79

92210

NUT,10MM

92210-Y009

$3.12

92210A

NUT,14MM

92210-Y012

$7.28

92210B

NUT,8MM

92210-Y018

$0.76

92210C

NUT,12MM

92210-Y023

$3.94

92210D

NUT,10MM

92210-Y024

$2.98

92210E

NUT,10MM

92210-Y029

$1.58
